Did you know that moisture in compressed air can lead to costly equipment damage and product defects? Maintaining high-quality compressed air is crucial for many industries. Adsorption Air Dryer play a vital role in improving air quality by removing moisture effectively. In this post, you'll learn how adsorption dryers work, their benefits, and why moisture-free compressed air is essential for your operations.
An adsorption dryer is a device designed to remove moisture from compressed air. It uses a special material called a desiccant, which attracts and holds water vapor. Common desiccants include silica gel, activated alumina, and molecular sieves. Unlike refrigerated dryers that cool air to condense moisture, adsorption dryers physically trap moisture, allowing them to achieve much lower pressure dew points—sometimes as low as -70°C. This makes them ideal for applications requiring extremely dry air, such as pharmaceuticals, electronics manufacturing, and automotive painting.
Adsorption dryers consist of several critical parts that work together to ensure dry air output:

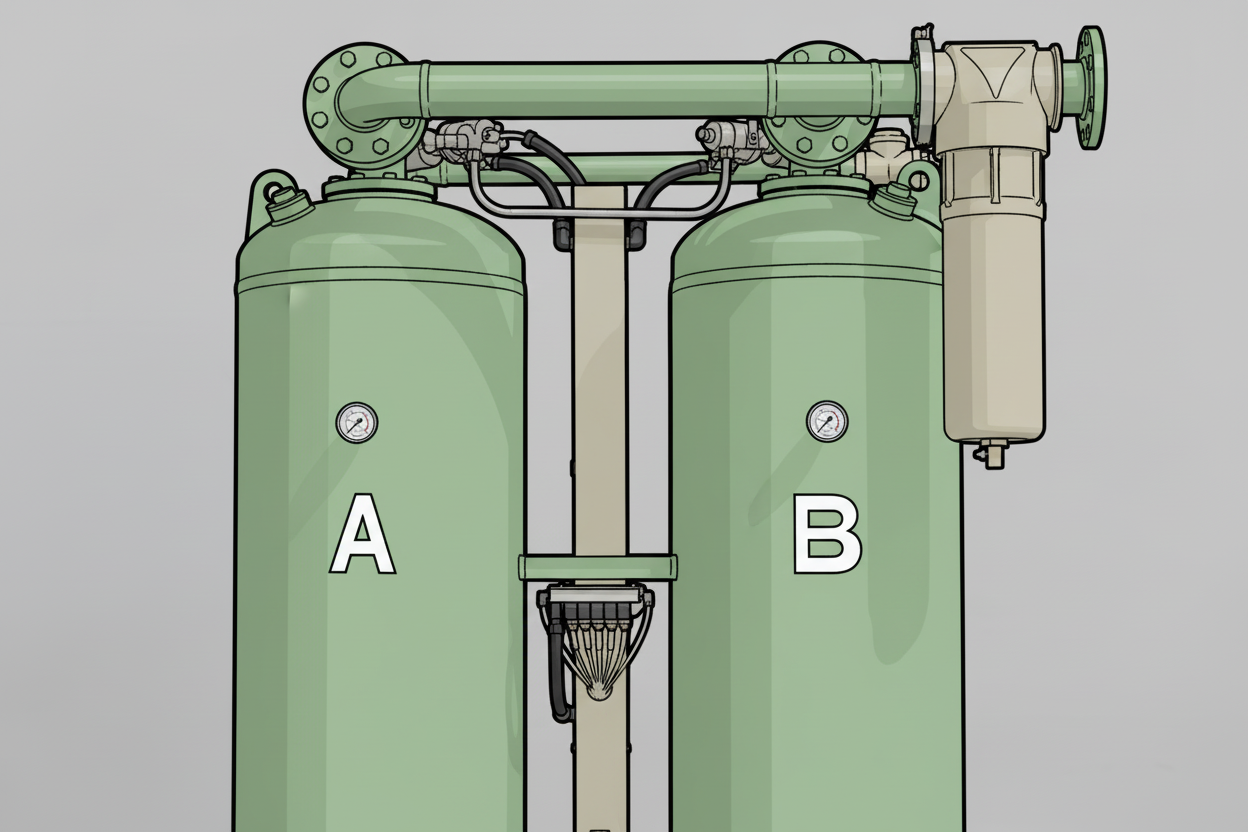

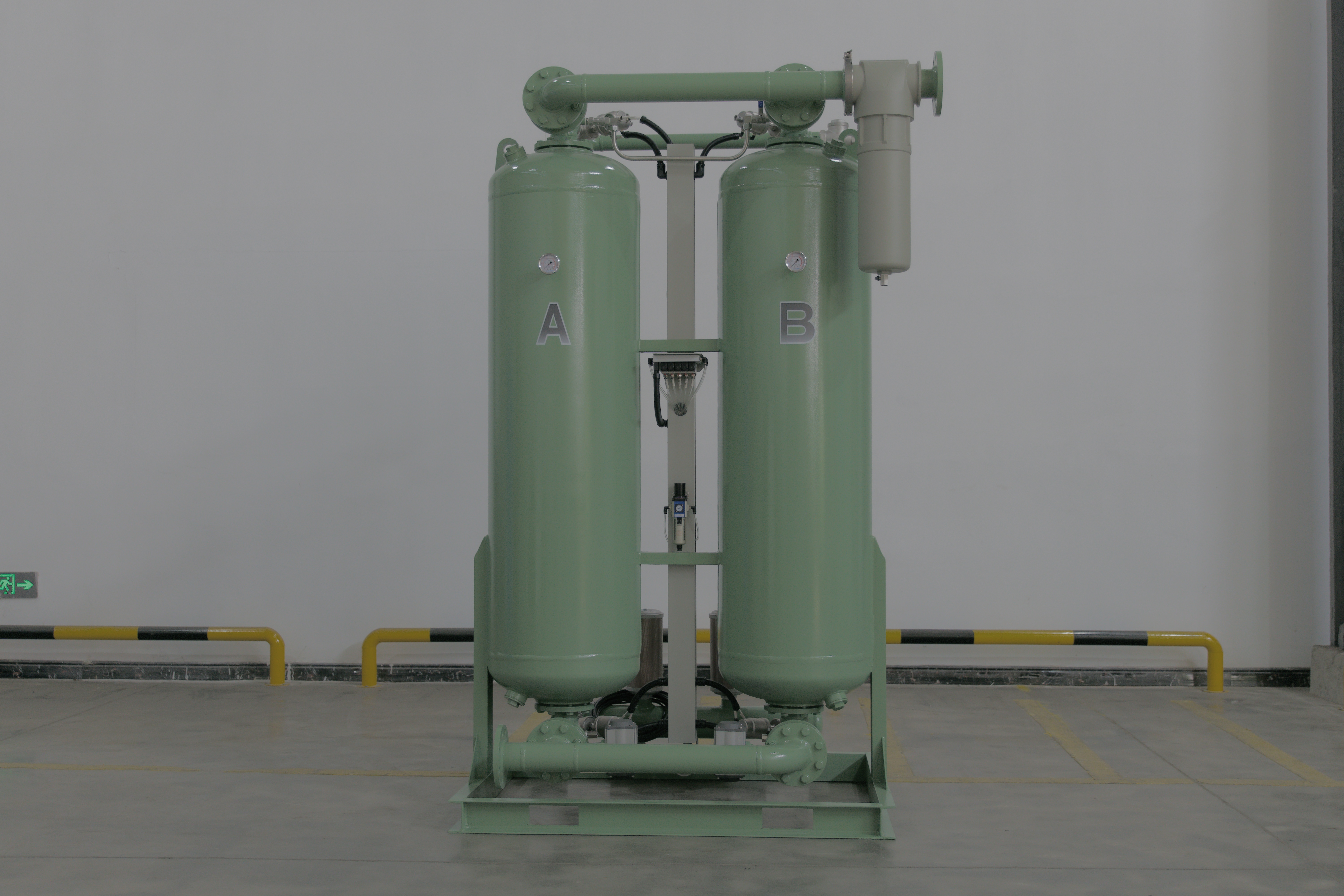

Twin Towers (Vessels): Two chambers filled with desiccant material. While one tower dries the compressed air, the other regenerates by releasing moisture.
Desiccant Material: The heart of the system, it adsorbs moisture from the air passing through.
Valves and Controls: Manage airflow and switch between drying and regeneration cycles.
Filters: Remove oil and particles before air reaches the desiccant, protecting it from contamination.
Condensate Drain: Removes collected moisture from the system to prevent buildup.
Adsorption dryers operate on a two-phase cycle involving drying and regeneration:
Drying Phase: Compressed air flows through one tower filled with desiccant. The desiccant captures moisture, lowering the air’s pressure dew point to very low levels, often below -40°C.
Regeneration Phase: Simultaneously, the other tower undergoes regeneration. A small portion of the dry compressed air expands and passes through the saturated desiccant, carrying moisture out of the system and venting it to the atmosphere.
The towers alternate roles periodically, ensuring continuous delivery of dry air. This cycle prevents moisture from entering the compressed air network, protecting equipment and improving product quality.
Tip: Regularly check and maintain valves and desiccant to ensure adsorption dryers operate efficiently and deliver consistently dry air.
Adsorption dryers come in several types, each suited for different industrial needs and energy efficiency goals. Understanding these types helps you choose the right dryer for your compressed air system.
Heatless adsorption dryers use a portion of the dry compressed air to regenerate the desiccant. Typically, about 15% of the dried air is diverted and expanded at atmospheric pressure to remove moisture from the saturated desiccant. This type is simple, reliable, and cost-effective upfront but consumes more compressed air during regeneration, which can increase operational costs.
Key Features:
No external heat source needed.
Uses 10-15% of dry air for regeneration.
Suitable for small to medium systems.
Lower initial cost, higher running cost.
Heated adsorption dryers apply external heat to regenerate the desiccant, reducing compressed air loss. The heat drives off moisture from the desiccant more efficiently. These dryers use less purge air compared to heatless types, typically around 6-8%, improving energy efficiency.
Key Features:
External heater regenerates desiccant.
Lower purge air consumption than heatless dryers.
Better energy efficiency.
Ideal for medium to large systems.
Blower purge dryers use a blower to supply ambient air heated externally for desiccant regeneration. This method avoids using compressed air for regeneration, saving significant amounts of compressed air and energy. The purge air passes through a heater, then through the desiccant bed, removing moisture before being vented.
Key Features:
Uses ambient air, not compressed air, for regeneration.
Purge air heated by an external heater.
Lowest purge air consumption (2-3%).
Higher initial cost but lower operating cost.
Suitable for large, continuous-duty applications.
HOC dryers use the heat generated during compression to regenerate the desiccant. This process eliminates external energy sources for regeneration, making it highly energy-efficient. However, HOC dryers are typically compatible only with oil-free compressors because oil contamination can damage the desiccant.
Key Features:
Regenerates desiccant using compressor heat.
No external energy or purge air needed.
Best for oil-free compressor systems.
High energy efficiency and low operating cost.
Suitable for continuous operation.
Tip: Choose an adsorption dryer type based on your system size, energy costs, and air quality needs to optimize performance and reduce operating expenses.
Adsorption dryers excel at producing compressed air with very low moisture content. They can achieve pressure dew points as low as -40°C or even -70°C, far surpassing refrigerated dryers. This extremely dry air is essential in industries where moisture can cause serious problems, such as pharmaceuticals, electronics, and automotive painting. By removing almost all water vapor, adsorption dryers prevent condensation inside pipelines and equipment, which can freeze or cause malfunctions in cold or sensitive environments.
Moisture in compressed air systems can lead to corrosion inside pipes, valves, and pneumatic tools. Over time, rust buildup restricts airflow, increases pressure drop, and causes equipment to fail prematurely. Adsorption dryers protect your system by removing moisture before it can condense and cause damage. This results in fewer repairs, less downtime, and longer equipment life. Additionally, dry air reduces the risk of contamination in processes, keeping machinery running smoothly and reliably.
In many manufacturing processes, the quality of the final product depends on the purity and dryness of compressed air. Moisture can introduce defects like paint blistering in automotive finishes or spoilage in food packaging. Adsorption dryers ensure that the air used in these processes is free from moisture, helping maintain consistent product quality. Industries such as pharmaceuticals and electronics benefit greatly, as dry air prevents contamination and guarantees product integrity.
Tip: Regularly monitor your adsorption dryer's pressure dew point to ensure it consistently delivers dry air and protects your equipment and products effectively.
Pressure Dew Point (PDP) is the temperature at which moisture in compressed air begins to condense into liquid at the system’s operating pressure. When compressed air cools to this temperature, water vapor turns into droplets, causing moisture problems. The lower the PDP, the drier the compressed air. Adsorption dryers are designed to achieve very low PDPs, often reaching -40°C or even -70°C, far beyond what refrigerated dryers can do. This low dew point means almost no moisture remains in the air, protecting equipment and processes sensitive to water.
PDP directly impacts the quality and reliability of compressed air systems. If the PDP is too high, moisture condenses inside pipes, valves, and tools, leading to corrosion, rust, and blockages. This moisture can also freeze in cold environments, causing system failures. High PDP air risks equipment malfunction, increased maintenance costs, and product defects. For example, in paint spraying, moisture causes blistering and poor finishes. In electronics manufacturing, it can damage sensitive components. Maintaining a low PDP ensures dry air that prevents these issues, improving system uptime and product quality.
Adsorption dryers remove moisture by adsorbing water vapor onto desiccant material, lowering the PDP to extremely low levels. The twin-tower design allows continuous drying and regeneration, ensuring steady air quality. Different types of adsorption dryers achieve varying PDP levels depending on their design and regeneration method. Heatless dryers typically reach around -40°C PDP, while heated and blower purge dryers can achieve even lower dew points with better energy efficiency. Heat of Compression dryers also provide low PDP by regenerating desiccant using compressor heat.
Selecting the right adsorption dryer type helps meet specific PDP requirements for your application. Monitoring PDP regularly ensures the dryer performs as expected and the compressed air remains dry. Proper installation and maintenance, like replacing desiccant on schedule, keep PDP low and system reliable.
Tip: Regularly monitor your compressed air system’s pressure dew point to detect moisture issues early and maintain optimal dryer performance.
Installing an adsorption dryer correctly is key to its performance and longevity. Always position the dryer after the air compressor, air receiver tank, and pre-filters. This setup ensures the air entering the dryer is already free from oil and large particles, protecting the desiccant from contamination. Use high-quality filters upstream to trap oil, dirt, and water droplets before they reach the dryer.
Ensure the dryer is installed in a clean, dry, and well-ventilated area. Avoid locations with extreme temperatures or exposure to direct sunlight, as these conditions can affect the desiccant's efficiency. Provide enough space for easy access to valves, controls, and desiccant chambers to facilitate maintenance.
Connect the dryer to the compressed air system using properly sized piping to prevent pressure drops. Include a condensate drain downstream to remove moisture collected during drying. Electrical connections, if any, must comply with local codes and manufacturer instructions, especially for heated or blower purge dryers.
Routine maintenance keeps adsorption dryers operating efficiently and extends their service life. Start with daily or weekly checks of system pressure, temperature, and pressure dew point (PDP) to monitor dryer performance. Sudden changes in PDP could signal desiccant saturation or valve issues.
Inspect valves, seals, and controls regularly for leaks or wear. Air leaks reduce drying efficiency and increase energy consumption. Clean or replace filters as recommended to prevent dirt buildup that can clog the system.
Check condensate drains frequently to avoid water accumulation, which can damage the desiccant and downstream equipment. For automated drains, verify proper operation and clear any blockages.
Keep an eye on the regeneration cycle timing and ensure the dryer switches towers correctly. Malfunctioning cycles can cause moisture carryover, defeating the dryer’s purpose.
Desiccant material has a finite lifespan and must be replaced periodically. The replacement interval depends on operating conditions, air quality, and dryer type but usually ranges from 1 to 3 years. Signs that desiccant needs replacement include increased PDP, visible contamination, or physical degradation.
When replacing desiccant, follow manufacturer guidelines carefully. Remove all old material to prevent mixing with fresh desiccant. Inspect desiccant beds for damage or channeling, which can reduce drying capacity.
Perform a thorough system check during desiccant replacement. Test valves, sensors, and control systems to confirm they function correctly. Pressure tests can detect leaks that compromise drying performance.
Document maintenance activities and monitor trends in dryer performance. This practice helps predict future maintenance needs and avoid unexpected downtime.
Tip: Schedule regular inspections and timely desiccant replacements to maintain optimal drying efficiency and protect your compressed air system from moisture damage.
Selecting the ideal adsorption dryer is key to ensuring your compressed air system delivers the dry air quality your operations demand. Several factors influence this choice, including air quality needs, operational efficiency, and budget constraints.
Drying Requirements: Determine the required pressure dew point (PDP) for your application. Sensitive processes like pharmaceuticals or electronics often need very low PDPs (e.g., -40°C or lower). Less critical uses may tolerate higher PDPs.
Air Flow Rate: Match the dryer capacity to your compressed air flow. Undersized dryers won’t dry air effectively, while oversized units waste energy and money.
Regeneration Method: Consider energy consumption and air loss during regeneration. Heatless dryers use more purge air, increasing operating costs. Heated and blower purge dryers reduce purge air but have higher initial costs.
Ambient Conditions: High ambient humidity or temperature can affect dryer performance. Some dryers handle harsh environments better than others.
System Compatibility: Check compatibility with your compressor type. For example, Heat of Compression (HOC) dryers suit oil-free compressors but not oil-lubricated ones.
Space and Installation: Size, weight, and installation requirements may limit your options. Ensure sufficient space and access for maintenance.
Air quality standards vary by industry. ISO 8573-1 defines classes for water content in compressed air from Class 0 (lowest moisture) to Class 6 (highest moisture). Choose a dryer that meets or exceeds your industry’s air quality standards.
Critical Applications: Use adsorption dryers capable of achieving ultra-low PDPs (-40°C to -70°C).
General Industrial Use: Refrigerated dryers or heatless adsorption dryers may suffice.
Point-of-Use Needs: Sometimes, a combination of dryers is used—refrigerated for general use and adsorption for sensitive points.
Initial cost is important, but operating expenses often have a bigger impact over time.
Heatless Dryers: Lower upfront cost, higher purge air consumption, leading to higher energy costs.
Heated and Blower Purge Dryers: Higher capital cost but better energy savings due to lower purge rates.
HOC Dryers: Minimal energy use but limited to certain compressor types.
Maintenance Costs: Factor in desiccant replacement, valve upkeep, and filter changes.
Energy Savings: Investing in energy-efficient dryers can reduce costs significantly in large or continuous operations.
Tip: Evaluate total cost of ownership, including energy use and maintenance, not just purchase price, when selecting an adsorption dryer to ensure long-term savings and reliable dry air supply.
Adsorption dryers enhance compressed air quality by removing moisture, preventing corrosion, and improving product integrity. They achieve ultra-low pressure dew points, ensuring dry air crucial for industries like pharmaceuticals and electronics. Selecting the right dryer involves considering drying requirements, air flow rates, and regeneration methods for optimal efficiency. Implementing these dryers can significantly reduce maintenance costs and energy consumption. For superior performance and reliability, consider KSTK products, which offer advanced features ensuring consistent dry air delivery for diverse applications.
A: An Adsorption Air Dryer removes moisture from compressed air using a desiccant material, achieving very low pressure dew points for extremely dry air.
A: It operates on a two-phase cycle: drying, where desiccant adsorbs moisture, and regeneration, where moisture is expelled, ensuring continuous dry air delivery.
A: Adsorption Air Dryers can achieve much lower pressure dew points than refrigerated dryers, making them ideal for sensitive applications requiring ultra-dry air.
