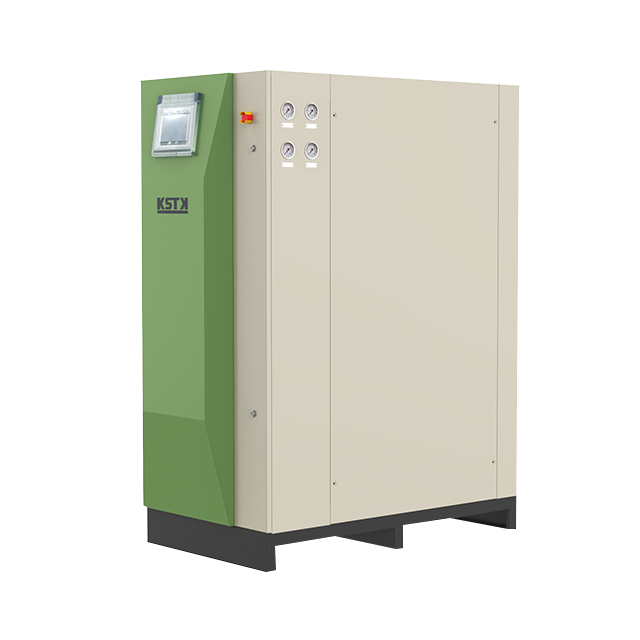

Modular Oxygen Generator

Unlike traditional multi-tower oxygen generators, the new modular oxygen generator features high-quality aluminum extrusion profile components, offering a more compact design and superior performance. Its innovative system architecture significantly simplifies the equipment structure, reducing both footprint and installation costs. The flexible design allows the unit to be easily placed anywhere in the production facility, providing you with an efficient and hassle-free oxygen generation experience.


Availability:



INQUIRY

Benefits

▔▔▔

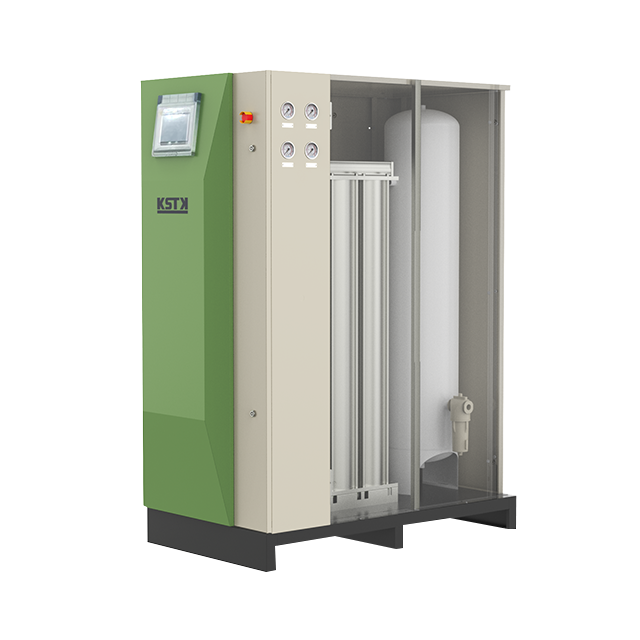

Using aluminum profiles as vessels, significantly reduces height and width in comparison to traditional carbon tank vessels. Reduces overall footprint for the unit. Ideal for facilities with height limitation

Compact Design
Can pair up to 3 banks of modular oxygen generator. Using only one PLC to control all three banks, eliminates the need for purchasing new standalone units when oxygen demand increases

Flexible Expansion
System is equipped with dual energy saving modes. Unit goes into standby mode when oxygen demand stops or decreases. Ensuring maximum energy efficiency while saving operational cost for the users

Energy Efficient
The modular aluminum-profile design delivers significantly faster lead times than traditional carbon steel vessels, which require custom fabrication for every unit. Standardized aluminum components are ready to assemble, ensuring rapid production and delivery

Quick Delivery

Product Characteristic

▔▔▔

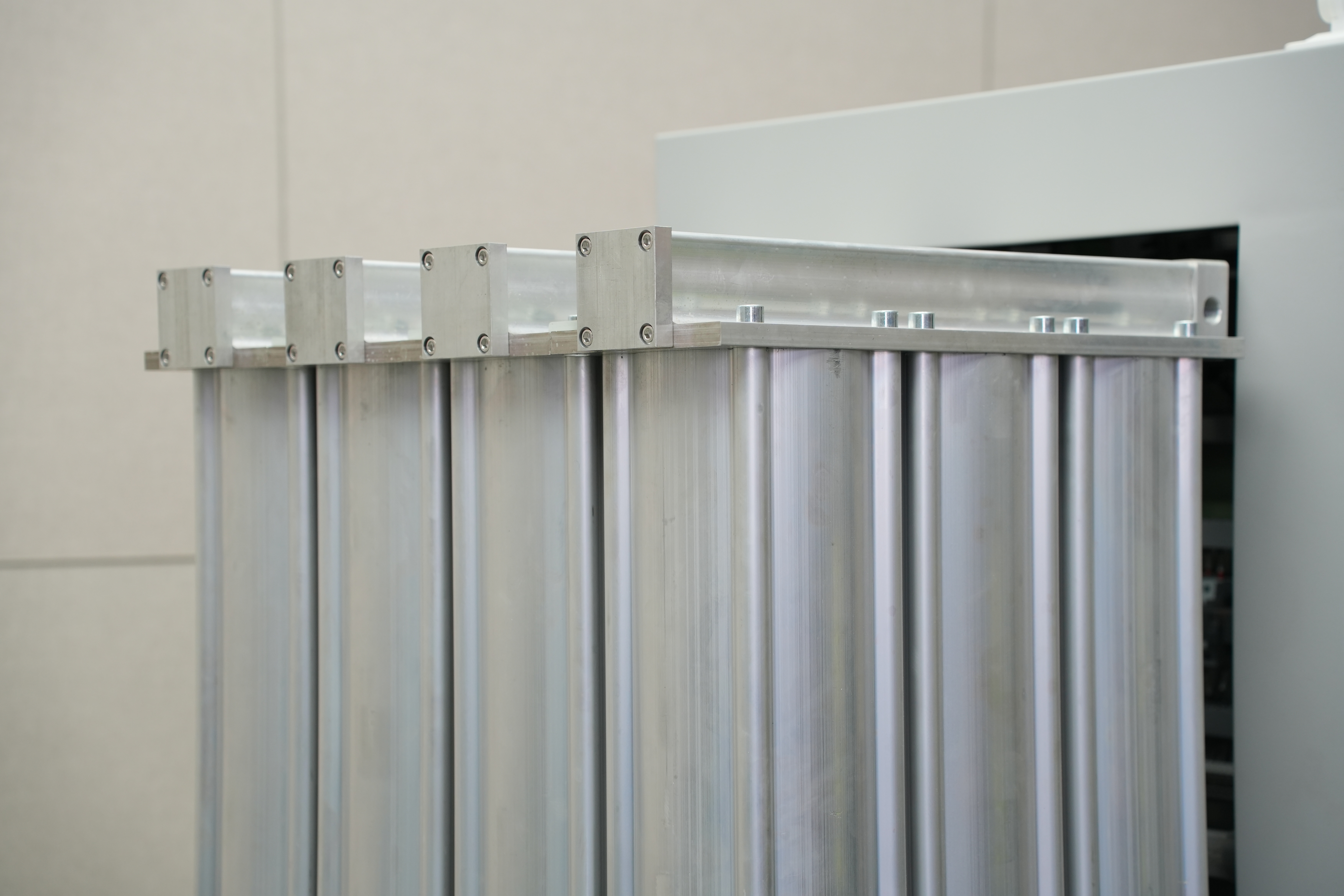

Premium Aluminum

Engineered to withstand high temperatures and pressures, these profiles resist deformation and ensure airtight performance.

Integrated 7.5-Inch Touchscreen

A high-quality 7.5-inch all-in-one PLC touchscreen enables fast installation, space-saving internal layout, enhanced compatibility, and a high-resolution, full-color interface.

Engineered Down to Every Detail

For solenoid valve coils—one of the most critical and failure-prone components—we selected premium coils from NASS (Germany) after extensive testing, ensuring long-term stability and reliability.

Application

▔▔▔

Clinics

Clinics typically require oxygen purity at 93±3%. Our flexible modular oxygen generators provide scalable supply, adjusting output dynamically to meet changing patient demand.

Laboratories

Oxygen output can be precisely controlled to support experiments, chemical reactions, or research processes. Typically requiring at 90~95% purity.

Small Industrial Processes

Delivers consistent medium-level oxygen demand for production processes, without requiring oversized equipment.

FAQ

▔▔▔

Can we have your service team to us to do the maintenance?

Absolutely, KSTK have two service crews. One located in China which can cover the majority of Asia, Africa, and Oceania continent. The other crew is located in the United States, which can cover both North and South America, and Europe. For scheduling your upcoming maintenance, please let us know at support@kstkmanufacturing.com
Is this suitable for medical oxygen applications?

Yes. All of our oxygen generator has passed ISO 13485 Medical Certificate which have met medical oxygen purity standards, subject to local regulatory requirements.
Can oxygen modules be added later?

Yes, One PLC can control up to 3 oxygen modules, without the need of purchasing a completely configured unit.

Related Products

Containerized VPSA Oxygen Station

VPSA Oxygen Generator

Microfine Nano-bubble Oxygenation System

Combined Oxygen Generator

Combined Modular Oxygen Generator

Oxygen Purifier

Containerized PSA Oxygen Station

PSA Oxygen Generator

Experience Excellence with KSTK Now

We look forward to working with you to create a better future together.

Contact Us

Oxygen Purity	93±2%
Oxygen Flowrate	1～32Nm³/hr
Oxygen Dew Point	-60~-40℃
Oxygen Pressure	1~5Bar
Air Inlet Pressure	6~8Bar
Air Inlet Temperature	20~35℃
Voltage/Frequency	220V/50~60Hz

Model	Air to O₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	Oxygen Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	O₂Output	Inlet	Outlet	Air Dryer Model	Oxygen Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KOB-15MA	150	15	25	15	KRD-039F	200	Standard	75014801788
KOB-20MA	200	20	25	15	KRD-070F	200	Standard	75014801788
KOB-25MA	250	25	32	15	KRD-070F	300	Standard	75017501788
KOB-32MA	320	32	32	15	KRD-085F	300	Standard	75019001788

Oxygen Purity	93±2%
Oxygen Flowrate	1～32Nm³/hr
Oxygen Dew Point	-60~-40℃
Oxygen Pressure	1~5Bar
Air Inlet Pressure	6~8Bar
Air Inlet Temperature	20~35℃
Voltage/Frequency	220V/50~60Hz

Model	Air to O₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	Oxygen Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	O₂Output	Inlet	Outlet	Air Dryer Model	Oxygen Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KOB-15MA	150	15	25	15	KRD-039F	200	Standard	75014801788
KOB-20MA	200	20	25	15	KRD-070F	200	Standard	75014801788
KOB-25MA	250	25	32	15	KRD-070F	300	Standard	75017501788
KOB-32MA	320	32	32	15	KRD-085F	300	Standard	75019001788
