Containerized Nitrogen Generation Station

Containerized Nitrogen Station

KSTK’s nitrogen Station is a containerized nitrogen generation system designed to meet the diverse oxygen requirements of industrial, and other applications. At its core is an highly efficient PSA Nitrogen Generator, which ensures the stable and reliable supply of high-quality nitrogen. Depending on the specific end-user requirements, the station can be equipped with suitable nitrogen purfiers to deliver up to 99.9999% pure nitrogen, or integrated with a nitrogen booster to meet specific nitrogen pressure requirements. This all-in-one solution not only guarantees the stability and reliability of the nitrogen supply but also offers exceptional mobility and ease of integration thanks to its compact containerized design. It is the ideal choice for various nitrogen-demanding environments. Whether used directly on production lines or for other purposes, KSTK’s Nitrogen Station meets the stringent quality requirements for high-purity nitrogen.


Availability:



INQUIRY

Benefits

▔▔▔

Complete nitrogen station pre-installed inside a climate-controlled container

Turnkey Solution
Engineered for harsh outdoor and remote industrial environments, the weatherproof, climate-controlled container ensures stable performance from −20°C to 40°C

Heavy Duty Application
Factory-assembled system allows rapid on-site installation and immediate commissioning

Quick Deployment
Internal temperature control ensures stable performance and extended equipment lifespan

Climate-Controlled Operation

Product Characteristic

▔▔▔

Thermal Insulation Panels

High-performance insulation panels with a 50 mm thickness are installed inside the container to ensure effective thermal insulation

Ventilation Fan

Integrated ventilation fans promote continuous air circulation inside the container, effectively dissipating heat and preventing excessive internal temperatures during operation

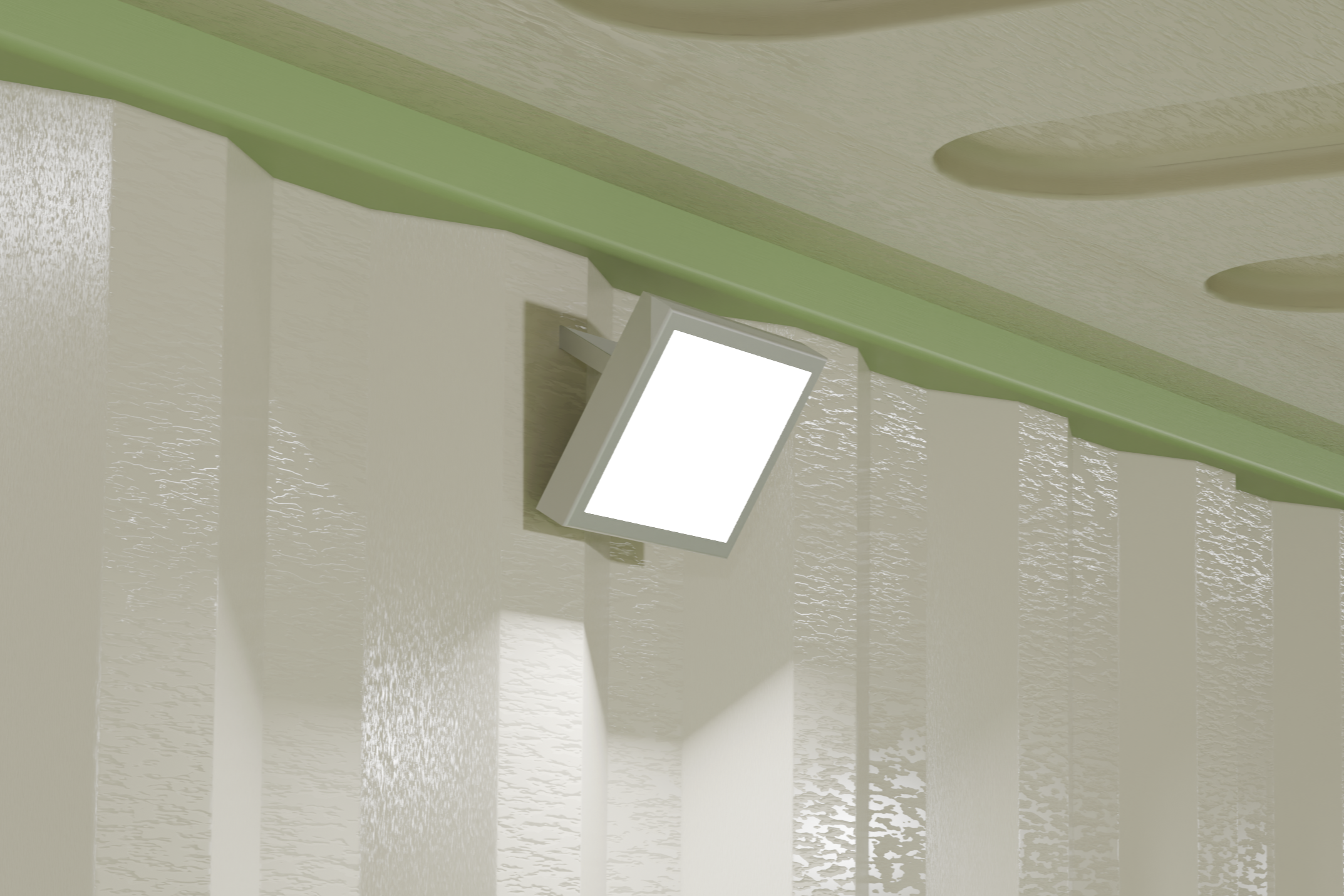

Internal Lighting System

Built-in lighting provides sufficient illumination inside the container, ensuring safe operation, inspection, and maintenance under all working conditions

Application

▔▔▔

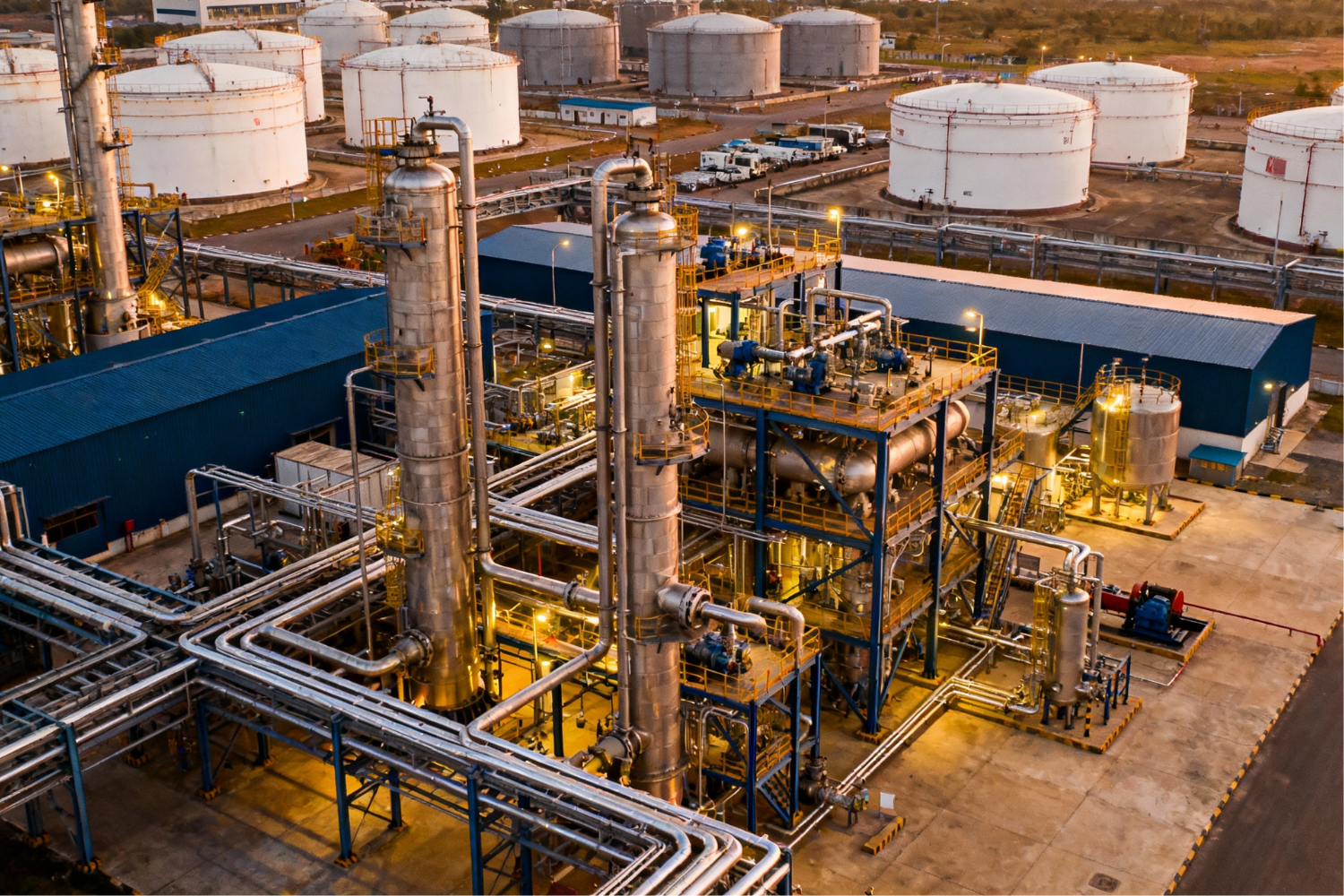

Oil & Gas Processing

Oil and gas facilities use high-capacity nitrogen systems at 97–99.9% purity for pipeline purging, equipment commissioning, and hazard prevention in explosive environments

Steel Annealing & Heat Treatment

Steel and metal heat treatment processes typically require large nitrogen volumes at 99.9–99.99% purity to prevent oxidation and ensure consistent metallurgical properties

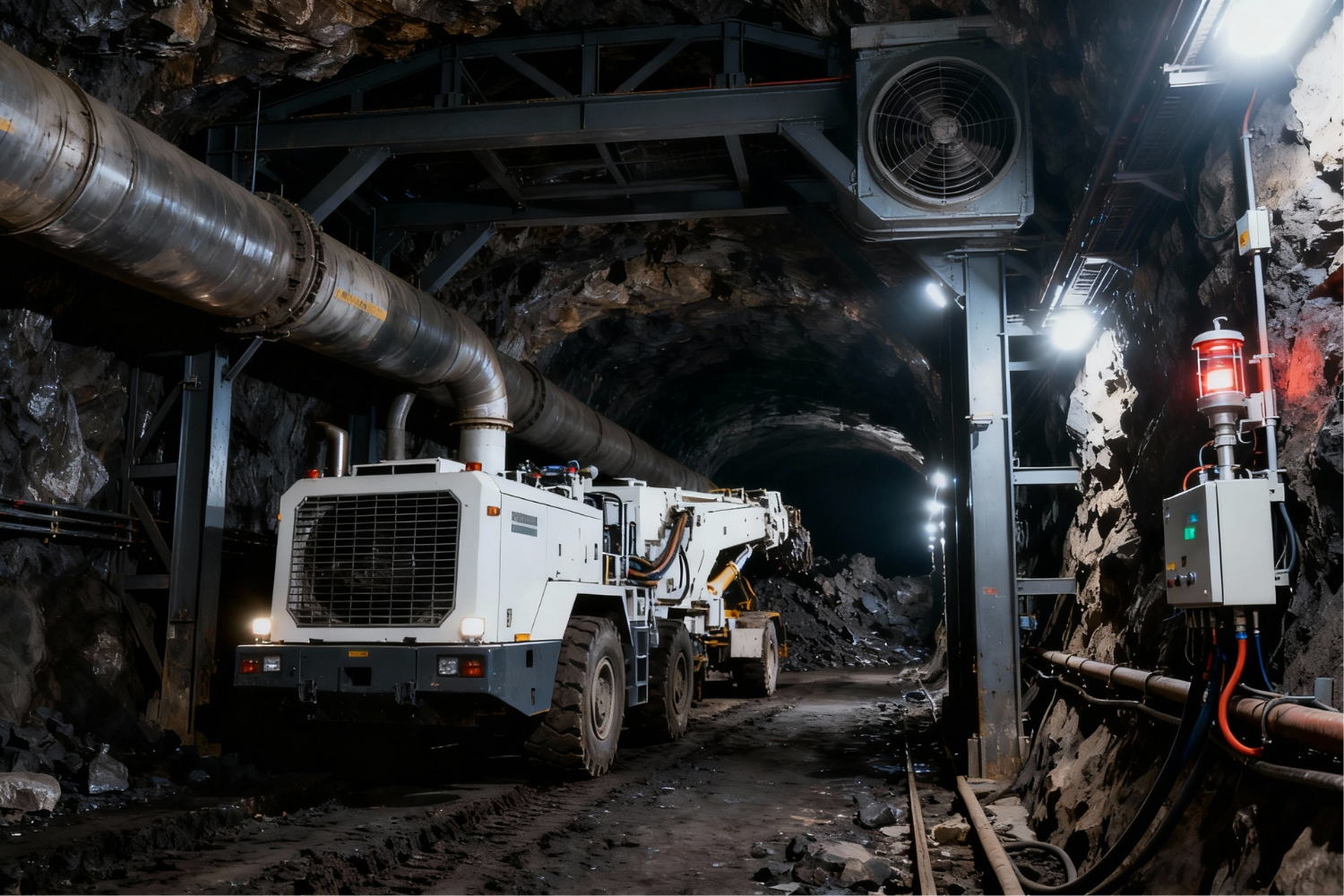

Mining Inerting

Mining operations typically consume large volumes of nitrogen (≥500 Nm³/h) at 95–99% purity to inert underground environments, reduce explosion risks, and ensure safe continuous production

FAQ

▔▔▔

Can the system be installed outdoors?

Yes. Containerized nitrogen stations are engineered for outdoor use and protect equipment from extreme temperatures, dust, and harsh environments.
How long does installation and commissioning take?

Containerized and plug-and-play designs enable fast on-site deployment, typically requiring only minimal connection and commissioning time.
What safety features are included?

Safety systems include pressure monitoring, temperature control, alarm systems, and optional oxygen level detection to ensure safe and reliable operation.

Related Products

Quad-Tower Nitrogen Generator

Combined Nitrogen Generator

Combined Modular Nitrogen Generator

Modular Nitrogen Generator

Nitrogen Purifier

Experience Excellence with KSTK Now

We look forward to working with you to create a better future together.

Contact Us

Nitrogen Purity	79~99.999% (up to 99.9999% with nitrogen purifier)
Nitrogen Flow Rate	1～3000Nm³/h
Nitrogen Dew Point	-60~-30℃
Nitrogen Pressure	6~8Bar (up to 200 bar with nitrogen booster）
Inlet Pressure	8~10Bar
Inlet Temperature	20~35℃
Voltage & Frequency	220V/50~60Hz

Specification	Standard Containers		Customized Containers
Specification	20GP	40HQ	20GP	40HQ
External Dims (m)	6.062.442.59	12.202.442.90	Customizable
Internal Dims. (m)	5.852.342.30	12.052.342.63
Rear Door (m)	2.44*2.59	2.44*2.90
Side Door (m)	/	/
Empty Weight (kg)	2,150	3,700	Customizable
Maximum Gross Weight (kg)	＜14,000	＜28,000	Customizable
Floor Area (m²)	14.79	29.77	Customizable
Volume (m³)	38.30	86.33	Customizable

Application	Nitrogen Purity
Fire Protection	95%
Explosion Prevention	95～98%
Chemical Processing	95～99%
Injection Molding	99～99.5%
Food Processing	99～99.9%
Electronics & Electrical	99.95～99.995%
Laser Cutting	99.95～99.995%
Medical & Pharmaceutical	99.95～99.999%
Semiconductor	99.99～99.9999%

Nitrogen Purity	79~99.999% (up to 99.9999% with nitrogen purifier)
Nitrogen Flow Rate	1～3000Nm³/h
Nitrogen Dew Point	-60~-30℃
Nitrogen Pressure	6~8Bar (up to 200 bar with nitrogen booster）
Inlet Pressure	8~10Bar
Inlet Temperature	20~35℃
Voltage & Frequency	220V/50~60Hz

Specification	Standard Containers		Customized Containers
Specification	20GP	40HQ	20GP	40HQ
External Dims (m)	6.062.442.59	12.202.442.90	Customizable
Internal Dims. (m)	5.852.342.30	12.052.342.63
Rear Door (m)	2.44*2.59	2.44*2.90
Side Door (m)	/	/
Empty Weight (kg)	2,150	3,700	Customizable
Maximum Gross Weight (kg)	＜14,000	＜28,000	Customizable
Floor Area (m²)	14.79	29.77	Customizable
Volume (m³)	38.30	86.33	Customizable
