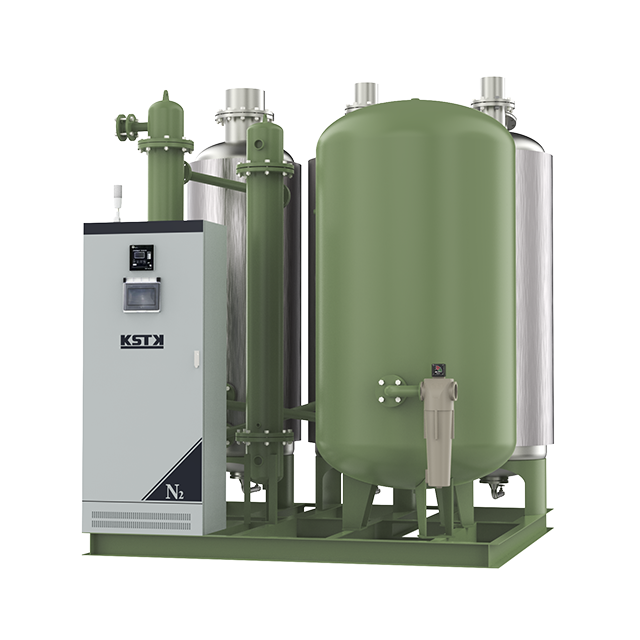

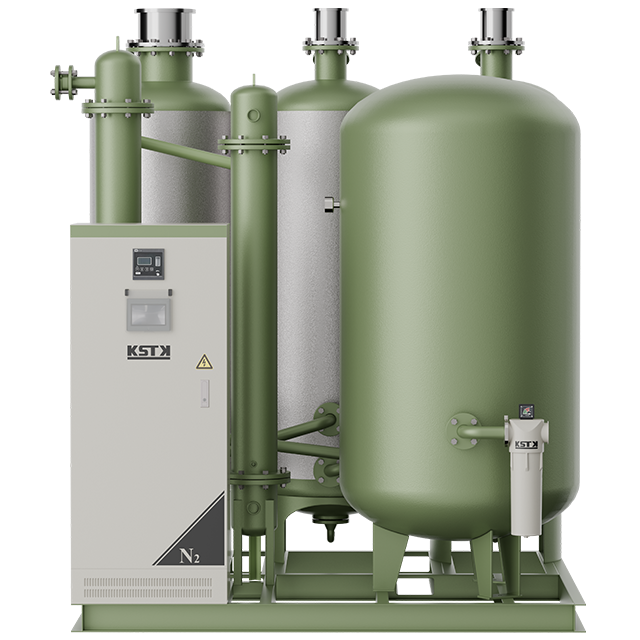

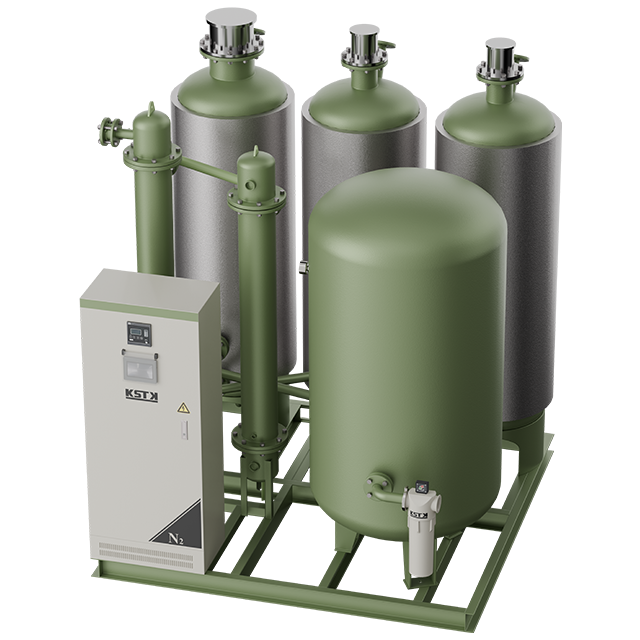

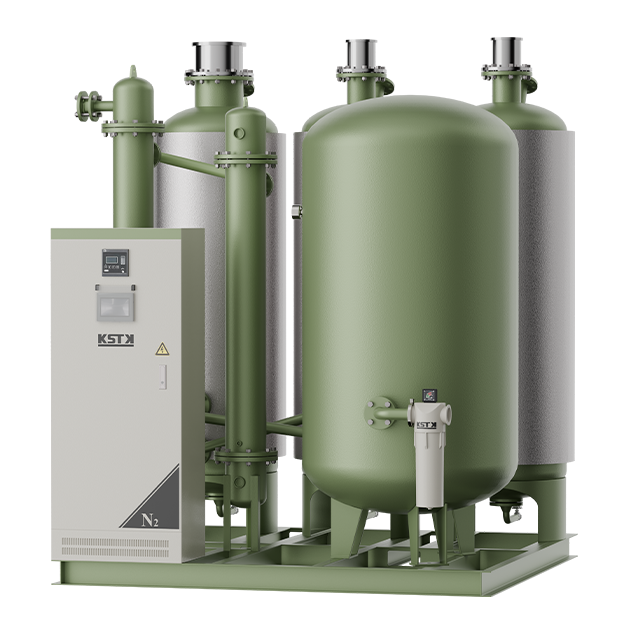

Nitrogen Purifier

At a specific temperature, residual oxygen in the feed nitrogen reacts with the carbon-supported catalyst to form carbon dioxide. This is followed by pressure swing adsorption (PSA) technology to remove carbon dioxide and moisture. After further treatment with an efficient filtration system, high-purity nitrogen with a purity exceeding 99.999% is obtained.


Availability:



INQUIRY

Benefits

▔▔▔

● Capable of producing nitrogen purity above 99.9999% for critical applications

Ultra-High Purity Output
● Uses air as the raw material, ensuring unlimited supply and environmentally sustainable operation

Sustainable Production

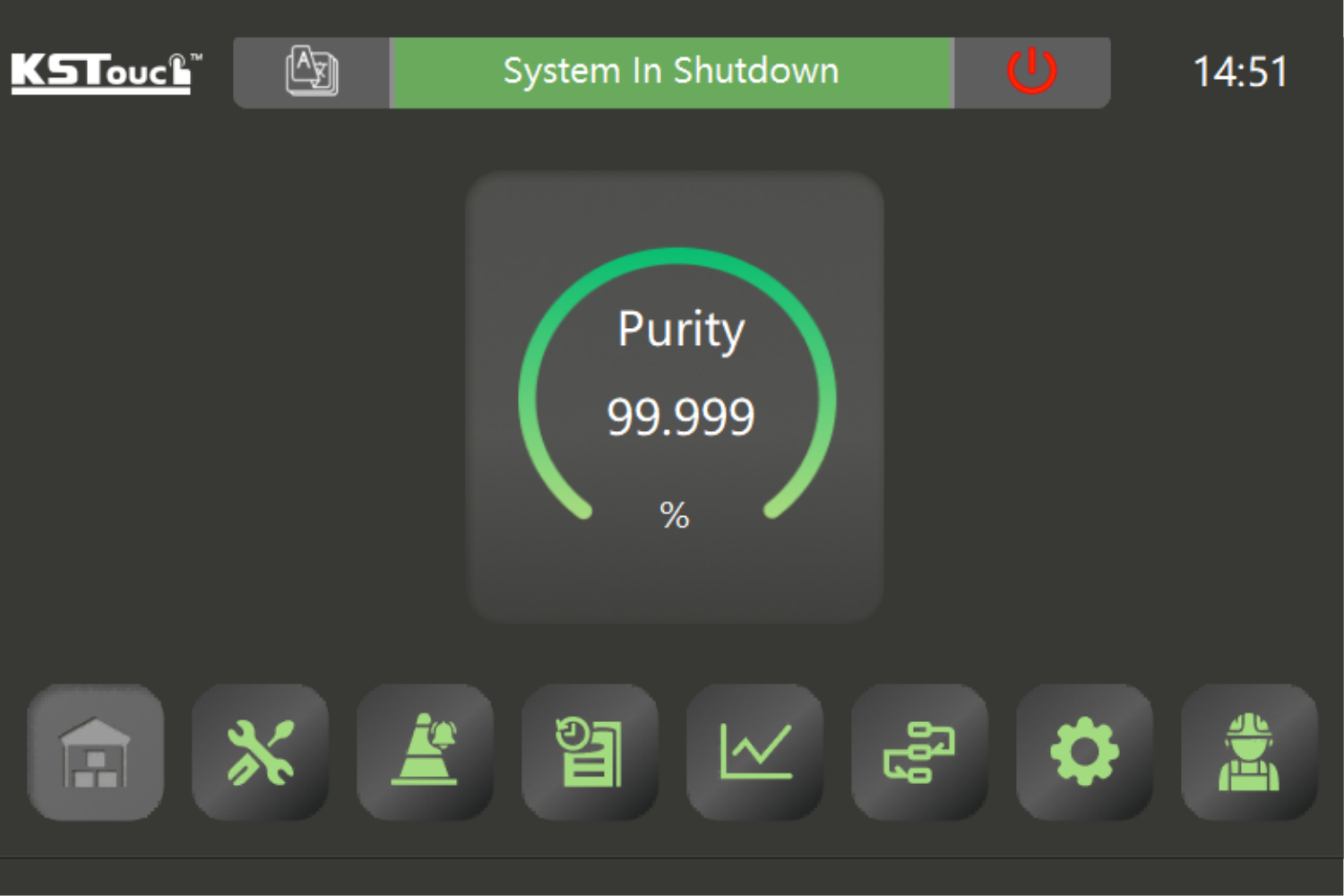

● PLC-based automation supports reliable 24/7 operation without continuous operator supervision

Unattended Operation
● The annual cost of producing high-purity nitrogen on-site is significantly lower than relying on liquid nitrogen supply

Lower Investment

Product Characteristic

▔▔▔

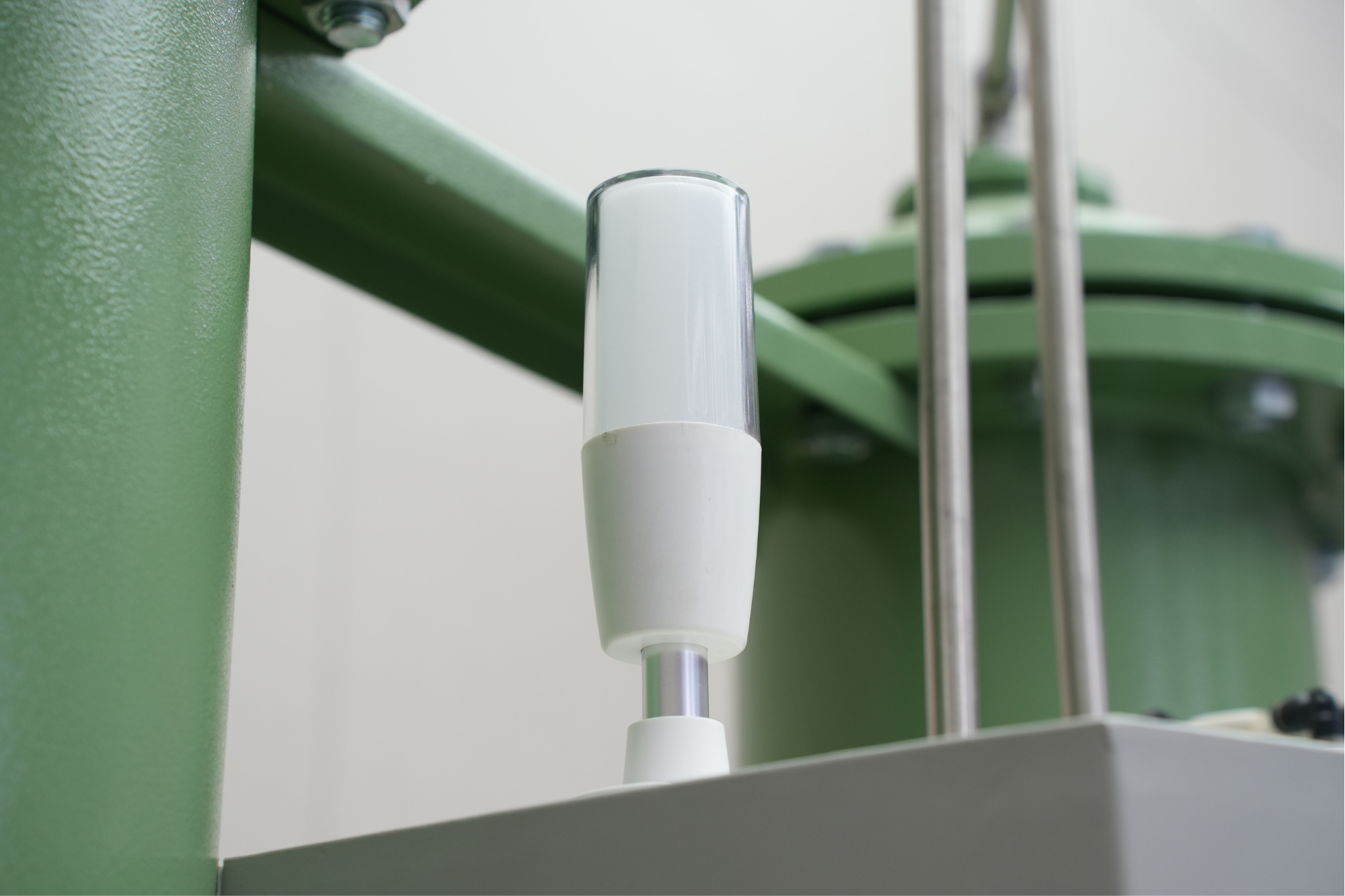

Intelligent Alarm Protection

A dual-warning system combining audible alarms and flashing indicators enables rapid detection and response to abnormal operating conditions

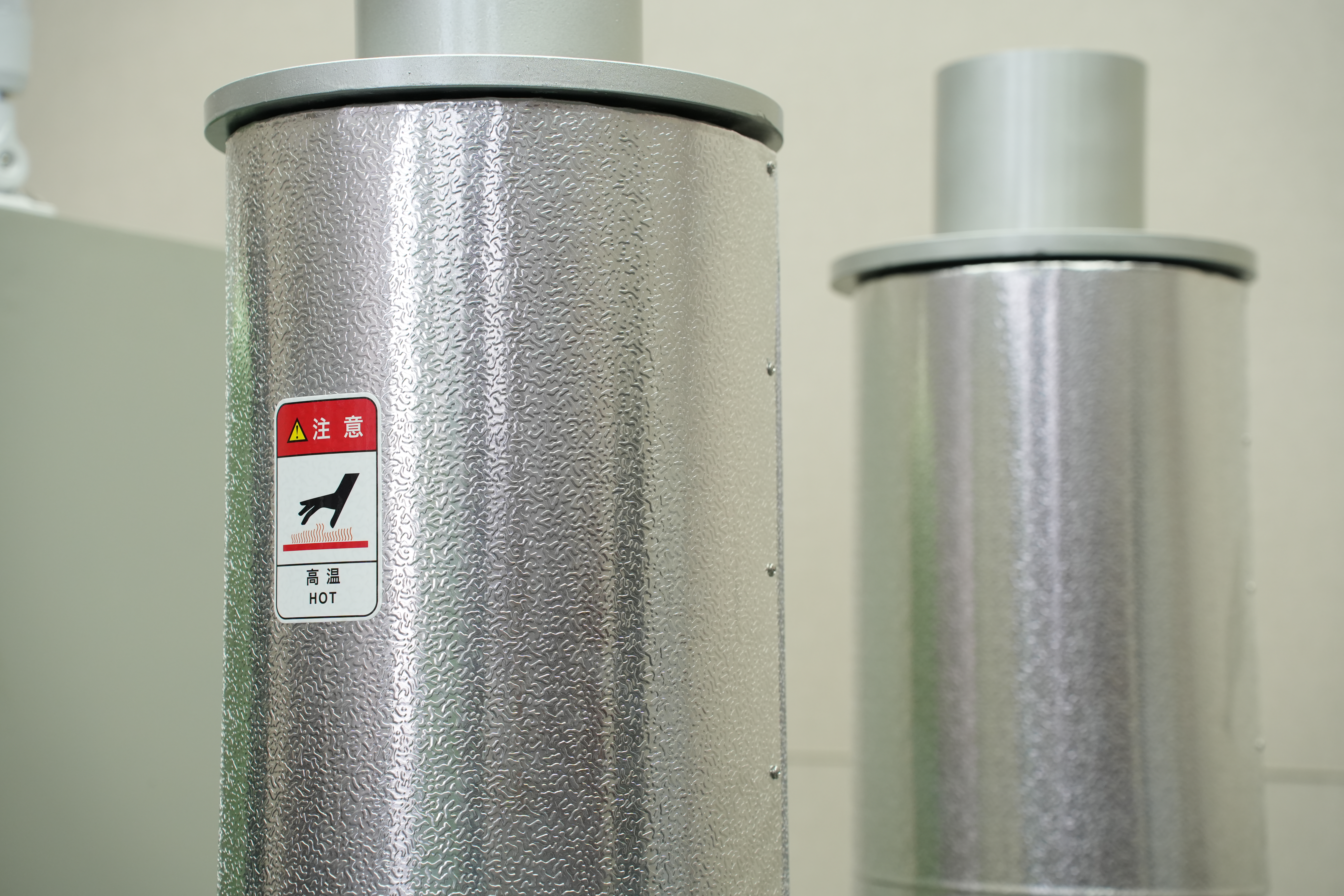

High-Performance Heater

Provides stable and uniform reaction temperature for complete deoxidation, ensuring consistent ultra-high nitrogen purity

Ultra-High Nitrogen Purity

Our nitrogen purifier can boost nitrogen purity above 99.9999%, satisfying extreme nitrogen purity demands

Application

▔▔▔

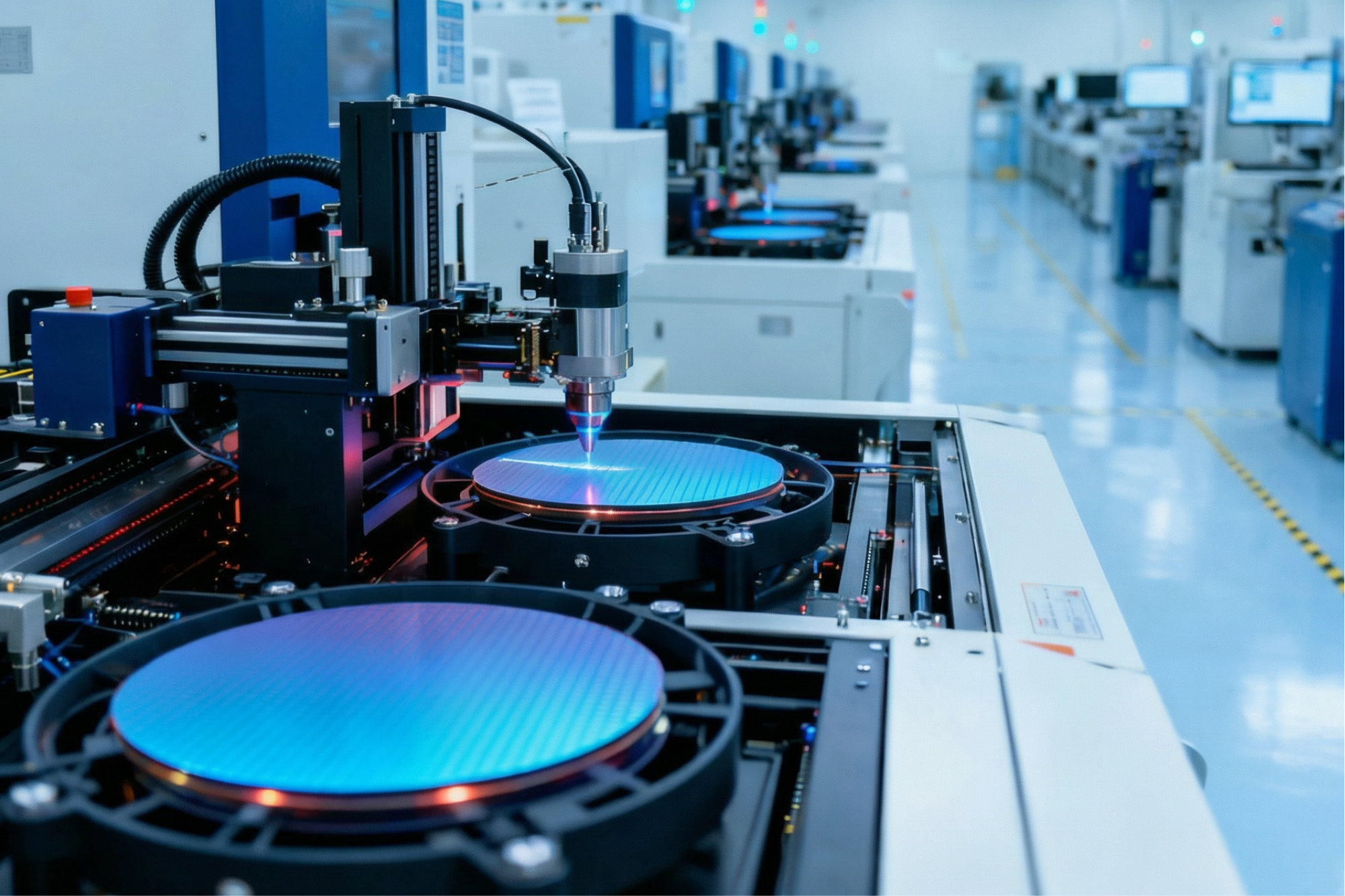

Semiconductor Manufacturing

Semiconductor manufacturing normally consumes small but ultra-high-purity nitrogen (≤50 Nm³/h at 99.999–99.9999% purity) to protect highly sensitive processes and prevent microscopic contamination

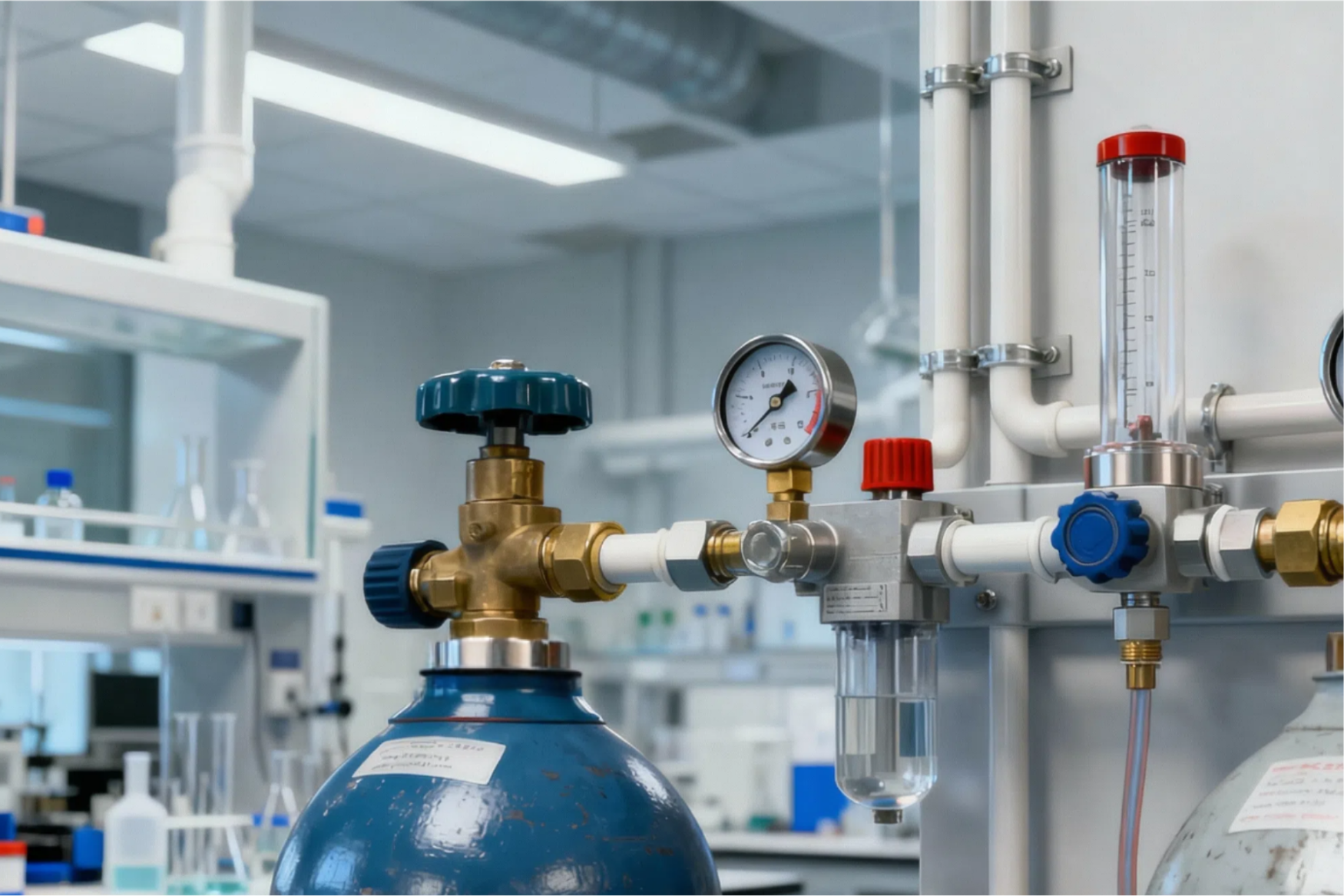

Laboratory Gas Supply

Laboratories typically require low nitrogen flow at 99.99–99.9999% purity for analytical instruments, experiments, and controlled environments

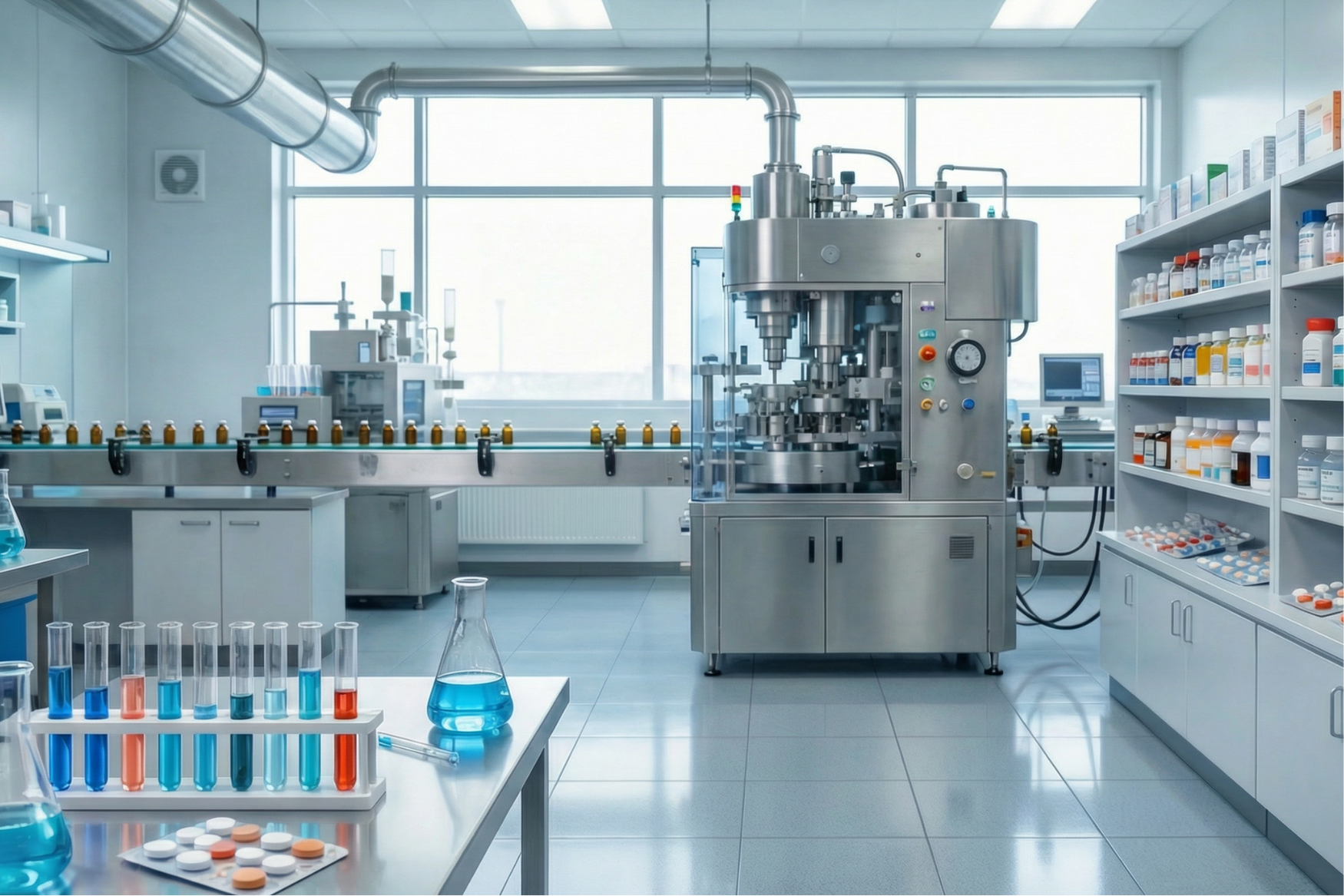

Pharmaceutical Production

Pharmaceutical manufacturing typically uses medium nitrogen flow at 99.9–99.999% purity for inerting, drying, and product protection during critical processes

FAQ

▔▔▔

Why is nitrogen purification needed?

Standard PSA systems typically produce nitrogen with 95–99% purity. For ultra-high purity nitrogen (up to 99.999%), additional purification is required. Our nitrogen purifier uses specialized adsorbents to remove residual oxygen, moisture, and other impurities, ensuring ultra-high purity for critical applications.
Can we use only nitrogen purifer to generate high purity nitrogen above 99.9999%?

No, unfortunately. The nitrogen purifier can not be used alone as a standalone unit. It is being required as the second step to purify the standard nitrogen into purified nitrogen.
Can nitrogen purification equipment operate continuously?

Yes, it is designed for continuous 24/7 operation.
How often does the adsorbent in a nitrogen purifier need replacement?

With proper maintenance, the molecular sieve typically lasts up to 5 years.
What is the typical maintenance cost for nitrogen purification equipment?

It varies based on unit size and configuration.
Why choose on-site nitrogen generation instead of liquid or bottled nitrogen?

On-site nitrogen generation offers lower investment and operating costs, requires less space, and is easier to manage and maintain compared to liquid or bottled nitrogen supply.
How energy-efficient is the system compared to liquid nitrogen supply?

On-site nitrogen generation significantly reduces energy and logistics costs compared to liquid nitrogen. Optimized PSA cycles deliver a faster ROI and lower long-term operating expenses.
How energy-efficient is the system compared to liquid nitrogen supply?

On-site nitrogen generation significantly reduces energy and logistics costs compared to liquid nitrogen. Optimized PSA cycles deliver a faster ROI and lower long-term operating expenses.
How does on-site gas equipment ensure gas purity and stability?

Each unit is rigorously factory-tested to meet purity, flowrate, and performance standards. With regular maintenance, the system provides stable and reliable nitrogen output.
Can the system be integrated with an existing nitrogen generator?

Yes. Nitrogen purifiers is a standalone unit which can be later added to the regular nitrogen generator in order to achieve higher nitrogen purity.

Related Products

Quad-Tower Nitrogen Generator

Combined Nitrogen Generator

Combined Modular Nitrogen Generator

Modular Nitrogen Generator

Containerized Nitrogen Generation Station

Containerized Nitrogen Station

Experience Excellence with KSTK Now

We look forward to working with you to create a better future together.

Contact Us

Purified Nitrogen Purity	99.999%~99.9999%
Purified Nitrogen Flow Rate	50~1000Nm³/hr
Purified Nitrogen Dew Point	-60~-30℃
Purified Nitrogen Pressure	5～7Bar
Standard Nitrogen Pressure	6～8Bar
Inlet Temperature	20～35℃
Voltage/Frequency	220V/50~60Hz

Model	Standard N₂to Purified N₂ Ratio (Nm³/hr)		Catalyst Consumption Rate (kg)
Model	N₂ Consumption Rate	Purified N₂ Output	Catalyst Consumption Rate (kg)
KNC-50SE	55	150	18
KNC-100SE	110	100	38
KNC-150SE	165	150	54
KNC-200SE	220	200	72
KNC-300SE	330	300	108
KNC-400SE	440	400	144
KNC-500SE	550	500	180
KNC-800SE	880	800	304
KNC-1000SE	1100	1000	380

Purified Nitrogen Purity	99.999%~99.9999%
Purified Nitrogen Flow Rate	50~1000Nm³/hr
Purified Nitrogen Dew Point	-60~-30℃
Purified Nitrogen Pressure	5～7Bar
Standard Nitrogen Pressure	6～8Bar
Inlet Temperature	20～35℃
Voltage/Frequency	220V/50~60Hz

Model	Standard N₂to Purified N₂ Ratio (Nm³/hr)		Catalyst Consumption Rate (kg)
Model	N₂ Consumption Rate	Purified N₂ Output	Catalyst Consumption Rate (kg)
KNC-50SE	55	150	18
KNC-100SE	110	100	38
KNC-150SE	165	150	54
KNC-200SE	220	200	72
KNC-300SE	330	300	108
KNC-400SE	440	400	144
KNC-500SE	550	500	180
KNC-800SE	880	800	304
KNC-1000SE	1100	1000	380
