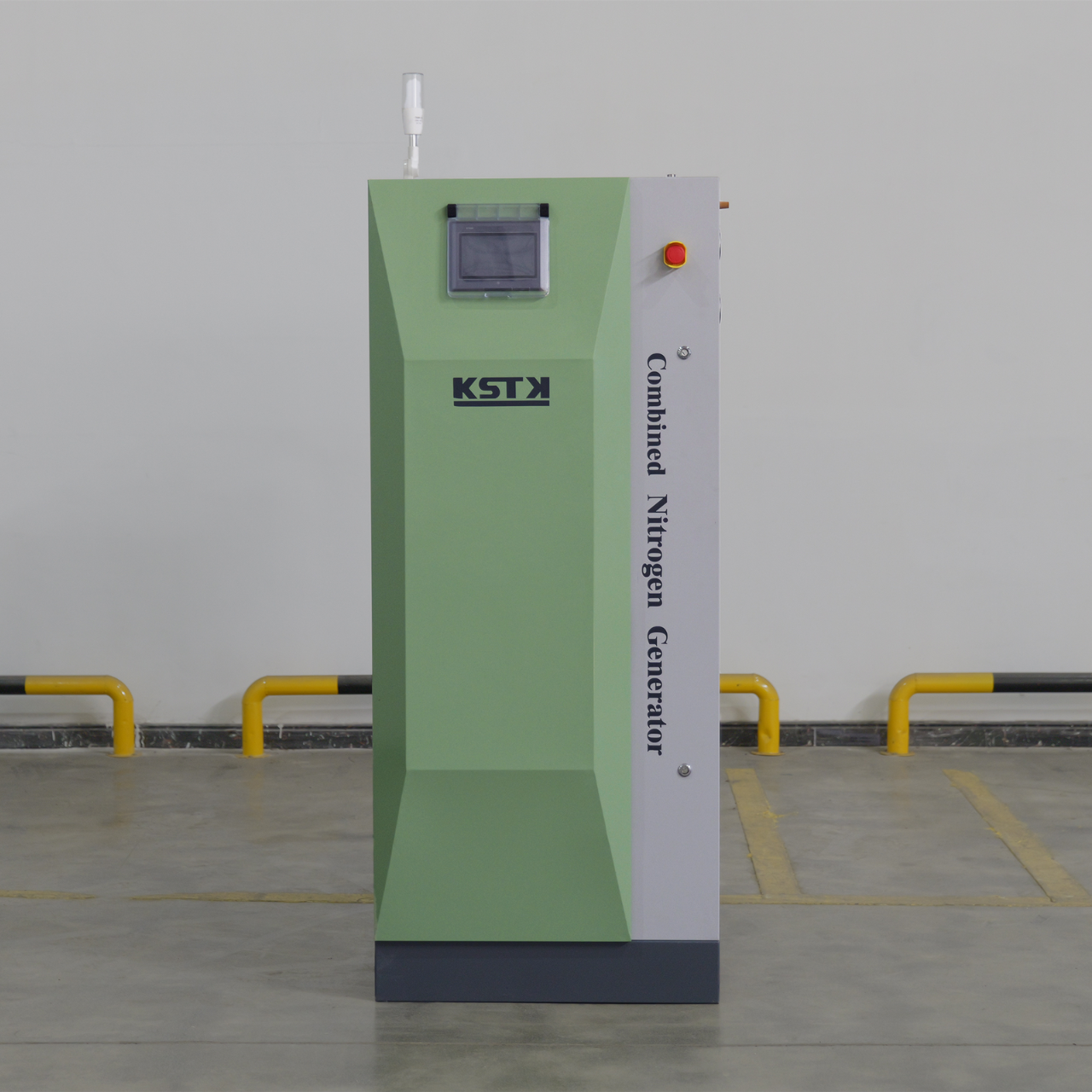

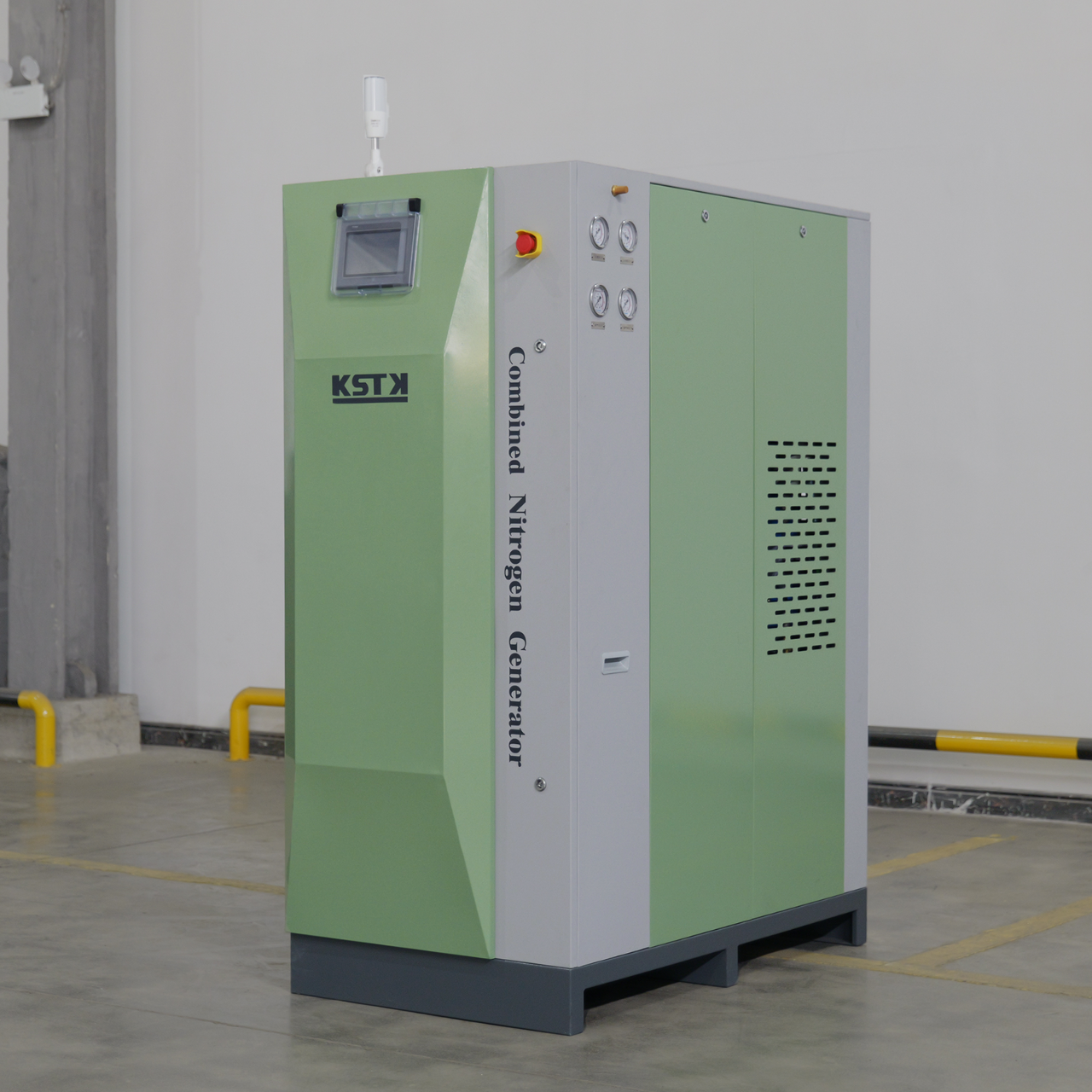

Combined Modular Nitrogen Generator

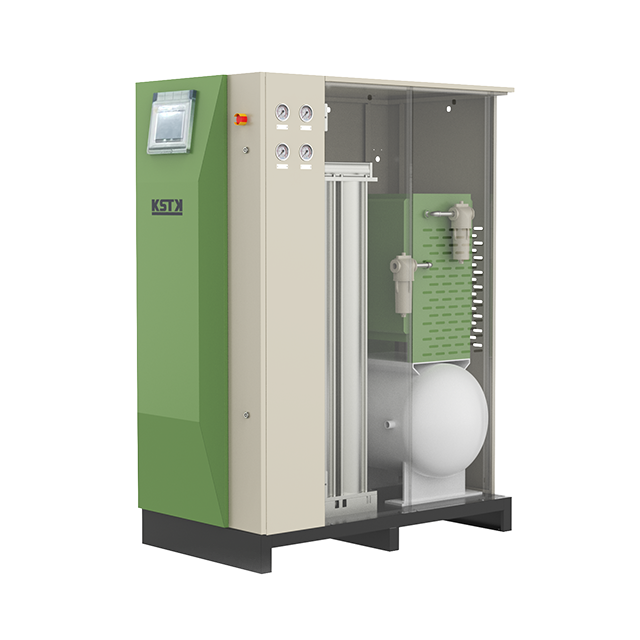

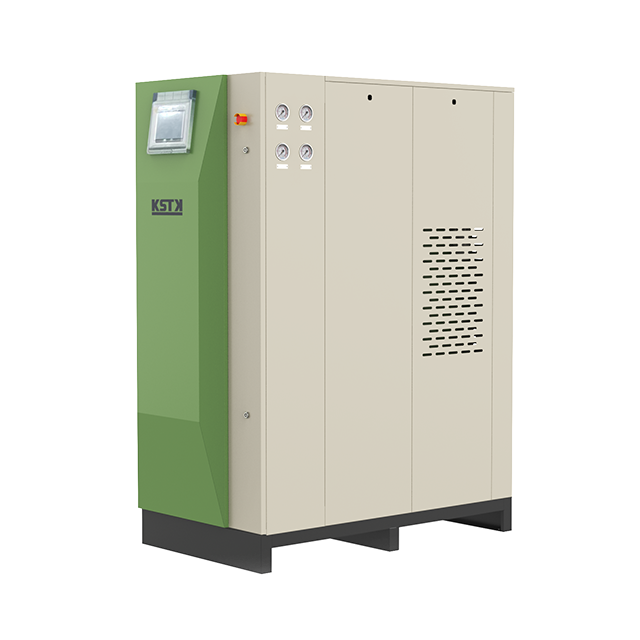

Our combined modular nitrogen generator cleverly integrates the refrigerated dryer, precision filtration system, air buffer tank, nitrogen buffer tank, and modular nitrogen generator into a single unit, fulfilling multiple functions with just one device. Users only need to connect the air inlet to the air compressor and the nitrogen outlet to the gas application for immediate nitrogen supply, no complex installation or commissioning required. The compact, all-in-one design saves space, boosts efficiency, and provides you with an efficient, convenient gas supply solution!


Availability:



INQUIRY

Benefits

▔▔▔

● Plug-and-play configuration minimizes on-site installation time and commissioning effort

Fast Installation
● PSA is a mature, reliable, and widely adopted technology with dependable safety performance

Proven PSA Technology
● Industrial-grade components deliver a service life of 10–15 years

Long Equipment Lifespan
● Unit equipped with dual-energy saving mode, ensure lower power consumption meaning lower opearting cost for the end users

Lower Operating Cost

Product Characteristic

▔▔▔

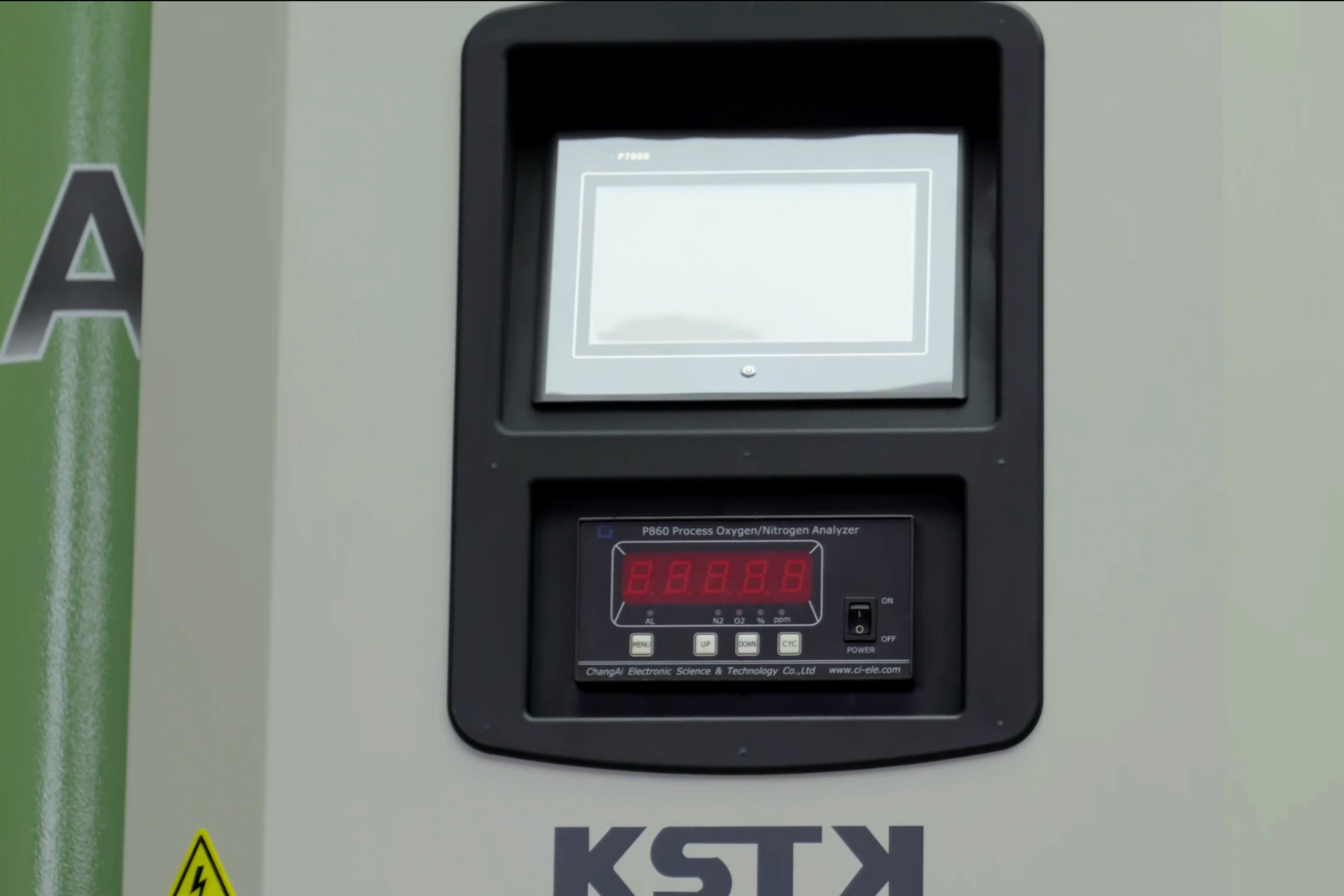

User-Friendly Touch Screen

An intuitive PLC interface delivers a smooth and efficient user experience, reducing training time and operational errors

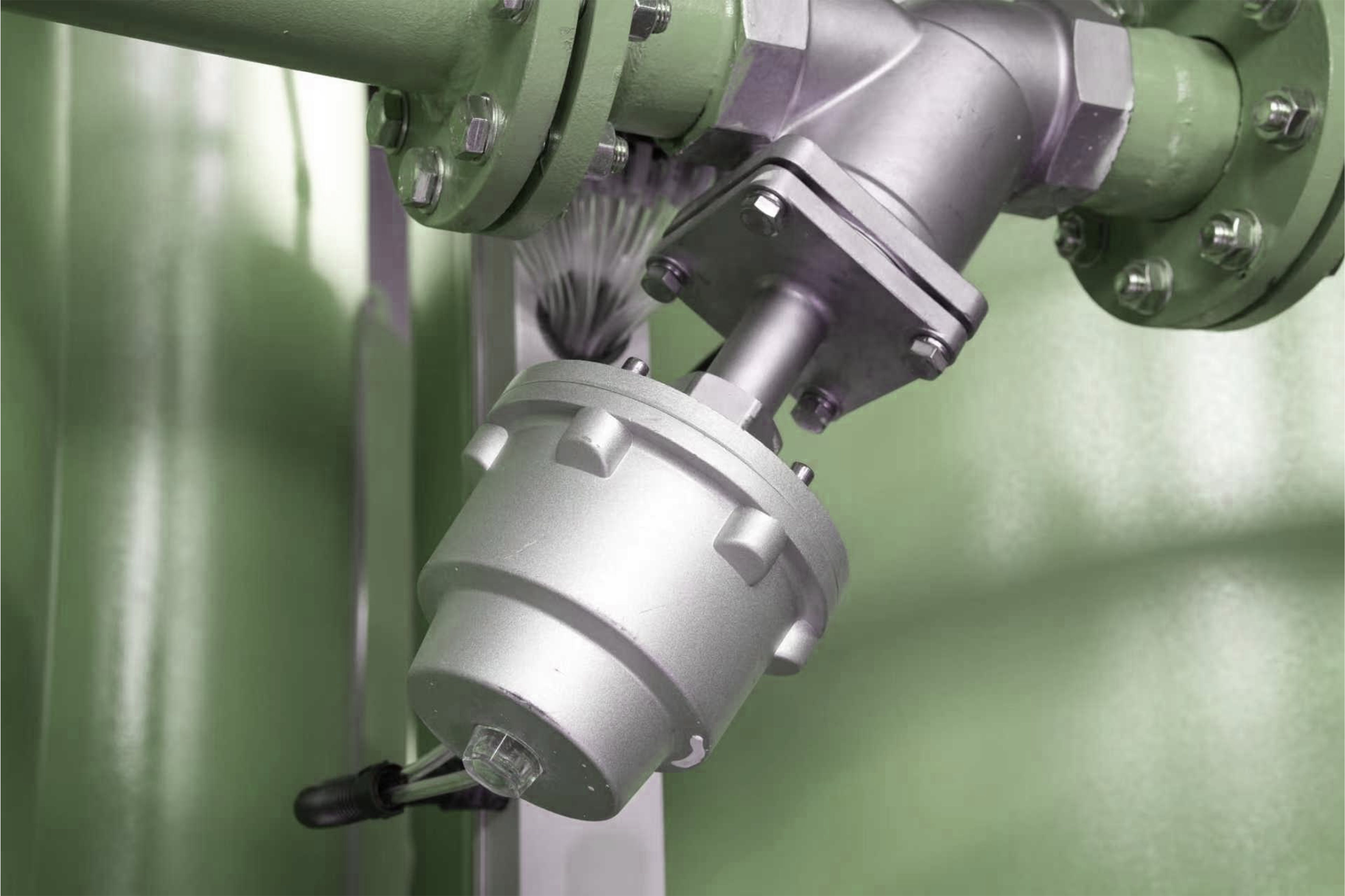

High-Quality Stainless Steel Valves

All pneumatic valves are manufactured from premium 304 stainless steel, offering high pressure resistance, corrosion protection, and over 2 million reliable switching cycles

Plug-and-Play Design

Filters, refrigerated air dryer, piping, and nitrogen generation components are fully integrated into a single enclosure, enabling rapid startup and true plug-and-play operation

Application

▔▔▔

Tire Filling

Tire inflation applications require small nitrogen flow at 95–99% purity to improve tire pressure stability, reduce oxidation, and extend tire lifespan

Fire Suppression & Inert Storage

Fire prevention and inert storage applications typically use small nitrogen volumes at 95–99% purity to reduce oxygen levels and minimize combustion risks

Additive Manufacturing

Metal additive manufacturing uses medium nitrogen consumption at 99.99–99.999% purity to maintain inert build environments and prevent powder oxidation

FAQ

▔▔▔

Why choose a combined modular nitrogen generator?

This system combines all critical components—refrigerated dryer, filtration system, air buffer tank, nitrogen buffer tank, and the modular PSA generator—into one compact, plug-and-play unit. Simply connect the air and nitrogen lines and you're ready to go. The all-in-one design improves efficiency, reduces space usage, and simplifies nitrogen supply management.
Why choose on-site nitrogen generation instead of liquid or bottled nitrogen?

On-site nitrogen generation offers lower investment and operating costs, requires less space, and is easier to manage and maintain compared to liquid or bottled nitrogen supply.
How does the operating cost of on-site nitrogen generation compare to liquid or bottled nitrogen supply?

The operating cost of on-site nitrogen generation is significantly lower due to the elimination of transportation, rental, and storage fees.
Is on-site nitrogen generation suitable for small businesses?

Yes, it’s highly suitable. With a quick return on investment, small businesses often gain greater cost advantages using on-site nitrogen generators.
How does on-site gas equipment ensure gas purity and stability?

Each unit is rigorously factory-tested to meet purity, flowrate, and performance standards. With regular maintenance, the system provides stable and reliable nitrogen output.
How is nitrogen purity ensured during operation?

High-quality carbon molecular sieves, precise valve switching, and PLC-controlled cycle timing work together to maintain stable and consistent nitrogen purity.
Can a PSA nitrogen generator operate continuously?

Yes, it is designed for 24/7 continuous operation.
How often does the adsorbent in a nitrogen generator need replacement?

With proper maintenance, the molecular sieve typically lasts up to 5 years.
What is the typical maintenance cost for a nitrogen generator?

It depends on the size and configuration of the unit.

Technical Specification

▔▔▔

Nitrogen Purity	95~99.999%
Nitrogen Flowrate	1~220Nm³/hr
Nitrogen Dew Point	-60~-30℃
Nitrogen Pressure	6～8Bar
Air Inlet Pressure	8～10Bar
Air Inlet Temperature	20～35℃
Voltage/Frequency	220v/50~60Hz

Note: Specific requirements can be made upon request

Product Specification

▔▔▔

KNA-MA

Purity: 99%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-12MA	26.4	12	15	15	KRD-015F	100	Combined	75011001788
KNA-25MA	55	25	15	15	KRD-026F	200	Combined	75013001788
KNA-38MA	83.6	38	15	15	KRD-026F	400	Standard	75011001788
KNA-51MA	112.2	51	20	15	KRD-039F	600	Standard	75011001788
KNA-77MA	169.4	77	25	20	KRD-070F	600	Standard	75011001788
KNA-128MA	281.6	128	32	25	KRD-070F	1000	Standard	75014001788
KNA-154MA	338.8	154	40	25	KRD-085F	1500	Standard	75015501788
KNA-180MA	396	180	40	40	KRD-108F	1500	Standard	75017501788

KNA-MA+

Purity: 99.5%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-11MA+	29.7	11	15	15	KRD-015F	100	Combined	75011001788
KNA-22MA+	59.4	22	15	15	KRD-026F	200	Combined	75013001788
KNA-33MA+	89.1	33	15	15	KRD-026F	300	Standard	75011001788
KNA-44MA+	118.8	44	20	15	KRD-039F	400	Standard	75011001788
KNA-66MA+	178.2	66	25	20	KRD-070F	600	Standard	75011001788
KNA-110MA+	297	110	32	20	KRD-070F	1000	Standard	75014001788
KNA-132MA+	356.4	132	40	25	KRD-085F	1500	Standard	75015501788
KNA-154MA+	415.8	154	40	25	KRD-108F	1500	Standard	75017501788

KNA-MB

Purity: 99.9%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-8MB	25.6	8	15	15	KRD-015F	100	Combined	75011001788
KNA-16MB	51.2	16	15	15	KRD-015F	200	Combined	75013001788
KNA-24MB	76.8	24	15	15	KRD-026F	200	Combined	75014801788
KNA-32MB	102.4	32	20	15	KRD-026F	300	Standard	75011001788
KNA-48MB	153.6	48	25	15	KRD-039F	600	Standard	75011001788
KNA-63MB	201.6	63	25	20	KRD-070F	600	Standard	75011001788
KNA-80MB	256	80	32	20	KRD-070F	1000	Standard	75013001788
KNA-96MB	307.2	96	40	20	KRD-070F	1000	Standard	75014001788
KNA-112MB	358.4	112	40	25	KRD-085F	1000	Standard	75015501788

KNA-MB+

Purity: 99.95%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-11MB+	39.6	11	15	15	KRD-015F	100	Combined	75013001788
KNA-20MB+	72	20	15	15	KRD-026F	200	Combined	75014801788
KNA-27MB+	97.2	27	20	15	KRD-026F	300	Standard	75011001788
KNA-41MB+	147.6	41	25	15	KRD-039F	400	Standard	75011001788
KNA-55MB+	198	55	25	20	KRD-070F	600	Standard	75013001788
KNA-69MB+	248.4	69	32	20	KRD-070F	600	Standard	75014001788
KNA-83MB+	298.8	83	32	20	KRD-070F	1000	Standard	75015501788
KNA-95MB+	342	95	40	20	KRD-085F	1000	Standard	75017501788

KNA-MC

Purity: 99.99%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-10MC	42	10	15	15	KRD-015F	100	Combined	75013001788
KNA-15MC	63	15	15	15	KRD-026F	200	Combined	75014801788
KNA-20MC	84	20	20	15	KRD-026F	200	Standard	75011001788
KNA-30MC	126	40	20	15	KRD-039F	300	Standard	75011001788
KNA-40MC	168	40	25	15	KRD-070F	400	Standard	75011001788
KNA-50MC	210	50	25	15	KRD-070F	600	Standard	75013001788
KNA-60MC	252	60	32	20	KRD-070F	600	Standard	75014001788
KNA-70MC	294	70	32	20	KRD-085F	600	Standard	75015501788

KNA-MC+

Purity: 99.995%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-7MC+	31.5	7	15	15	KRD-015F	100	Combined	75013001788
KNA-13MC+	58.5	13	15	15	KRD-026F	200	Combined	75014801788
KNA-18MC+	81	8	20	15	KRD-026F	200	Standard	75011001788
KNA-26MC+	117	26	20	15	KRD-039F	300	Standard	75011001788
KNA-35MC+	157.5	35	25	15	KRD-039F	400	Standard	75013001788
KNA-44MC+	198	44	25	15	KRD-070F	400	Standard	75014001788
KNA-53MC+	238.5	53	25	20	KRD-070F	600	Standard	75015501788
KNA-62MC+	279	62	32	20	KRD-085F	600	Standard	75017501788

KNA-MD

Purity: 99.999%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-6MD	31.2	6	15	15	KRD-015F	50	Combined	75013001788
KNA-10MD	52	10	15	15	KRD-026F	100	Combined	75014801788
KNA-14MD	72.8	14	20	15	KRD-026F	150	Combined	75011001788
KNA-20MD	104	20	20	15	KRD-039F	200	Standard	75011001788
KNA-28MD	145.6	28	25	15	KRD-039F	300	Standard	75013001788
KNA-35MD	182	35	25	15	KRD-070F	400	Standard	75014001788
KNA-42MD	210	42	25	15	KRD-070F	400	Standard	75015501788
KNA-50MD	260	50	32	15	KRD-070F	600	Standard	75017501788
