Ever wondered how industries keep their compressed air dry and free from moisture? Enter adsorption air dryers. These devices are essential for maintaining moisture-free compressed air, crucial for various industrial processes. In this post, you'll learn what adsorption air dryers are, their importance, and how they benefit industrial applications.
Adsorption air dryers work by attracting and holding moisture from compressed air onto the surface of a solid material called a desiccant. Unlike absorption, where moisture penetrates into a material, adsorption traps water vapor on the surface. This process effectively lowers the moisture content in the air, producing dry compressed air essential for sensitive industrial applications. The desiccant acts like a sponge, capturing water molecules as air passes through the dryer.
Common desiccants include:
Silica Gel: Known for high adsorption capacity and regenerability.
Activated Alumina: Durable, effective at low dew points.
Molecular Sieves: Provide the lowest dew points but are more expensive.
Each desiccant type offers unique benefits, depending on the required dryness level and operating conditions. The choice affects efficiency, maintenance frequency, and cost. For example, molecular sieves are ideal for ultra-dry air needs, such as in pharmaceuticals or electronics manufacturing.

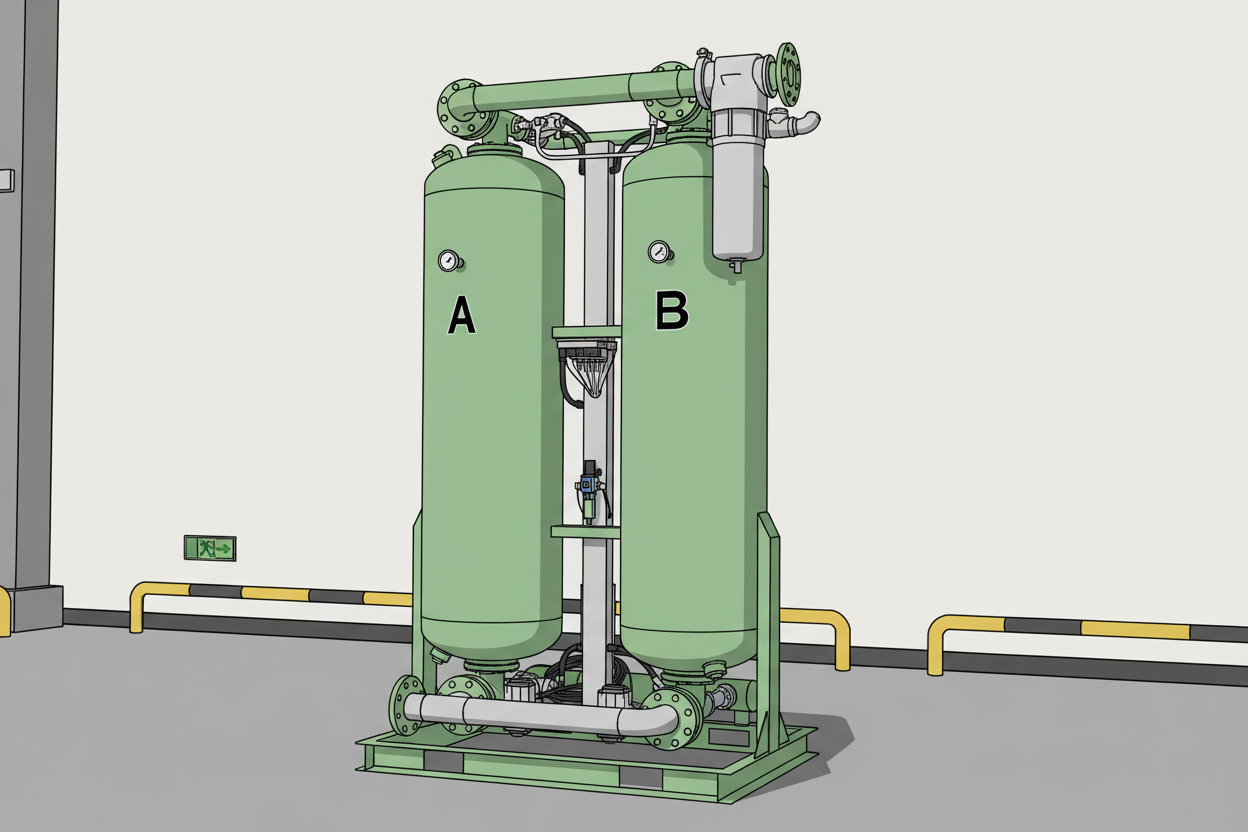

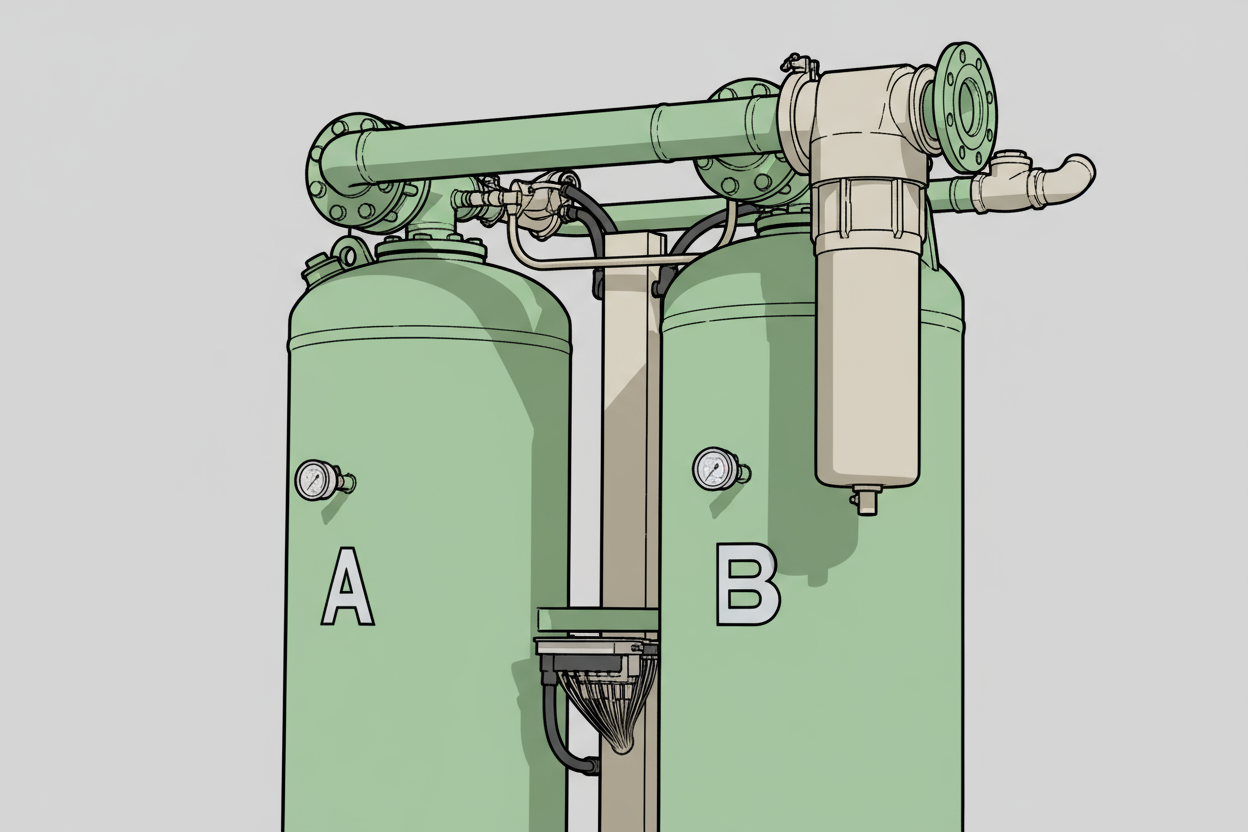

Adsorption dryers use two chambers filled with desiccant that alternate between drying and regeneration:
Drying Phase: Compressed air flows through the first chamber. The desiccant adsorbs moisture, lowering the air’s pressure dew point, sometimes as low as -40°C or below. This ensures the air is dry enough for critical processes.
Regeneration Phase: While the first chamber dries air, the second chamber undergoes regeneration. A small portion of dry air, often 3-15% of the total flow, expands and passes through the desiccant to remove the adsorbed moisture. This moisture-laden air is then vented out.
After a set time, the chambers switch roles, ensuring continuous supply of dry air. This cyclic process balances moisture removal and desiccant renewal, maintaining system efficiency.
Note: Selecting the right desiccant material and maintaining proper regeneration cycles are key to maximizing adsorption dryer performance and minimizing energy use.
Adsorption air dryers come in several types, each designed to meet specific industrial needs. Understanding these types helps you choose the best dryer for your application, balancing efficiency, cost, and performance.
Heatless dryers operate without external heat. They use a small portion of the dried compressed air—typically 10-15%—to regenerate the desiccant by purging moisture. The process cycles between two towers: one drying air, the other regenerating. These dryers are simple, reliable, and have lower initial costs. However, they consume more compressed air during regeneration, which can impact energy efficiency in large systems.
Heated dryers apply external heat to regenerate the desiccant, reducing compressed air loss during regeneration to about 6%. The heat helps drive moisture off the desiccant more efficiently than heatless dryers. This results in lower operating costs and better energy savings. They are suitable for larger or continuous operations where energy efficiency is a priority.
Blower purge dryers use a blower to push ambient air through a heater and then through the desiccant bed for regeneration. This method uses almost no compressed air for regeneration, relying instead on the blower to supply the purge air. It achieves very low purge rates, typically 2-3%, making it highly energy efficient. These dryers are ideal for high-capacity systems where minimizing compressed air loss is crucial.
HOC dryers use the heat generated by the compressor itself to regenerate the desiccant. This method recycles energy within the system, eliminating the need for external heaters or purge air for regeneration. HOC dryers are especially efficient for oil-free compressors and systems operating continuously. They provide significant energy savings and reduce operating costs, though they tend to have higher upfront costs and require specific system compatibility.
Tip: When selecting an adsorption dryer type, consider your system's size and energy costs, as blower purge and heated dryers offer better efficiency for large-scale operations, while heatless dryers suit smaller or less frequent uses.
In pharmaceutical and medical fields, dryness and purity of compressed air are crucial. Adsorption air dryers ensure moisture-free air, preventing contamination in drug manufacturing and medical device production. Moisture can cause microbial growth or chemical reactions, compromising product safety. These dryers maintain stringent air quality standards, supporting cleanroom environments and sterile processes.
Food and beverage production relies on dry compressed air to preserve product quality and hygiene. Adsorption dryers remove moisture that could lead to spoilage or bacterial growth during packaging or processing. For example, in bottling plants, dry air prevents condensation inside containers, extending shelf life. They also protect pneumatic equipment from rust and reduce maintenance needs, ensuring smooth operations.
Electronics and semiconductor industries demand ultra-dry air to avoid moisture-induced defects. Water vapor can cause corrosion or short circuits in sensitive components. Adsorption air dryers provide extremely low dew points, often below -40°C, essential for manufacturing semiconductors, printed circuit boards, and microchips. This dryness enhances product reliability and yield, reducing costly rework or failures.
In automotive production and painting, dry air prevents surface defects like blistering, bubbling, or uneven finishes. Adsorption dryers eliminate moisture that can mix with paint or coatings, ensuring smooth, high-quality results. They also protect pneumatic tools and spray guns from corrosion, improving tool life and reducing downtime. This is critical in body shops and assembly lines where finish quality impacts product value.
Instrumentation and control systems require dry compressed air to function accurately. Moisture can cause sensor errors, corrosion, or valve malfunctions, affecting process control. Adsorption air dryers help maintain precise air quality, ensuring reliable operation of instruments in industries such as chemical processing, power generation, and automation. This leads to better process stability and reduced maintenance costs.
Tip: For industries with strict air quality demands, pairing adsorption air dryers with proper filtration ensures maximum protection against moisture and contaminants.
Adsorption air dryers excel at producing air with very low pressure dew points, often reaching -40°C or even lower. This means the air contains minimal moisture, crucial for processes sensitive to water vapor. Low dew points prevent condensation inside pipelines and equipment, especially in cold environments where moisture could freeze and cause blockages or damage. For industries like pharmaceuticals or electronics, where even tiny moisture amounts can cause defects, adsorption dryers ensure the dry air needed to maintain quality and safety.
Moisture in compressed air systems leads to corrosion inside pipes, valves, and tools, shortening equipment life and increasing maintenance costs. Adsorption dryers remove water vapor effectively, stopping rust formation and protecting downstream equipment. They also prevent contamination caused by microbial growth or chemical reactions triggered by moisture. This is vital in food, beverage, and medical industries, where product purity and hygiene standards are strict. By keeping air dry, adsorption dryers help maintain clean, contaminant-free environments.
Dry compressed air reduces the risk of equipment failures caused by moisture-related issues. Adsorption dryers contribute to stable system performance by preventing water accumulation that can cause pressure drops and blockages. This reliability means less downtime and fewer repairs, which translates into higher productivity and lower operational costs. Industries relying on precise instrumentation or automated controls benefit greatly, as dry air ensures sensors and valves work correctly without moisture interference.
Modern adsorption dryers often include energy-efficient technologies that reduce operating costs. For example, dew point sensors monitor air dryness and adjust regeneration cycles accordingly, avoiding unnecessary energy use. Heated purge systems can recover energy from compressed air during desiccant regeneration, further cutting power consumption. Some dryers use blower purge or heat of compression methods to minimize compressed air loss during regeneration. These features optimize energy use without compromising air quality, making adsorption dryers both effective and economical.
Tip: To maximize savings, select adsorption dryers with smart controls that adapt regeneration to actual moisture levels, reducing wasted compressed air and energy.
Installing an adsorption air dryer correctly is crucial for optimal performance and longevity. Start by placing the dryer after the air compressor, air receiver tank, and filters. This sequence ensures the air entering the dryer is free from oil, dirt, and large moisture droplets, protecting the desiccant material. Position the dryer in a clean, dry, and well-ventilated area to help maintain stable operating temperatures and prevent overheating.
Ensure all piping connections are tight and leak-free to avoid pressure drops and loss of efficiency. Use flexible connectors to reduce vibration transmission from the compressor. Also, install proper drainage systems downstream to remove any condensate that may still form. Follow manufacturer guidelines for electrical connections and control wiring to ensure safety and functionality.
Regular maintenance keeps adsorption dryers running efficiently. Begin by inspecting the system for air leaks, which can waste energy and reduce drying capacity. Check valves, seals, and fittings for wear or damage and replace any faulty parts promptly.
Clean or replace pre-filters and after-filters as needed to prevent contaminants from reaching the desiccant. Monitor pressure dew points regularly; a rise may indicate desiccant saturation or system issues. Keep an eye on the control panel and sensors for error messages or irregular readings.
Lubricate moving parts if the dryer design requires it, and ensure regeneration cycles operate as programmed. Properly timed regeneration avoids desiccant over-saturation and maintains dry air output.
The desiccant material is the heart of an adsorption dryer and requires periodic replacement. Over time, desiccants lose their adsorption capacity due to contamination, mechanical breakdown, or chemical exposure. The replacement interval depends on operating conditions but typically ranges from 1 to 3 years.
When changing desiccant, follow safety protocols to avoid dust inhalation or exposure. Dispose of used desiccant according to local regulations. After replacement, perform system checks to verify proper air flow, pressure, and dew point levels.
Additionally, test the function of all valves, timers, and sensors to ensure proper switching between drying and regeneration phases. Regularly scheduled maintenance and timely desiccant replacement prevent unplanned downtime and costly repairs.
Tip: Schedule routine inspections and desiccant changes based on your dryer’s operating hours and manufacturer recommendations to maintain peak drying performance and energy efficiency.
Selecting the proper adsorption air dryer is critical for system performance and cost-effectiveness. Several factors come into play, including air quality needs, operational efficiency, environmental conditions, and budget. Let’s explore these factors in detail to help you make an informed choice.
First, determine the level of dryness your application demands. Different industries require various pressure dew points (PDP):
General industrial use: PDP around -20°C may suffice.
Sensitive processes (pharmaceutical, electronics): PDP as low as -40°C or -70°C is needed.
Extreme moisture-sensitive environments: Ultra-low dew points ensure zero moisture presence.
Knowing this helps you select a dryer type and desiccant material capable of achieving the required dryness. Also, consider air purity standards such as ISO 8573-1 classes, which specify acceptable moisture levels.
Energy consumption and air loss during regeneration significantly impact operational costs. Here’s how dryer types compare:
Heatless dryers: Simple but purge 10-15% of dry air, increasing energy use.
Heated dryers: Use external heat, reducing purge air to about 6%.
Blower purge dryers: Use ambient air for regeneration, minimizing compressed air loss to 2-3%.
Heat of Compression (HOC) dryers: Recycle compressor heat, eliminating purge air use.
For large-scale or continuous operations, energy-efficient options like blower purge or HOC dryers lower costs. Smaller systems might prioritize lower upfront costs, favoring heatless dryers.
Ambient temperature and humidity affect dryer performance:
High humidity or temperature: May require more frequent regeneration or robust desiccants.
Cold environments: Demand ultra-low dew points to prevent freezing in pipelines.
Space constraints or ventilation: Influence dryer placement and cooling method choice.
Ensure the dryer can operate reliably under your site’s conditions, including variations throughout the year.
Balance initial investment against long-term operating costs:
Heatless dryers: Lower purchase price but higher energy costs.
Heated and blower purge dryers: Higher upfront cost, lower running expenses.
HOC dryers: Highest initial cost but offer significant energy savings over time.
Factor in maintenance costs, desiccant replacement frequency, and potential downtime expenses. Sometimes paying more upfront results in better total cost of ownership.
Tip: Match dryer selection to your specific air quality needs and operational scale to optimize both performance and cost-effectiveness. Consulting with compressed air experts ensures the best fit for your system.
Adsorption air dryers offer significant benefits, including achieving low pressure dew points and preventing corrosion. They're essential in industries like pharmaceuticals and electronics, ensuring moisture-free environments. For optimal selection, consult experts to match air quality needs with operational efficiency. The KSTK product line provides reliable adsorption air dryers, known for their energy-saving features and robust performance. Trust KSTK to deliver value with advanced solutions tailored to your industrial requirements.
A: An Adsorption Air Dryer removes moisture from compressed air using a desiccant material, ensuring dry air for sensitive applications.
A: Adsorption Air Dryers ensure moisture-free air in pharmaceuticals, preventing contamination and maintaining product safety.
A: Blower purge dryers minimize compressed air loss during regeneration, making them energy-efficient for high-capacity systems.
A: Desiccant replacement typically occurs every 1 to 3 years, depending on operating conditions and dryer usage.
