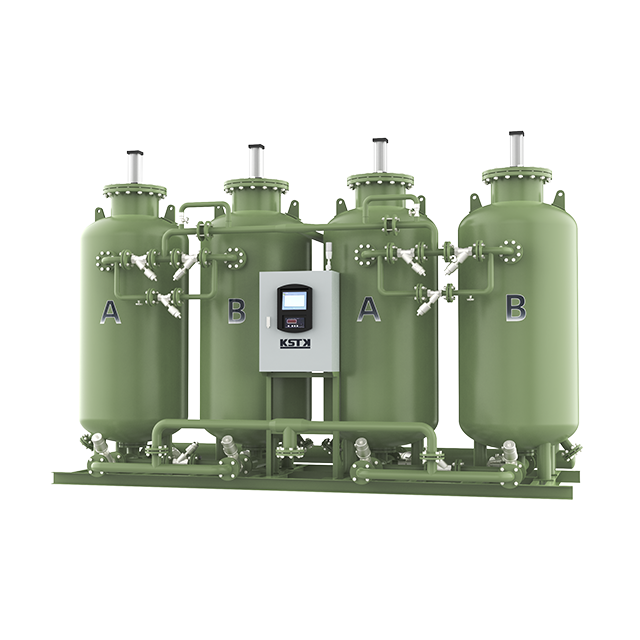

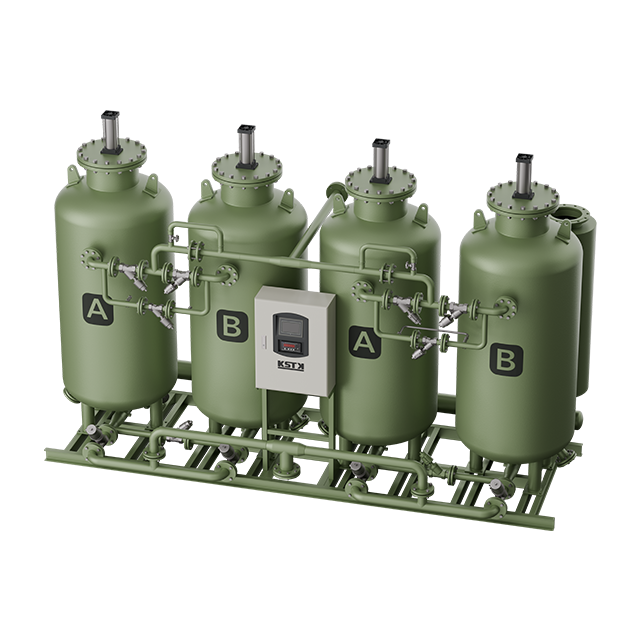

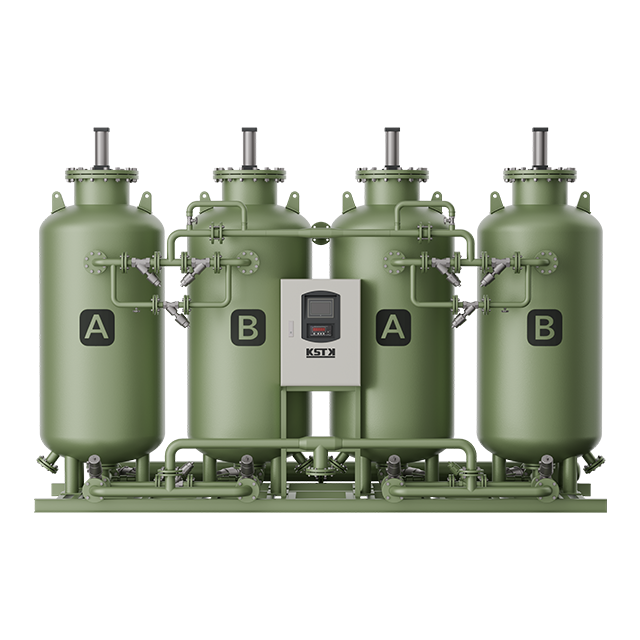

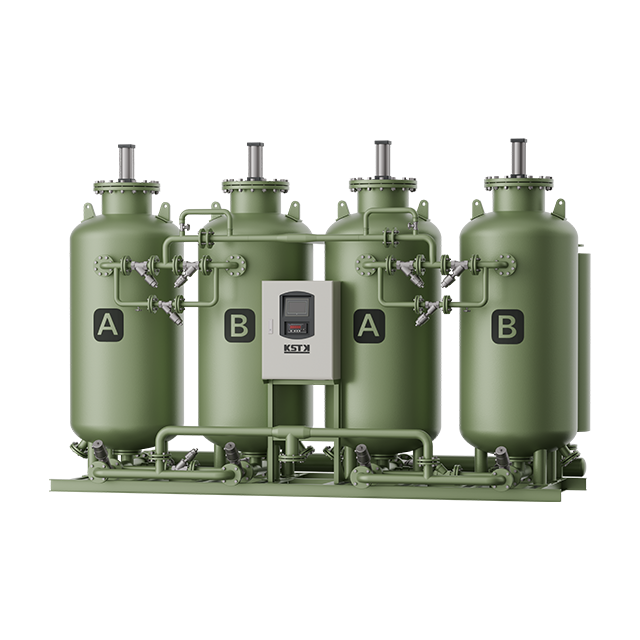

Quad-Tower Nitrogen Generator

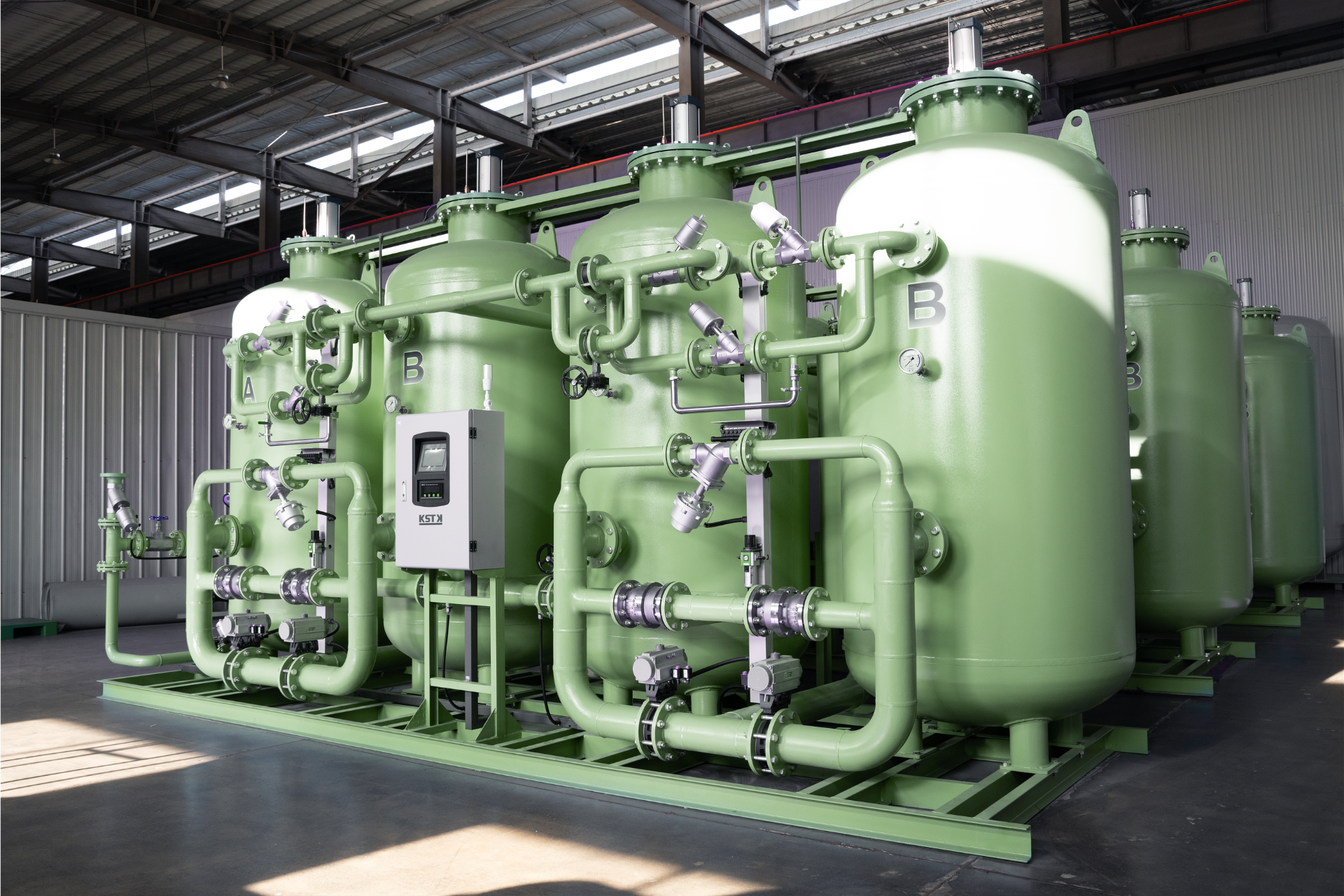

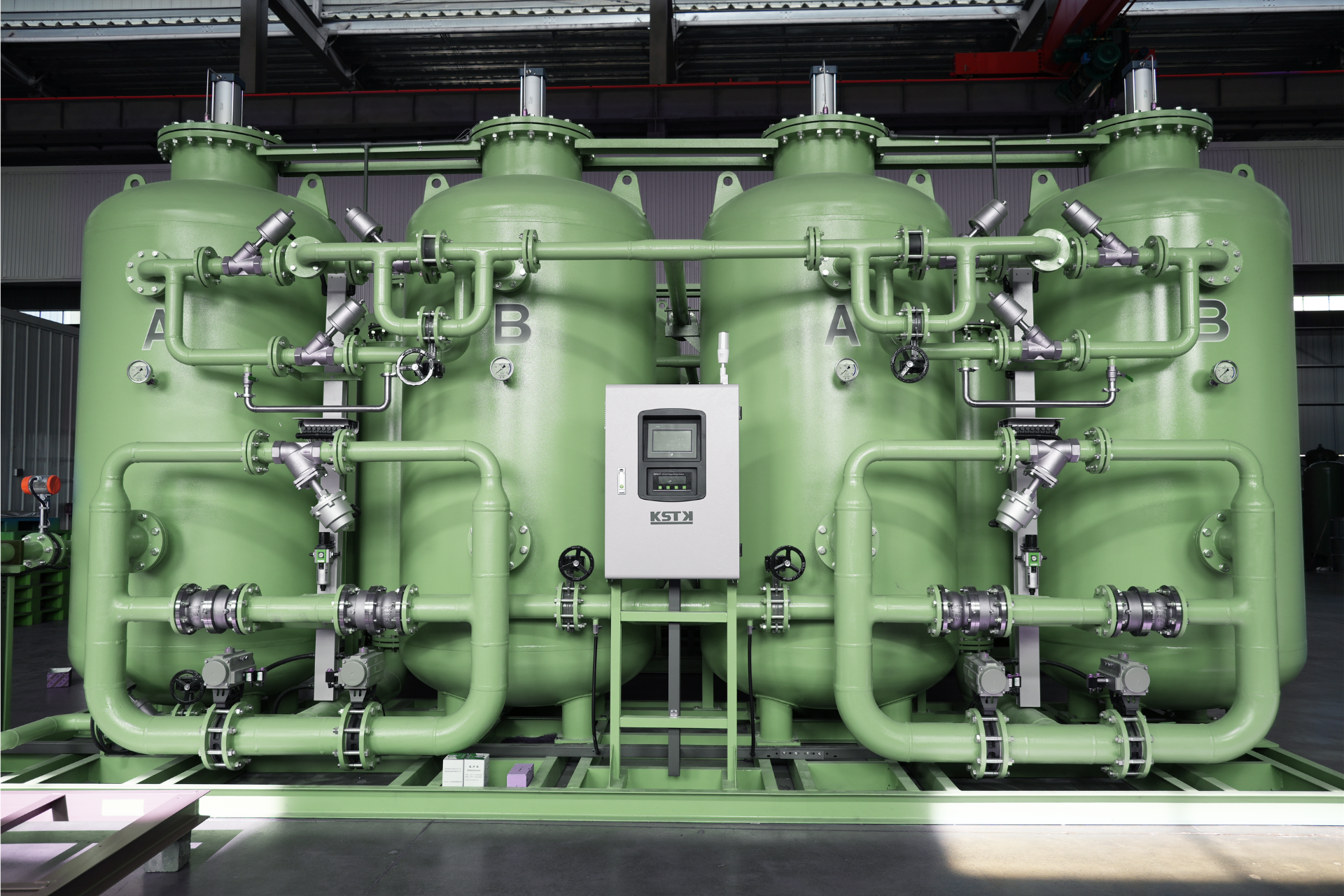

Our quad-tower system integrates two sets of adsorption vessels into a single unit, replacing the traditional dual-tower setup. This design significantly simplifies the system structure, reduces footprint and installation costs, and greatly minimizes operational and maintenance complexity. The integrated system not only enhances operational efficiency and stability but also eliminates potential issues arising from multi-device coordination, making it a more economical and efficient all-in-one solution.


Availability:



INQUIRY

Benefits

▔▔▔

Product Characteristic

▔▔▔

Intelligent Alarm System

A dual-warning system combining audible alarms and flashing indicators enables rapid detection of equipment anomalies, ensuring continuous and safe operation for the equipment.

Automatic Venting System

Our automatic venting system expels unqualified gas and redirects purified gas once purity levels are met, ensuring uninterrupted, reliable gas supply for clients.

Reliable Valves

Our pneumatic valves are made from premium 304 stainless steel, engineered for high pressure and corrosion resistance, delivering over 2 million cycles of reliable performance.

Premium Absorbents

Our custom-engineered molecular sieves offer superior adsorption function and great packing density, delivering higher efficiency, longer lifespan, and unmatched purity and stability.

Multi-Function PLC

Our advanced PLC features an intuitive interface with seamless connectivity (RS485 & Ethernet), along with remote control, monitoring capabilities, and multi-status, multilingual display.

Patented Valve Manifold Design

Our patented modular valve manifold uses its unit structure design to enhance system efficiency, minimize leakage risks, and simplify maintenance, ensuring optimal operational stability.

FAQ

▔▔▔

Why choose on-site nitrogen generation instead of liquid or bottled nitrogen?

On-site nitrogen generation offers lower investment and operating costs, requires less space, and is easier to manage and maintain compared to liquid or bottled nitrogen supply.
How does the operating cost of on-site nitrogen generation compare to liquid or bottled nitrogen supply?

The operating cost of on-site nitrogen generation is significantly lower due to the elimination of transportation, rental, and storage fees.
Is on-site nitrogen generation suitable for small businesses?

Yes, it’s highly suitable. With a quick return on investment, small businesses often gain greater cost advantages using on-site nitrogen generators.
How does on-site gas equipment ensure gas purity and stability?

Each unit is rigorously factory-tested to meet purity, flowrate, and performance standards. With regular maintenance, the system provides stable and reliable nitrogen output.
What is PSA?

Pressure Swing Adsorption (PSA) is a gas separation technology that relies on the different adsorption properties of gas molecules on adsorbents like carbon molecular sieves. It uses air as the raw material to selectively remove oxygen, allowing for the efficient separation and production of nitrogen.
Can a PSA nitrogen generator operate continuously?

Yes, it is designed for 24/7 continuous operation.
How often does the adsorbent in a nitrogen generator need replacement?

With proper maintenance, the molecular sieve typically lasts up to 5 years.
What is the typical maintenance cost for a nitrogen generator?

It depends on the size and configuration of the unit.

Technical Specification

▔▔▔

Nitrogen Purity	95~99.9999%
Nitrogen Flowrate	1~3000Nm³
Nitrogen Dew Point	-60~-30℃
Nitrogen Pressure	6~8Bar
Air Inlet Pressure	8~10Bar
Air Inlet Temperature	20~35℃
Voltage/Frequency	220v/50~60Hz

Note: Specific requirements can be made upon request

Product Specification

▔▔▔

KNA-SA

Purity: 99%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-10SA	22.5	10	15	15	KRD-015F	Combined
KNA-20SA	45.0	20	15	15	KRD-015F	Combined
KNA-30SA	67.5	30	20	15	KRD-026F	Combined
KNA-60SA	135	60	25	25	KRD-039F	Combined
KNA-100SA	225	100	32	25	KRD-070F	Standard
KNA-150SA	337.5	150	40	25	KRD-085F	Standard
KNA-300SA	675	300	50	40	KRD-140F	Standard
KNA-600SA	1350	600	65	50	KRD-290F	Standard
KNA-1000SA	2250	1000	100	65	KRD-460F	Standard
KNA-1500SA	3375	1500	100	65	KRD-750F	Standard

KNA-SA+

Purity: 99.5%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-10SA+	27	10	15	15	KRD-015F	Combined
KNA-20SA+	54	20	15	15	KRD-026F	Combined
KNA-30SA+	81	30	20	15	KRD-026F	Combined
KNA-60SA+	162	60	25	20	KRD-039F	Combined
KNA-100SA+	270	100	32	25	KRD-070F	Standard
KNA-150SA+	405	150	40	32	KRD-108F	Standard
KNA-300SA+	810	300	50	40	KRD-220F	Standard
KNA-600SA+	1620	600	65	50	KRD-365F	Standard
KNA-1000SA+	2700	1000	100	65	KRD-550F	Standard
KNA-1500SA+	4050	1500	125	65	KRD-800W	Standard

KNA-SB

Purity: 99.9%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-10SB	33	10	15	15	KRD-015F	Combined
KNA-20SB	66	20	15	15	KRD-026F	Combined
KNA-30SB	99	30	20	15	KRD-026F	Combined
KNA-60SB	198	60	32	20	KRD-070F	Standard
KNA-100SB	330	100	40	25	KRD-085F	Standard
KNA-150SB	495	150	40	32	KRD-140F	Standard
KNA-300SB	990	300	50	40	KRD-250F	Standard
KNA-600SB	1980	600	80	50	KRD-420F	Standard
KNA-1000SB	3300	1000	100	65	KRD-700F	Standard

KNA-SB+

Purity: 99.95%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-10SB+	37	10	15	15	KRD-015F	Combined
KNA-20SB+	74	20	20	15	KRD-026F	Combined
KNA-30SB+	111	30	20	15	KRD-039F	Combined
KNA-60SB+	222	60	25	20	KRD-070F	Standard
KNA-100SB+	370	100	40	25	KRD-108F	Standard
KNA-150SB+	555	150	50	32	KRD-140F	Standard
KNA-300SB+	1110	300	65	40	KRD-250F	Standard
KNA-600SB+	2220	600	80	50	KRD-460F	Standard
KNA-1000SB+	3700	1000	100	65	KRD-800W	Standard

KNA-SC

Purity: 99.99%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-5SC	21	5	15	15	KRD-015F	Combined
KNA-10SC	42	10	15	15	KRD-015F	Combined
KNA-20SC	84	20	20	15	KRD-026F	Combined
KNA-30SC	126	30	25	15	KRD-039F	Combined
KNA-60SC	252	60	32	20	KRD-070F	Standard
KNA-100SC	420	100	40	20	KRD-108F	Standard
KNA-150SC	630	150	50	25	KRD-170F	Standard
KNA-200SC	840	200	50	40	KRD-220F	Standard
KNA-300SC	1260	300	65	40	KRD-290F	Standard
KNA-600SC	2520	600	100	50	KRD-550F	Standard

KNA-SC+

Purity: 99.995%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-5SC+	23	5	15	15	KRD-015F	Combined
KNA-10SC+	46	10	15	15	KRD-026F	Combined
KNA-20SC+	92	20	20	15	KRD-026F	Combined
KNA-30SC+	138	30	25	15	KRD-039F	Combined
KNA-60SC+	276	60	32	20	KRD-070F	Standard
KNA-100SC+	460	100	40	20	KRD-108F	Standard
KNA-200SC+	920	200	50	40	KRD-220F	Standard
KNA-300SC+	1380	300	65	40	KRD-326F	Standard
KNA-500SC+	2300	500	100	50	KRD-500F	Standard
KNA-600SC+	2760	600	100	50	KRD-600F	Standard

KNA-SD

Purity: 99.999%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-5SD	26	5	15	15	KRD-015F	Combined
KNA-10SD	52	10	15	15	KRD-026F	Combined
KNA-20SD	104	20	20	15	KRD-039F	Combined
KNA-30SD	156	30	25	15	KRD-039F	Combined
KNA-60SD	312	60	40	20	KRD-085F	Standard
KNA-100SD	520	100	50	20	KRD-140F	Standard
KNA-200SD	1040	200	65	40	KRD-250F	Standard
KNA-300SD	1560	300	65	40	KRD-365F	Standard
