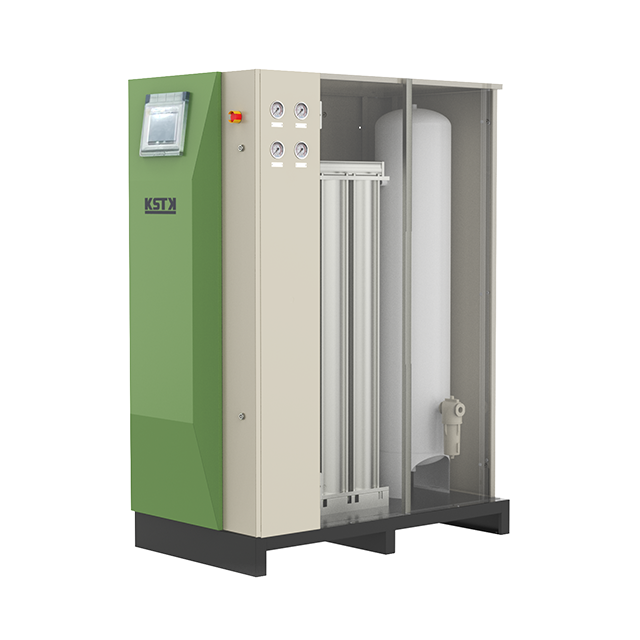

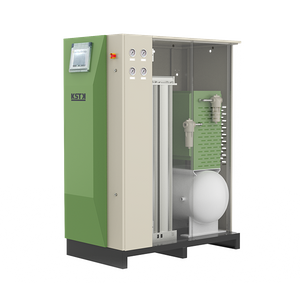

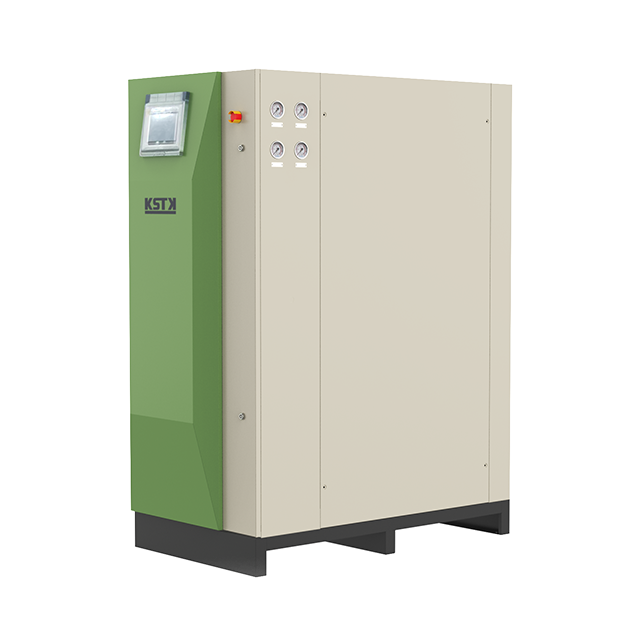

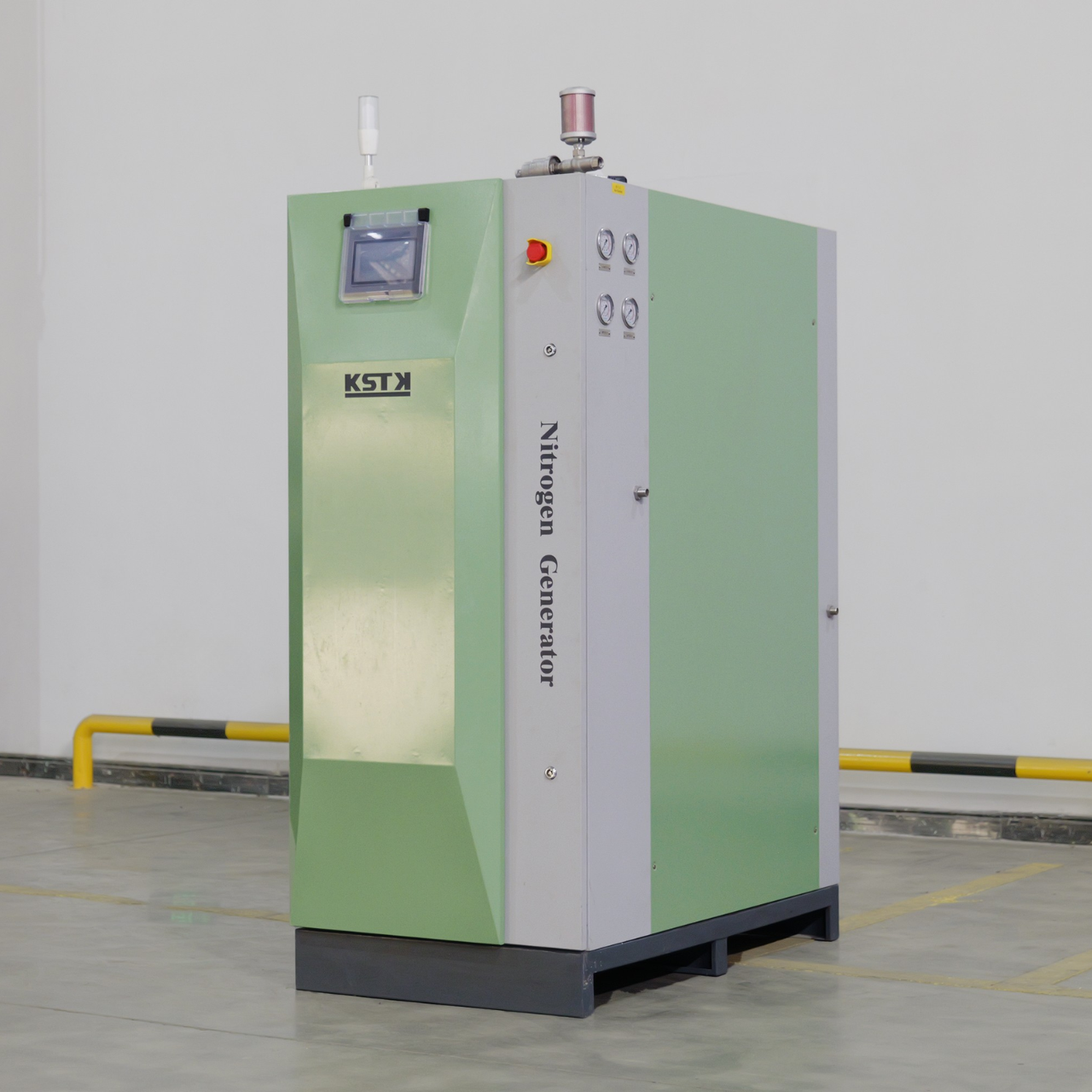

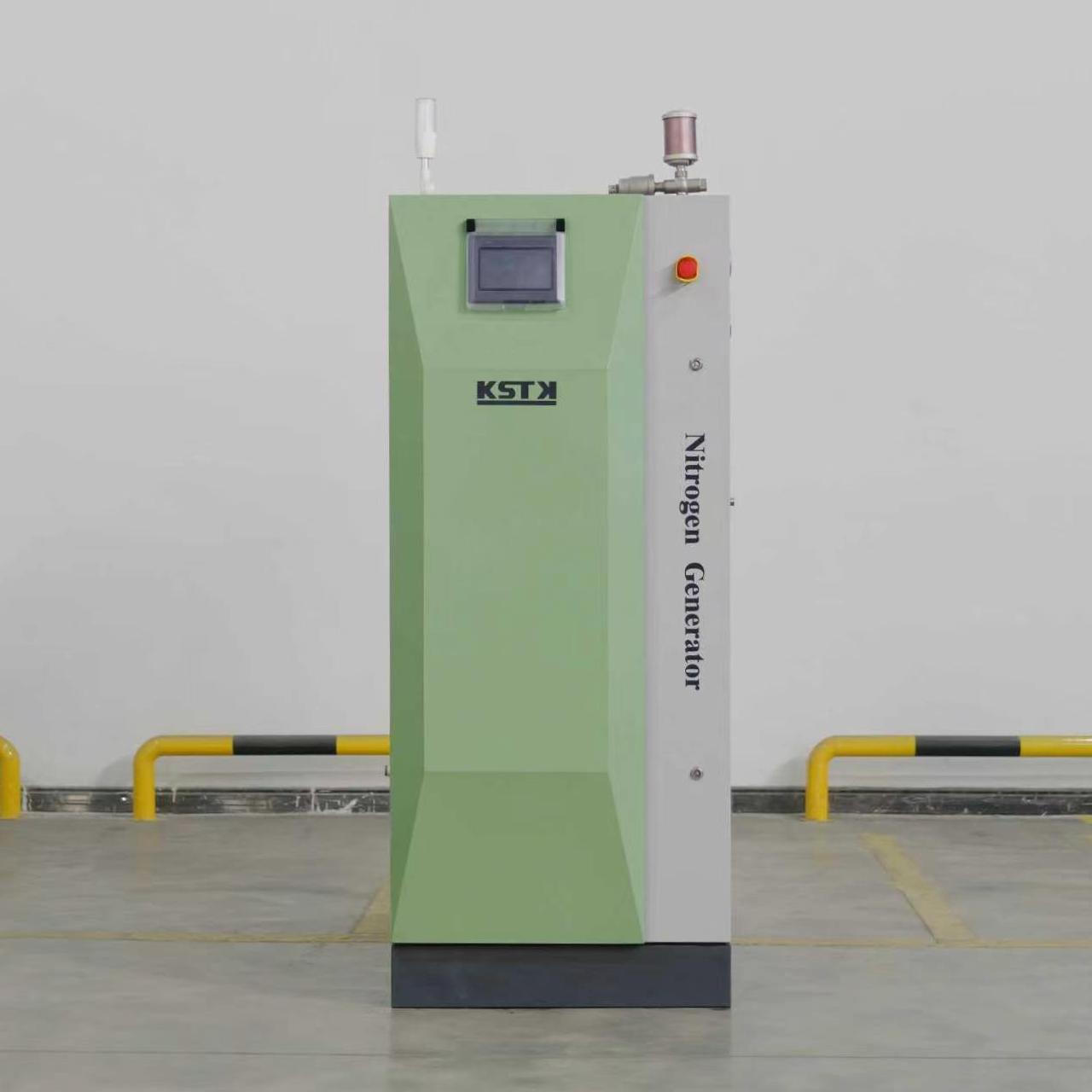

Modular Nitrogen Generator

Unlike traditional multi-tower nitrogen generators, the new modular nitrogen generator features high-quality aluminum extrusion profile components, offering a more compact design and superior performance. Its innovative system architecture significantly simplifies the equipment structure, reducing both footprint and installation costs. The flexible design allows the unit to be easily placed anywhere in the production facility, providing you with an efficient and hassle-free nitrogen generation experience.


Availability:



INQUIRY

Benefits

▔▔▔

● Compact footprint design maximizes space efficiency in industrial facilities.

Space-Saving Layout
● Expandable up to three module banks, allowing flexible capacity growth as nitrogen demand increases

Scalable Capacity
● Optimized structure design and intelligent logic control achieve equivalent output with lower installation and operating costs

Optimized System Design
● Short payback period compared to the high ongoing cost of liquid nitrogen supply

Fast ROI

Product Characteristic

▔▔▔

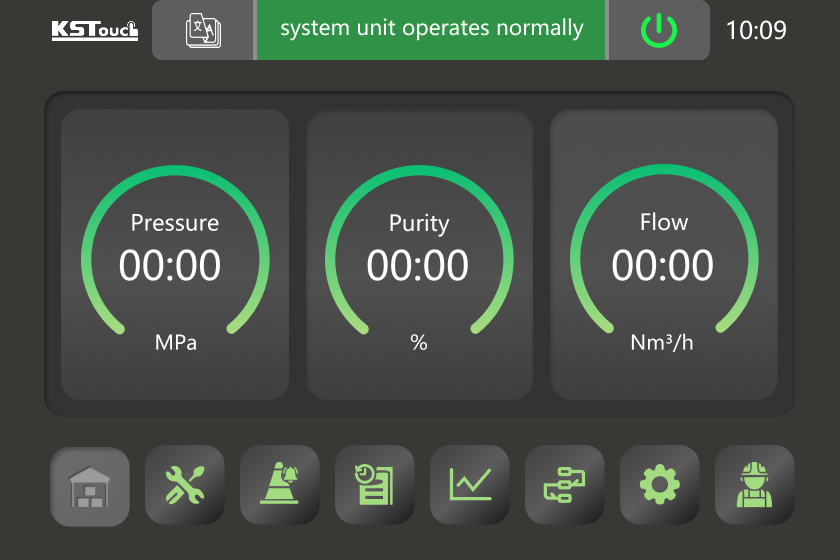

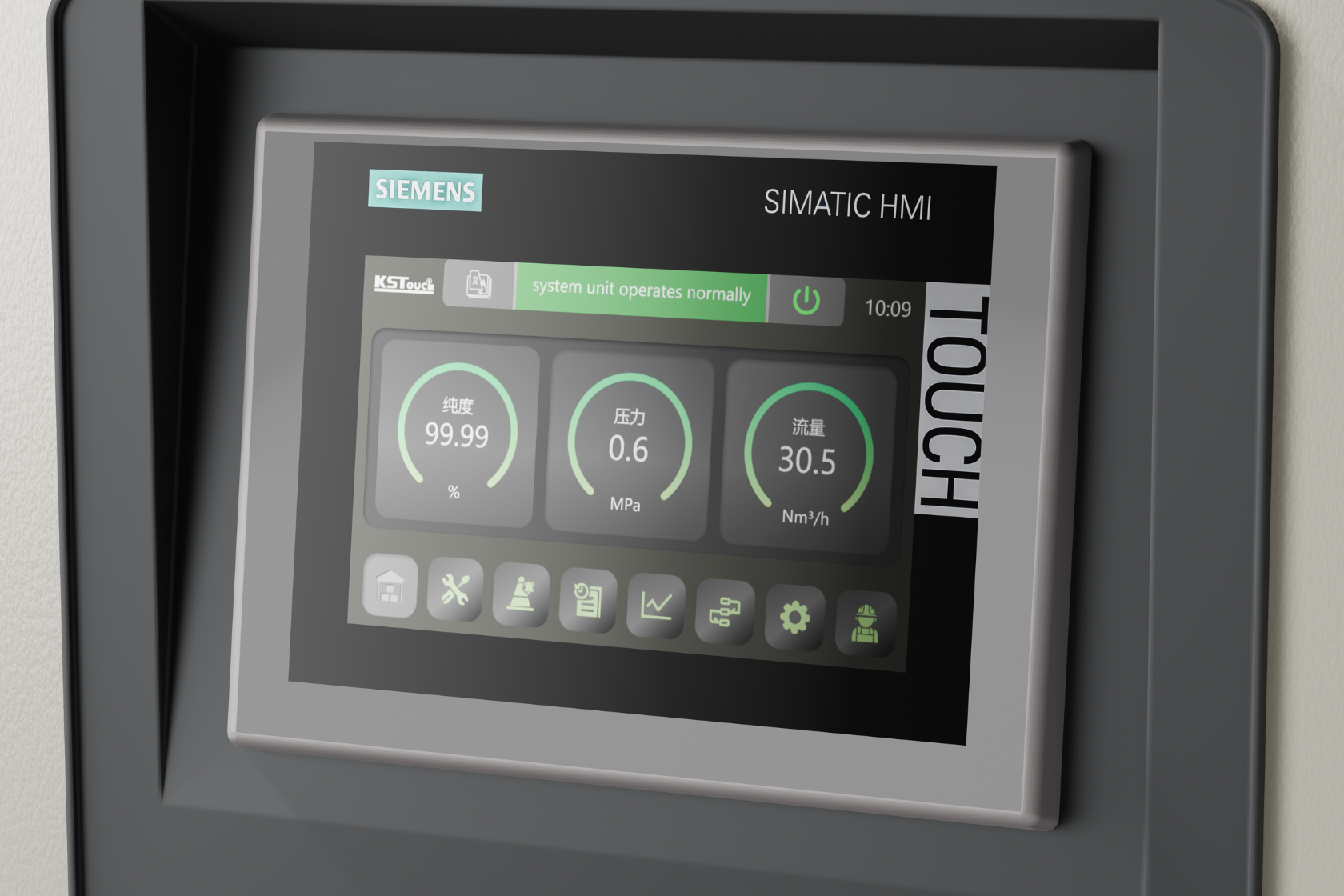

Real-Time Data Monitoring

The PLC continuously tracks system status, alarms, and performance data, providing full visibility into operating conditions

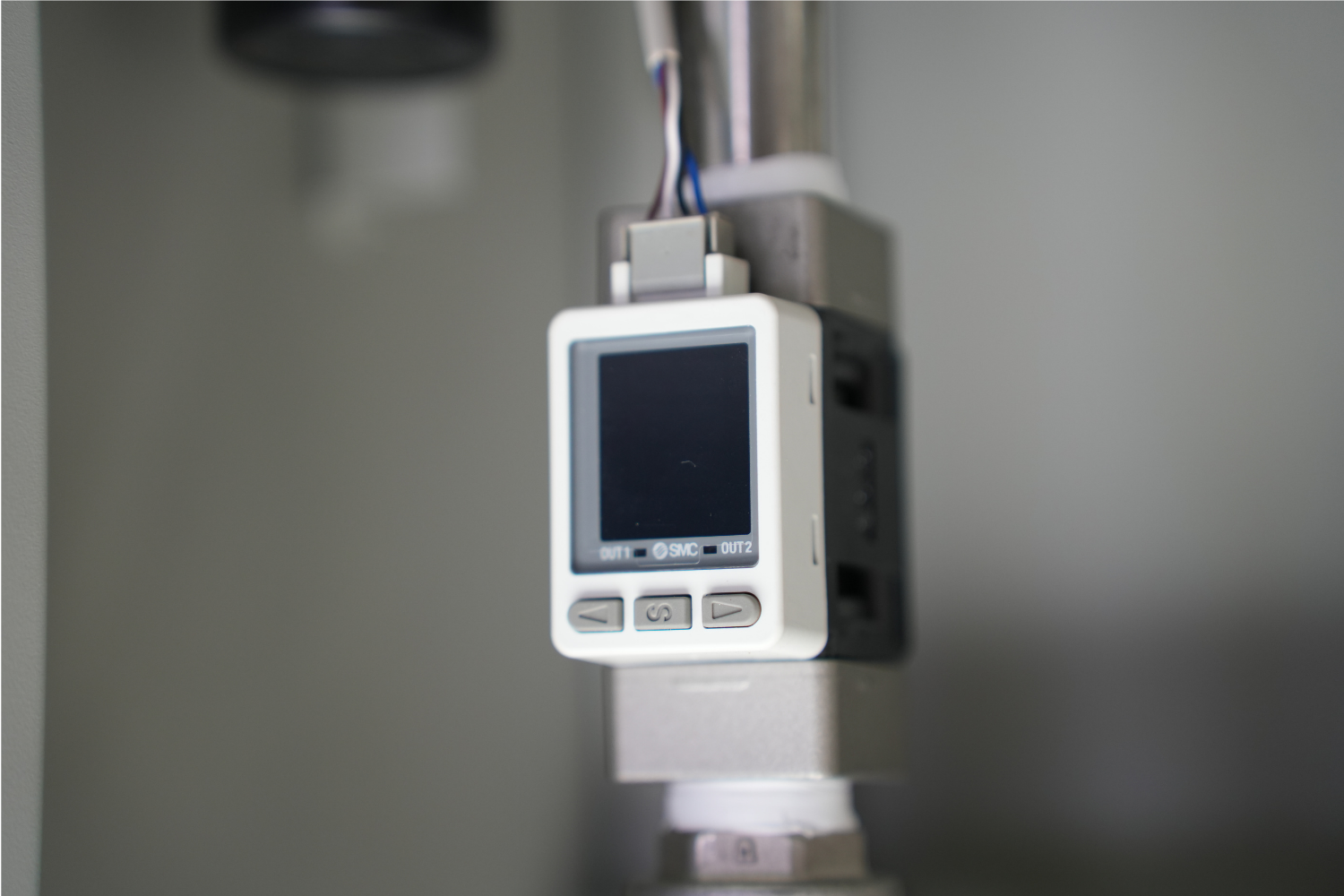

Flexible Flow Adjustment

Nitrogen flow rate can be easily adjusted to match real-time production needs, ensuring optimal efficiency across varying operating conditions

High Purity Output

Achieves nitrogen purity up to 99.999% with a single standalone unit, meeting the most demanding industrial and process requirements

Application

▔▔▔

Food Packaging

Modified atmosphere packaging lines usually consume 50–200 Nm³/h of nitrogen at 99–99.9% purity to extend shelf life and preserve food quality

Electronics Assembly & SMT

Electronics and SMT soldering processes require moderate nitrogen volumes at 99.9–99.99% purity to reduce oxidation and improve solder joint reliability

Precision Optics & Components

Optical and precision component manufacturing consumes low-flow, high-purity nitrogen (99.999%) to prevent surface contamination during assembly and storage

FAQ

▔▔▔

Why choose a modular nitrogen generator?

Unlike traditional multi-tower nitrogen systems, the modular design uses high-strength aluminum profiles for a more compact structure and enhanced performance. Its streamlined architecture reduces installation costs and footprint, while the flexible layout enables easy deployment anywhere in your facility.
Why choose on-site nitrogen generation instead of liquid or bottled nitrogen?

On-site nitrogen generation offers lower investment and operating costs, requires less space, and is easier to manage and maintain compared to liquid or bottled nitrogen supply.
How does the operating cost of on-site nitrogen generation compare to liquid or bottled nitrogen supply?

The operating cost of on-site nitrogen generation is significantly lower due to the elimination of transportation, rental, and storage fees.
Is on-site nitrogen generation suitable for small businesses?

Yes, it’s highly suitable. With a quick return on investment, small businesses often gain greater cost advantages using on-site nitrogen generators.
How does on-site gas equipment ensure gas purity and stability?

Each unit is rigorously factory-tested to meet purity, flowrate, and performance standards. With regular maintenance, the system provides stable and reliable nitrogen output.
Can our production capacity be expanded in the future?

Yes. The system supports modular expansion. Additional banks can be added later to meet growing nitrogen demand without buying a new complete unit. (upto three banks)
Is remote monitoring supported?

Yes. The integrated PLC system supports remote monitoring, alarm notifications, and system status supervision, using Wi-Fi or 5G Network.
How often does the adsorbent in a nitrogen generator need replacement?

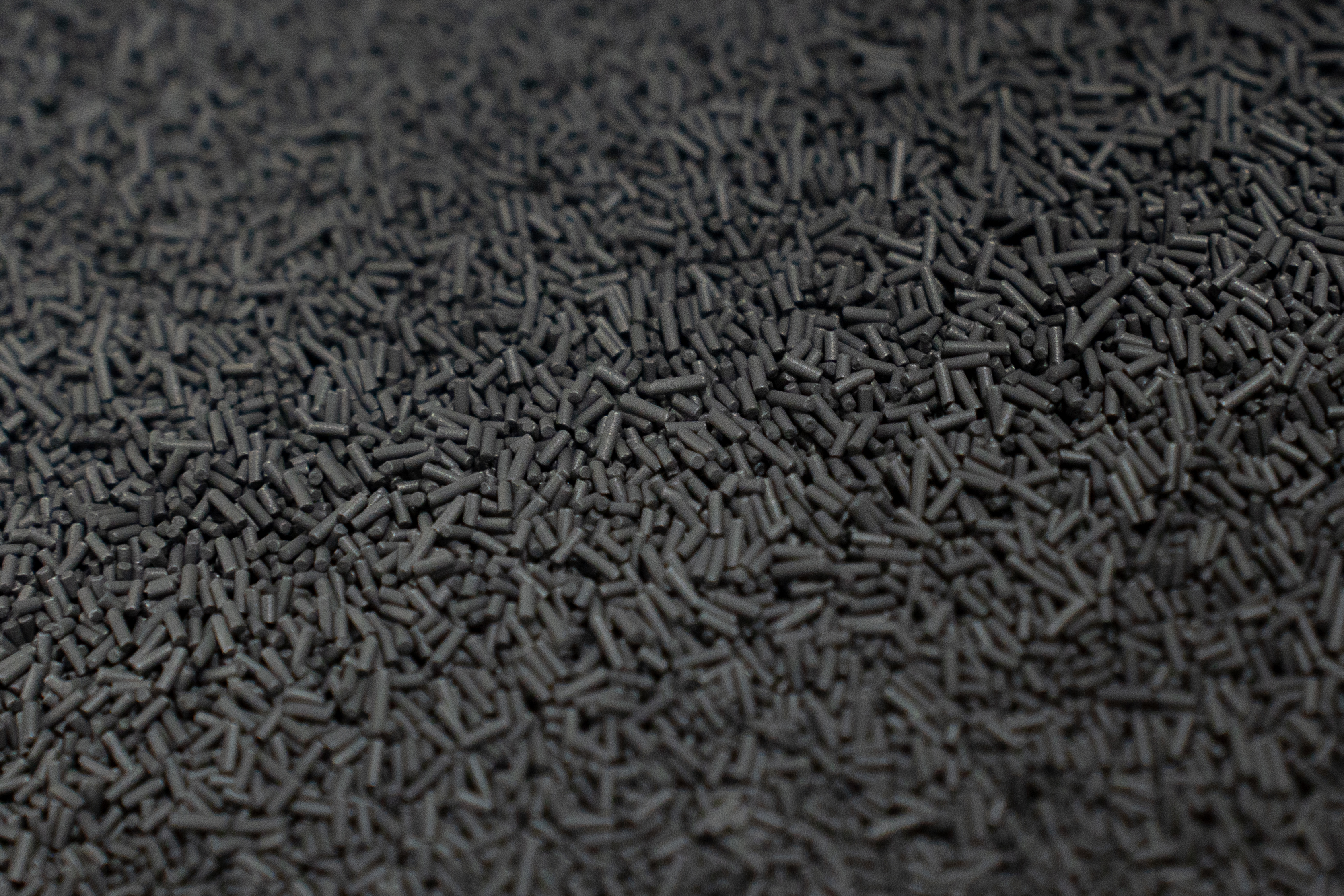

With proper maintenance, the molecular sieve typically lasts up to 5 years.
Is maintenance frequent?

No. The optimized structure, modular design, and premium components significantly reduce maintenance frequency. Detailed maintenance list and schedule can be requested at support@kstkmanufacturing.com

Technical Specification

▔▔▔

Nitrogen Purity	95~99.999%
Nitrogen Flowrate	1~220Nm³/hr
Nitrogen Dew Point	-60~-30℃
Nitrogen Pressure	6～8Bar
Air Inlet Pressure	8～10Bar
Air Inlet Temperature	20～35℃
Voltage/Frequency	220v/50~60Hz

Note: Specific requirements can be made upon request

Product Specification

▔▔▔

KNA-MA

Purity: 99%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）
	Air Consumption	N₂ Output	Inlet	Outlet
KNA-12MA	26.4	12	15	15	KRD-015F	100	Combined	75011001788
KNA-25MA	55	25	15	15	KRD-026F	200	Combined	75013001788
KNA-38MA	83.6	38	15	15	KRD-026F	400	Standard	75011001788
KNA-51MA	112.2	51	20	15	KRD-039F	600	Standard	75011001788
KNA-77MA	169.4	77	25	20	KRD-070F	600	Standard	75011001788
KNA-128MA	281.6	128	32	25	KRD-070F	1000	Standard	75014001788
KNA-154MA	338.8	154	40	25	KRD-085F	1500	Standard	75015501788
KNA-180MA	396	180	40	40	KRD-108F	1500	Standard	75017501788

KNA-MA+

Purity: 99.5%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）
	Air Consumption	N₂ Output	Inlet	Outlet
KNA-11MA+	29.7	11	15	15	KRD-015F	100	Combined	75011001788
KNA-22MA+	59.4	22	15	15	KRD-026F	200	Combined	75013001788
KNA-33MA+	89.1	33	15	15	KRD-026F	300	Standard	75011001788
KNA-44MA+	118.8	44	20	15	KRD-039F	400	Standard	75011001788
KNA-66MA+	178.2	66	25	20	KRD-070F	600	Standard	75011001788
KNA-110MA+	297	110	32	20	KRD-070F	1000	Standard	75014001788
KNA-132MA+	356.4	132	40	25	KRD-085F	1500	Standard	75015501788
KNA-154MA+	415.8	154	40	25	KRD-108F	1500	Standard	75017501788

KNA-MB

Purity: 99.9%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）
	Air Consumption	N₂ Output	Inlet	Outlet
KNA-8MB	25.6	8	15	15	KRD-015F	100	Combined	75011001788
KNA-16MB	51.2	16	15	15	KRD-015F	200	Combined	75013001788
KNA-24MB	76.8	24	15	15	KRD-026F	200	Combined	75014801788
KNA-32MB	102.4	32	20	15	KRD-026F	300	Standard	75011001788
KNA-48MB	153.6	48	25	15	KRD-039F	600	Standard	75011001788
KNA-63MB	201.6	63	25	20	KRD-070F	600	Standard	75011001788
KNA-80MB	256	80	32	20	KRD-070F	1000	Standard	75013001788
KNA-96MB	307.2	96	40	20	KRD-070F	1000	Standard	75014001788
KNA-112MB	358.4	112	40	25	KRD-085F	1000	Standard	75015501788

KNA-MB+

Purity: 99.95%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-11MB+	39.6	11	15	15	KRD-015F	100	Combined	75013001788
KNA-20MB+	72	20	15	15	KRD-026F	200	Combined	75014801788
KNA-27MB+	97.2	27	20	15	KRD-026F	300	Standard	75011001788
KNA-41MB+	147.6	41	25	15	KRD-039F	400	Standard	75011001788
KNA-55MB+	198	55	25	20	KRD-070F	600	Standard	75013001788
KNA-69MB+	248.4	69	32	20	KRD-070F	600	Standard	75014001788
KNA-83MB+	298.8	83	32	20	KRD-070F	1000	Standard	75015501788
KNA-95MB+	342	95	40	20	KRD-085F	1000	Standard	75017501788

KNA-MC

Purity: 99.99%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-10MC	42	10	15	15	KRD-015F	100	Combined	75013001788
KNA-15MC	63	15	15	15	KRD-026F	200	Combined	75014801788
KNA-20MC	84	20	20	15	KRD-026F	200	Standard	75011001788
KNA-30MC	126	40	20	15	KRD-039F	300	Standard	75011001788
KNA-40MC	168	40	25	15	KRD-070F	400	Standard	75011001788
KNA-50MC	210	50	25	15	KRD-070F	600	Standard	75013001788
KNA-60MC	252	60	32	20	KRD-070F	600	Standard	75014001788
KNA-70MC	294	70	32	20	KRD-085F	600	Standard	75015501788

KNA-MC+

Purity: 99.995%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-7MC+	31.5	7	15	15	KRD-015F	100	Combined	75013001788
KNA-13MC+	58.5	13	15	15	KRD-026F	200	Combined	75014801788
KNA-18MC+	81	8	20	15	KRD-026F	200	Standard	75011001788
KNA-26MC+	117	26	20	15	KRD-039F	300	Standard	75011001788
KNA-35MC+	157.5	35	25	15	KRD-039F	400	Standard	75013001788
KNA-44MC+	198	44	25	15	KRD-070F	400	Standard	75014001788
KNA-53MC+	238.5	53	25	20	KRD-070F	600	Standard	75015501788
KNA-62MC+	279	62	32	20	KRD-085F	600	Standard	75017501788

KNA-MD

Purity: 99.999%

Model	Air to N₂ Ratio (Nm³/hr)		Inlet & Outlet Dimensions（DN）		Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	N₂ Buffer Tank Size （L）	Unit Structure	Unit Dimension (mm)
KNA-6MD	31.2	6	15	15	KRD-015F	50	Combined	75013001788
KNA-10MD	52	10	15	15	KRD-026F	100	Combined	75014801788
KNA-14MD	72.8	14	20	15	KRD-026F	150	Combined	75011001788
KNA-20MD	104	20	20	15	KRD-039F	200	Standard	75011001788
KNA-28MD	145.6	28	25	15	KRD-039F	300	Standard	75013001788
KNA-35MD	182	35	25	15	KRD-070F	400	Standard	75014001788
KNA-42MD	210	42	25	15	KRD-070F	400	Standard	75015501788
KNA-50MD	260	50	32	15	KRD-070F	600	Standard	75017501788
