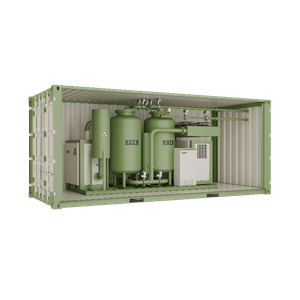

Containerized PSA Oxygen Station

KSTK’s Oxygen Station is a containerized oxygen generation system designed to meet the diverse oxygen requirements of medical, industrial, and other applications. At its core is an highly efficient PSA Oxygen Generator, which ensures the stable and reliable supply of high-quality oxygen. Depending on the specific end-user requirements, the station can be equipped with suitable oxygen purfiers to deliver up to 99.5% pure oxygen, or integrated with a pressurized bottling system to meet oxygen cylinder filling needs. This all-in-one solution not only guarantees the stability and reliability of the oxygen supply but also offers exceptional mobility and ease of integration thanks to its compact containerized design. It is the ideal choice for various oxygen-demanding environments. Whether used directly on production lines or as an oxygen cylinder filling system, KSTK’s Oxygen Station meets the stringent quality requirements for high-purity oxygen.
Availability:
Benefits
▔▔▔

Product Characteristic
▔▔▔
Air Ducting Hood Design
Efficiently directs the hot air generated by the air compressor to the outside, keeping the container’s internal temperature at optimal levels.

Ventilation & Exhaust System
Promotes consistent airflow and prevents overheating inside the container, protecting sensitive components and maintaining performance.

Surveillance Camera
Monitors the equipment in real time, preventing unauthorized access and ensuring safe operation even in outdoor environments.


 Application
▔▔▔
Chemical Processes
Provides high-purity oxygen for oxidation, synthesis, or other chemical reactions, ensuring stable yields and consistent product quality.
Emergency Oxygen Projects
Rapidly scalable oxygen supply to maintain reliable availability during disasters or sudden high-demand periods.

Remote Hospitals
Provides a self-contained oxygen supply for reliable operation in off-grid, remote, or temporary locations without existing infrastructure.
FAQ
▔▔▔
  • Can the system be installed outside?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. The containers are designed for outdoor use and it can totally protect equipment from extreme temperatures, dust, and harsh environments.
  • How long does installation and commissioning take?
    Created with Sketch.
    形状 Created with Sketch.
    Containerized and plug-and-play designs enable fast on-site deployment, typically requiring only minimal connection and commissioning time.
  • How is safety guaranteed during operation?
    Created with Sketch.
    形状 Created with Sketch.
    Our container unit includes temperature sensor, oxygen level alarm systems, and smoke detector to ensure safe and reliable operation.


Technical Specification

▔▔▔

Oxygen Purity 93±2% (up to 99.5% with oxygen purifier)
Oxygen Flow Rate 1~600Nm³/hr
Oxygen Dew Point -60~-30℃
Oxygen Pressure 1~5Bar(up to 200 bar with oxygen booster)
Inlet Pressure 6~8Bar
Inlet Temperature 20~35℃
Voltage & Frequency 220V/50~60Hz
Cylinder Filling Capacity 24~480 Cylinders Per Day

Note: Specific requirements can be made upon request

① 40L oxygen cylinder



Container Options

▔▔▔


Specification


Standard Containers

Customized Containers

20GP

40HQ

20GP

40HQ

External Dims (m)

6.06*2.44*2.59

12.20*2.44*2.90



Customizable


Internal Dims. (m)

5.85*2.34*2.30

12.05*2.34*2.63

Rear Door (m)

2.44*2.59

2.44*2.90

Side Door (m)

/
/

Empty Weight (kg)

2,150

3,700


Customizable


Maximum Gross Weight (kg)

<14,000

<28,000

Floor Area (m²)

14.79

29.77


Customizable


Volume (m³)

38.30

86.33

Note: Custom specifications available upon request



Application Fields

▔▔▔


Application


Oxygen Purity

Stone Cutting

90~95%

Aquaculture

90~95%

Medical Oxygen Supply

90~95%

Ozone Generation

90~95%

Wastewater Treatment

90~95%

Metal Production / Processing

90~99.5%

Metal Cutting / Welding

90~99.5%

Glass Melting

90~99.5%

Note: The above data is for reference only. Specific requirements should be confirmed by the customer
