Imagine your pneumatic tools failing due to moisture in compressed air. Adsorption air dryers prevent this by removing water vapor. But what exactly is an adsorption air dryer, and why is it crucial for your system? In this post, you'll learn about the importance of drying compressed air and how adsorption air dryers function to ensure optimal performance.
Adsorption air dryers remove moisture by attracting water vapor onto a desiccant material's surface. Unlike absorption, where moisture penetrates the material, adsorption traps moisture molecules on the surface. The desiccant acts like a sponge for water vapor, holding moisture tightly until it reaches capacity. Common desiccants include activated alumina, silica gel, and molecular sieves. This process lowers the pressure dew point of compressed air, ensuring it is dry enough for sensitive applications.
During the drying phase, compressed air flows through one of the two desiccant-filled towers. As air passes through, moisture clings to the desiccant, leaving dry air to exit the tower. This phase continues until the desiccant approaches saturation. The drying tower effectively reduces moisture content to very low levels, often achieving pressure dew points as low as -40°C or lower. This dry air protects pneumatic equipment, prevents corrosion, and maintains product quality.
While one tower dries the compressed air, the other undergoes regeneration to restore its moisture-absorbing capacity. Regeneration removes the adsorbed water, preparing the desiccant for the next drying cycle. Most adsorption dryers use a portion of dry compressed air, called purge air, which expands to atmospheric pressure and passes through the saturated desiccant. This air picks up moisture and vents it outside. Some dryers add heat during regeneration to speed up moisture removal and reduce purge air consumption. After regeneration, the towers switch roles, allowing continuous drying.
Tip: Optimize energy use by selecting adsorption dryers with adjustable purge cycles that match your system’s actual moisture load.
Adsorption air dryers come in several types, each designed to suit different operational needs and efficiency goals. Understanding these types helps you select the best dryer for your compressed air system.
Heatless dryers are the simplest and most common type. They use a small portion of the dry compressed air—typically 15% of the total flow—to regenerate the desiccant by purging moisture. No external heat source is required. This makes them easy to install and maintain but less energy-efficient because of the air loss during regeneration. They are ideal for smaller systems or applications where energy costs are less critical.
These dryers use an external heater to regenerate the desiccant. By adding heat, they reduce the amount of purge air needed—usually around 6%—making them more energy-efficient than heatless dryers. Heated dryers are suitable for medium to large systems where energy savings justify the higher initial investment. They also provide stable dew points and are effective in varying ambient conditions.
Blower purge dryers use a blower to push ambient air through a heater and then through the desiccant for regeneration. This method uses no compressed air for regeneration, which can save a significant amount of energy. The purge air is heated ambient air, minimizing compressed air loss to as low as 2-3%. These dryers work well in large systems with high air flow and where energy efficiency is a priority.
HOC dryers utilize the heat generated by the air compressor itself to regenerate the desiccant. This method is highly energy-efficient since it recycles existing heat. They are typically paired with oil-free compressors and are excellent for continuous operation in harsh or cold environments. HOC dryers provide reliable drying with minimal external energy input, but their design is more complex and usually requires specific compressor setups.
Tip: When choosing an adsorption air dryer, consider your system size and energy costs; blower purge or heated dryers often offer better long-term savings despite higher upfront costs.
Adsorption air dryers rely on several key components working together to ensure compressed air is dried efficiently and reliably. Understanding these parts helps in selecting, operating, and maintaining the dryer properly.
Desiccants are the heart of adsorption dryers. They attract and hold moisture from the compressed air. Common desiccants include:
Activated Alumina: Durable and effective for a wide range of applications.
Silica Gel: Known for high moisture adsorption capacity.
Molecular Sieves: Provide very low pressure dew points, ideal for extremely dry air needs.
Each desiccant type has unique properties affecting drying performance, regeneration method, and lifespan.

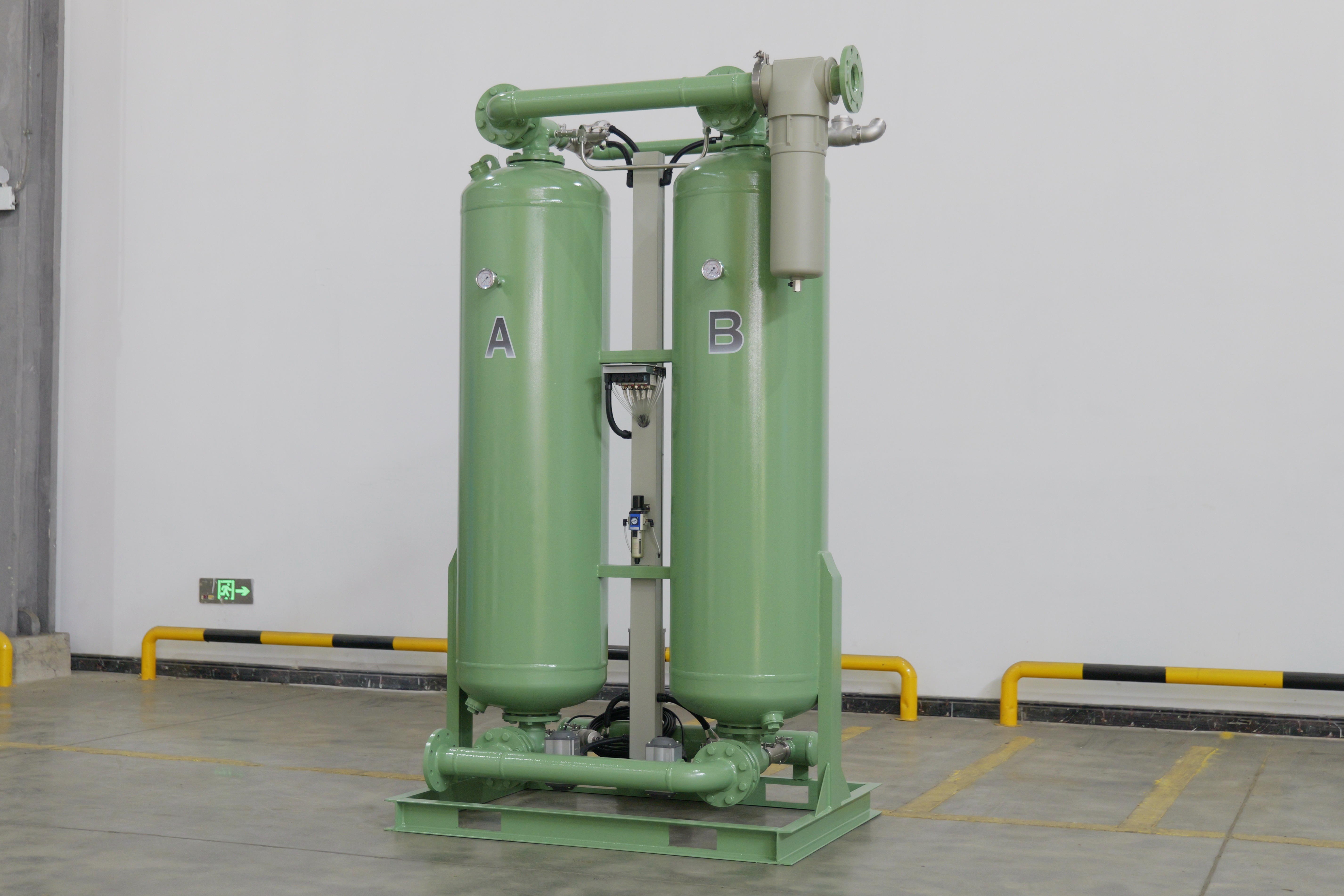

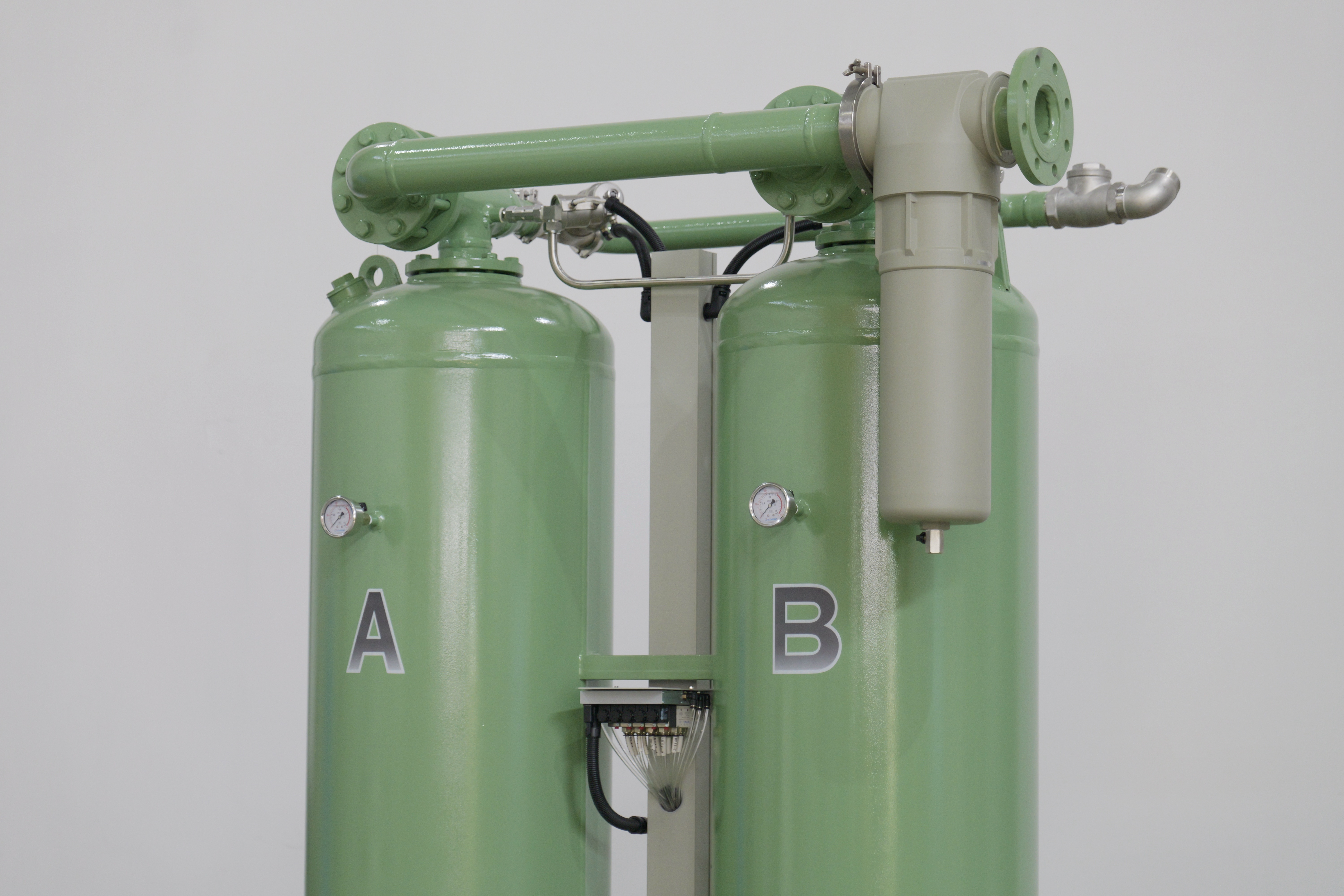

Most adsorption dryers use a twin tower design. Two towers filled with desiccant operate alternately:
One tower dries the incoming compressed air by adsorbing moisture.
The other regenerates by releasing moisture from the saturated desiccant.
This switching keeps air drying continuous. Towers switch roles after a set time or when the drying tower’s desiccant nears saturation.
Valves direct compressed air flow between the towers and control regeneration cycles. Modern dryers use automated valves managed by control systems to:
Switch towers at precise intervals.
Regulate purge air flow during regeneration.
Monitor pressure and temperature to optimize performance.
These controls ensure efficient drying and energy use.
Before air reaches the desiccant, it passes through filters that remove oil, dirt, and particulates. This protects the desiccant from contamination and extends its life.
Condensate drains remove liquid water separated during air cooling or filtration. Proper drainage prevents water carryover into the desiccant bed.
Tip: Regularly inspect and replace filters and drains to prevent desiccant fouling and maintain dryer efficiency.
Pressure Dew Point (PDP) is the temperature at which water vapor in compressed air condenses into liquid at a given pressure. It indicates how dry the compressed air is. The lower the PDP, the drier the air. For example, a PDP of -40°C means moisture will condense only if the air cools to -40°C at system pressure. This is crucial because moisture in compressed air can cause corrosion, damage equipment, and affect product quality. Adsorption air dryers are designed to reduce PDP to very low levels, often between -40°C and -70°C, ensuring air dryness suitable for sensitive industrial processes.
Adsorption air dryers use desiccants to trap moisture, effectively lowering the PDP. Their twin-tower design allows continuous drying and regeneration cycles. By adsorbing water vapor, they achieve PDPs far lower than refrigerated dryers, which typically reach only about 3°C. Some desiccants, like molecular sieves, enable extremely low PDPs, ideal for critical applications. The regeneration process removes moisture from the desiccant, maintaining its drying efficiency. Advanced adsorption dryers may include dew point sensors to adjust regeneration timing based on actual moisture levels, optimizing energy use while maintaining low PDP.
Certain industries demand specific PDPs to protect equipment or ensure product quality:
Pharmaceuticals and Medical: Require very low PDP to prevent contamination and ensure sterile environments.
Food and Beverage: Need dry air to avoid moisture affecting packaging and shelf life.
Electronics and Semiconductors: Use ultra-dry air to protect sensitive components from moisture damage.
Automotive Paint Shops: Require low PDP to prevent water spots and defects in paint finishes.
Instrumentation and Controls: Depend on dry air to maintain precision and prevent corrosion.
Selecting an adsorption dryer that meets the required PDP ensures reliable operation and protects investments in critical processes.
Tip: Monitor your system’s actual PDP regularly using dew point sensors to optimize dryer performance and reduce unnecessary energy consumption.
Installing an adsorption air dryer correctly is key to its performance and longevity. Typically, it should be placed after the air compressor, air receiver tank, and primary air filters. This sequence ensures the air entering the dryer is free from oil, dirt, and liquid water, protecting the desiccant from contamination.
Here are essential installation tips:
Location: Choose a dry, well-ventilated area away from direct sunlight and extreme temperatures to prevent overheating or freezing.
Accessibility: Ensure enough space around the dryer for easy access to valves, controls, and desiccant towers for maintenance.
Piping: Use proper piping to minimize pressure drops and avoid moisture traps. Install the dryer vertically if recommended by the manufacturer.
Pre-Filtration: Install high-quality oil and particulate filters before the dryer to extend desiccant life.
Drainage: Provide an efficient condensate drain system to remove separated water before air reaches the desiccant.
Following these guidelines helps the dryer operate efficiently and reduces the risk of premature failure.
Routine maintenance keeps adsorption dryers running smoothly and prevents costly downtime. Key maintenance tasks include:
Filter Checks: Inspect and replace pre-filters regularly to prevent dirt and oil from reaching the desiccant.
Valve Operation: Test valves and actuators for proper switching between drying and regeneration cycles.
Pressure and Temperature Monitoring: Check system pressures and temperatures to identify leaks or abnormal conditions.
Leak Detection: Inspect piping and connections for air leaks, which reduce efficiency and increase energy costs.
Control System Checks: Verify that timers, sensors, and controllers function correctly to optimize drying and regeneration cycles.
Document maintenance activities and schedule inspections based on manufacturer recommendations and operating conditions.
The desiccant material gradually loses effectiveness as it adsorbs moisture over time. Replacing it at the right intervals is critical to maintaining low pressure dew points and air quality.
Important points about desiccant replacement:
Frequency: Depends on operating hours, air quality, and environmental conditions. Typically, replacement occurs every 2 to 5 years.
Signs of Saturation: Increased dew point readings or moisture downstream indicate desiccant exhaustion.
Desiccant Type: Use the manufacturer-recommended desiccant to ensure compatibility and performance.
Complete Replacement: Replace all desiccant in the tower during service to ensure uniform drying capacity.
System Inspection: During desiccant replacement, inspect valves, seals, and filters for wear or damage.
Proper desiccant maintenance maximizes dryer efficiency, reduces energy consumption, and protects downstream equipment.
Tip: Schedule regular dew point monitoring and maintenance checks to catch desiccant degradation early, ensuring continuous dry air supply and avoiding unexpected system failures.
Selecting the right adsorption air dryer is crucial for ensuring your compressed air system operates efficiently and meets your specific application needs. Several factors come into play when making this decision.
First, consider the size of your compressed air system. Larger systems often benefit from dryers that offer higher energy efficiency, like heated or blower purge types, while smaller setups may do well with simpler heatless models. Evaluate your system's airflow rate and pressure requirements to ensure the dryer can handle the demand without causing excessive pressure drop.
Next, think about the operating environment. Ambient temperature and humidity levels affect dryer performance. For example, in colder climates, heat of compression (HOC) dryers might be advantageous because they use compressor heat for regeneration, reducing energy consumption.
Energy efficiency is another key factor. Heatless dryers use more purge air, leading to higher energy costs, whereas heated or blower purge dryers reduce purge air but come with higher upfront costs. Balancing initial investment and operating expenses is essential.
Determine the required pressure dew point (PDP) for your application. Sensitive industries like pharmaceuticals or electronics might need PDPs as low as -70°C, necessitating high-performance desiccants and precise control systems. Less demanding applications may tolerate higher PDPs, allowing for more economical dryer options.
Review any industry standards or regulations relevant to your sector. Compliance with ISO 8573-1 air quality classes or other specifications ensures your dryer meets necessary quality benchmarks.
Consider how the dryer will perform under your facility's typical operating conditions. Fluctuations in load, ambient temperature, or humidity can impact drying efficiency. Some dryers feature adaptive controls or dew point monitoring to optimize regeneration cycles, saving energy and maintaining consistent air quality.
Also, evaluate maintenance requirements. Some dryers need frequent desiccant replacement or valve servicing, which could increase downtime or labor costs. Choosing a dryer with accessible components and straightforward maintenance can improve long-term reliability.
Budget influences both the initial purchase and ongoing operational costs. Heatless dryers generally have lower upfront costs but higher energy use. Heated and blower purge dryers cost more initially but can reduce energy expenses over time.
Factor in potential savings from energy-efficient models, longer desiccant life, and reduced maintenance. Sometimes, a higher initial investment pays off through lower total cost of ownership.
Tip: Assess your compressed air system’s size, required dryness level, and operating environment carefully to select an adsorption air dryer that balances performance, energy use, and cost effectively.
Adsorption air dryers efficiently remove moisture from compressed air, ensuring low pressure dew points for sensitive applications. They use desiccants to trap water vapor, providing dry air crucial for industries like pharmaceuticals and electronics. Selecting the right dryer involves considering system size, energy efficiency, and air quality needs. KSTK offers advanced adsorption air dryers that balance performance and cost, delivering reliable and energy-efficient solutions for various industrial requirements.
A: An Adsorption Air Dryer is a device that removes moisture from compressed air using desiccant materials, ensuring dry air for sensitive applications.
A: It works by passing compressed air through desiccant-filled towers, where moisture is adsorbed onto the desiccant's surface, leaving dry air for use.
A: Adsorption Air Dryers achieve lower pressure dew points, making them ideal for applications requiring extremely dry air compared to refrigerated dryers.
A: Benefits include preventing corrosion, protecting pneumatic equipment, and maintaining product quality by ensuring dry compressed air.
A: Desiccant replacement typically occurs every 2 to 5 years, depending on usage, air quality, and environmental conditions.
