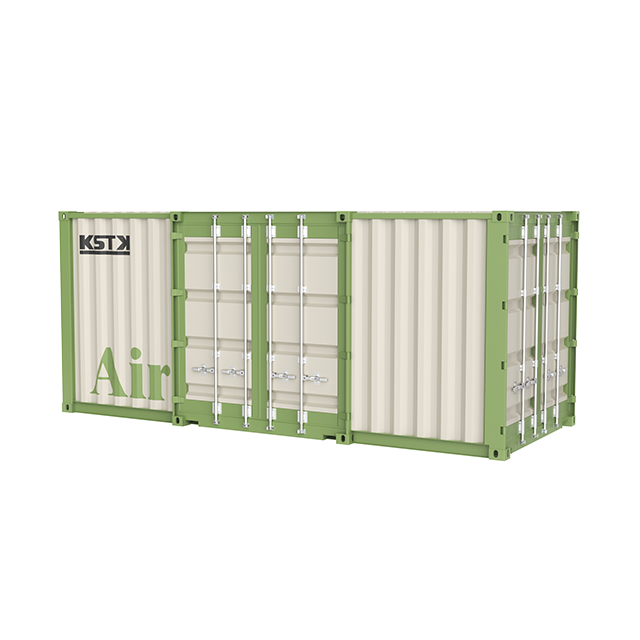

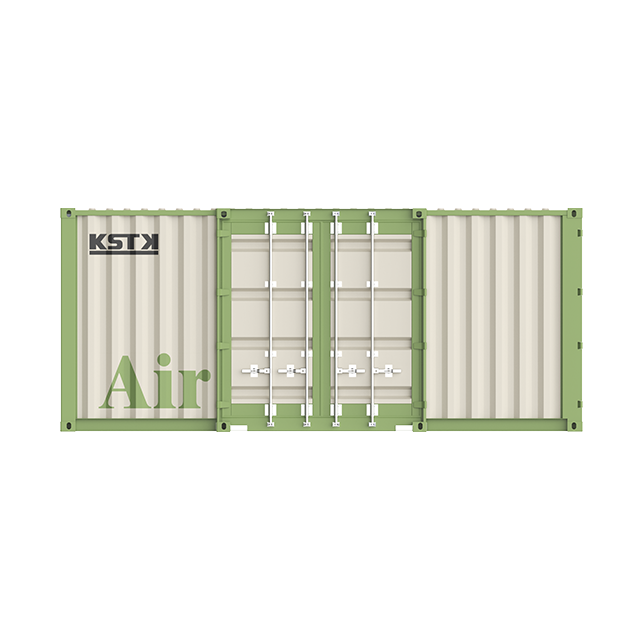

Containerized Air Purification Station

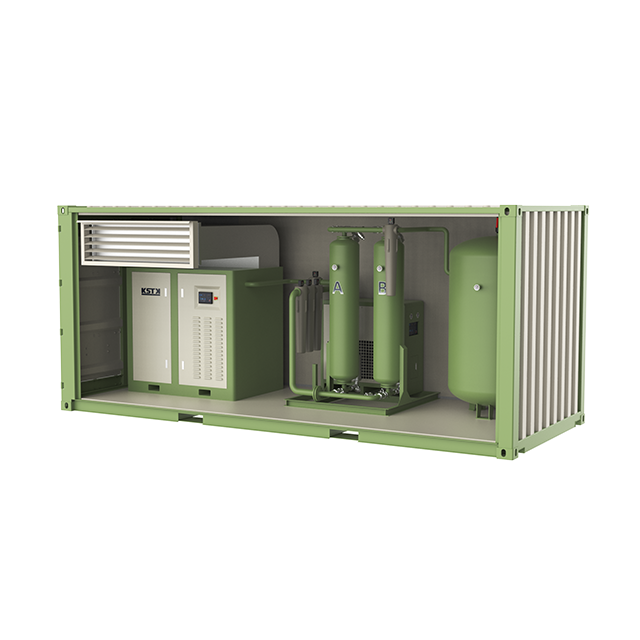

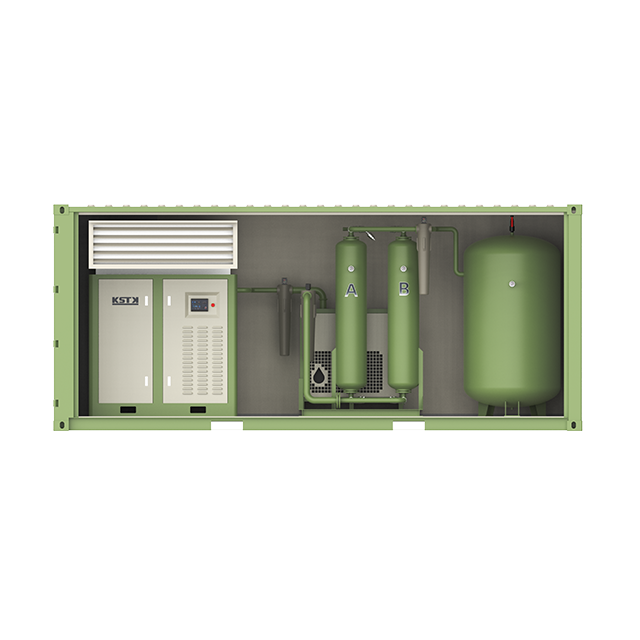

KSTK’s Air Station is a containerized compressed air generation and purification system, purpose-built to meet the demanding requirements of industrial air supply applications by delivering clean, purified high-quality compressed air. At the heart of the system is a robust air compressor that ensures stable and reliable compressed air output. This is paired with a series of high-efficiency, precision purification components—including refrigerated air dryers, adsorption air dryers, precision filtration systems, oil-water separators, and more—to guarantee that the compressed air is oil-free, dust-free, and meets the highest purity standards. This all-in-one solution not only ensures the consistency and reliability of the air supply, but also features a compact containerized design that offers exceptional mobility and ease of integration. It is an ideal choice for a wide range of industrial environments requiring a dependable and efficient air source. Whether deployed directly on production lines or serving as a front-end unit for oxygen or nitrogen generation systems, KSTK’s Air Station consistently meets the most stringent requirements for clean compressed air.


Availability:



INQUIRY

Benefits

▔▔▔

A true plug-and-play turnkey solution—fully pre-assembled and rigorously tested at the factory before shipment. Simply connect to a power source on-site and the system is ready to operate. No complex installation or additional infrastructure required.

Simplicity

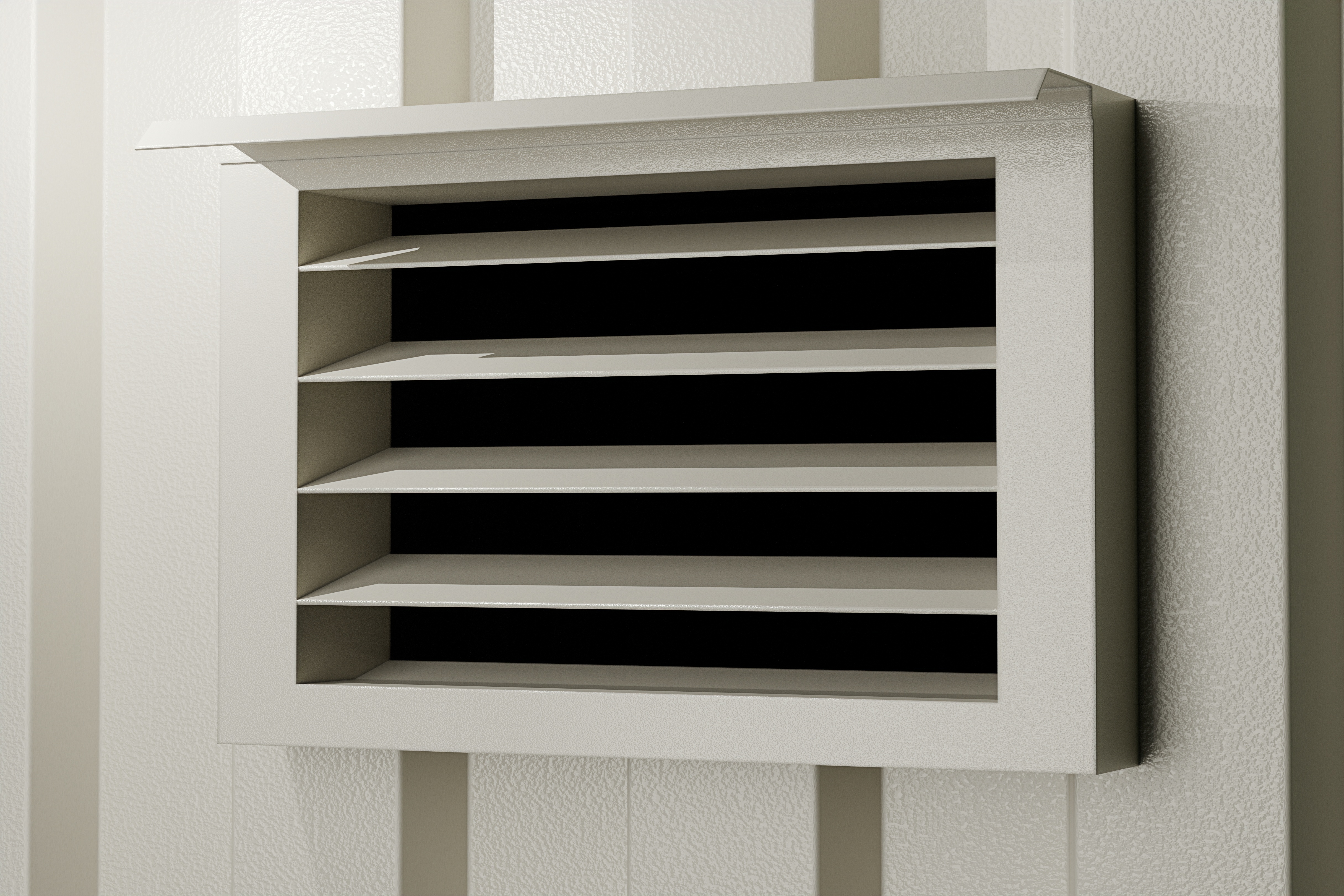

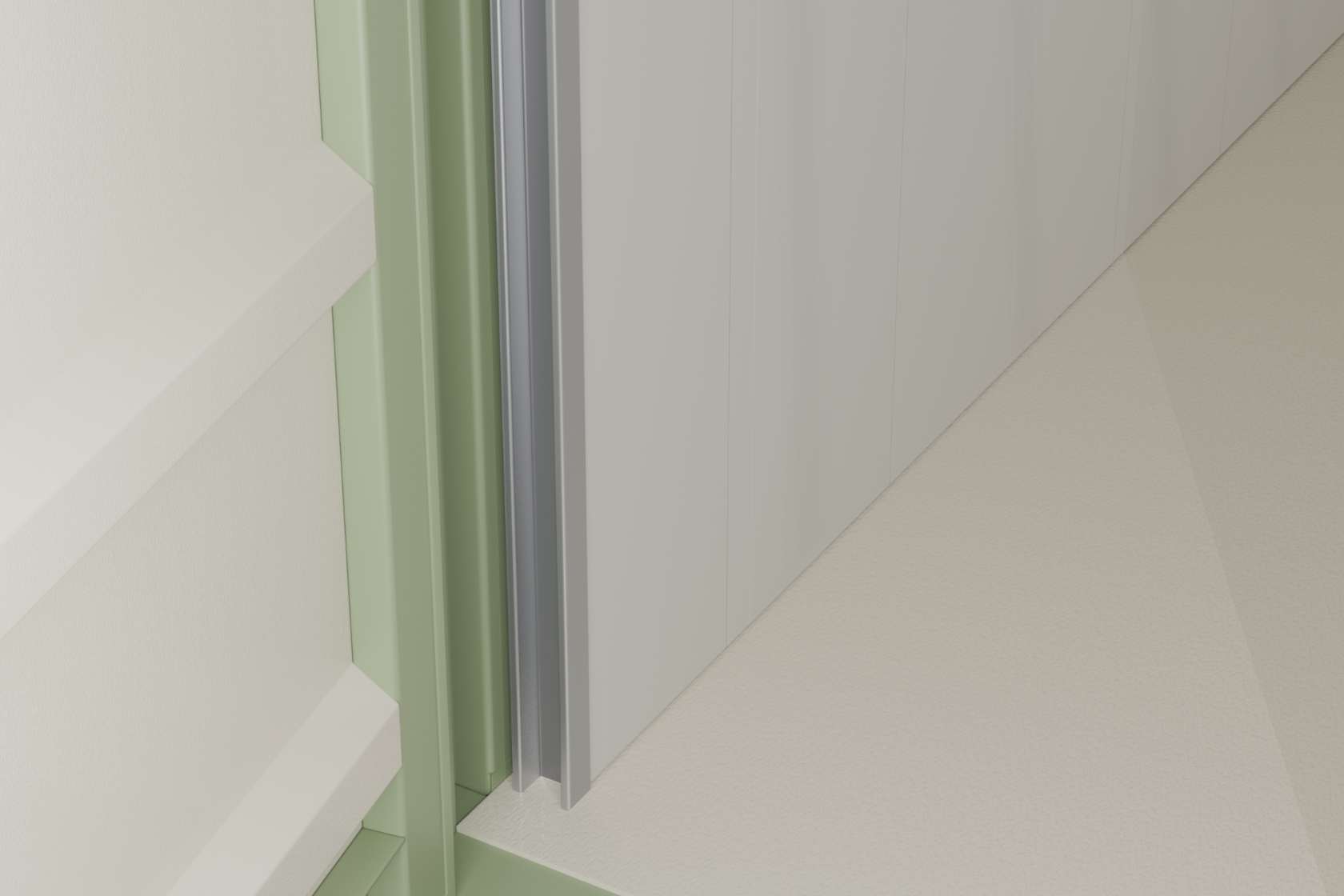

Engineered for reliable performance in ambient temperatures from -20°C to 40°C. The container is weatherproof, fully insulated, ventilated, and climate-controlled, ensuring stable operation in high-altitude, cold, humid, hot or dusty environments.

Adaptability
A compact, all-in-one design that houses all components within a standardized container—eliminating the need for a dedicated machine room and preserving valuable indoor space. Easily transportable by truck for flexible, on-demand deployment.

Mobility
Equipped with a 7-inch touchscreen and a user-friendly HMI, featuring intelligent functions such as remote control and monitoring, multi-language and status display. Capable of fully automated, 24/7 operation with no on-site operator required.

Intelligence
Compared to conventional gas supply methods like liquid gas, bottled gas, or cryogenic systems, KSTK’s containerized on-site gas generation significantly lowers operating costs. It eliminates expenses related to cylinder rental, batch transportation, and storage warehouses.

Economical
KSTK’s proprietary structural design and specially engineered adsorbents deliver 5–15% higher efficiency than our market alternatives. Two energy-saving standby modes allow users to optimize settings for maximum operational efficiency.

Efficiency

Product Characteristic

▔▔▔

Intelligent Alarm System

A dual-warning system combining audible alarms and flashing indicators enables rapid detection of equipment anomalies, ensuring continuous and safe operation for the equipment.

Automatic Venting System

Our automatic venting system expels unqualified gas and redirects purified gas once purity levels are met, ensuring uninterrupted, reliable gas supply for clients.

Reliable Valves

Our pneumatic valves are made from premium 304 stainless steel, engineered for high pressure and corrosion resistance, delivering over 2 million cycles of reliable performance.

Premium Absorbents

Our custom-engineered molecular sieves offer superior adsorption function and great packing density, delivering higher efficiency, longer lifespan, and unmatched purity and stability.

Multi-Function PLC

Our advanced PLC features an intuitive interface with seamless connectivity (RS485 & Ethernet), along with remote control, monitoring capabilities, and multi-status, multilingual display.

Patented Valve Manifold Design

Our patented modular valve manifold uses its unit structure design to enhance system efficiency, minimize leakage risks, and simplify maintenance, ensuring optimal operational stability.

FAQ

▔▔▔

7*24 Hours Service

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services. This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

Related Products

Combined Air Dryer

Adsorption Air Dryer

Refrigerated Air Dryer

Compressed Air Filter

Experience Excellence with KSTK Now

We look forward to working with you to create a better future together.

Contact Us

Title	Unit	Parameters
Oil Content	ppm	≤0.001
Dust Content	μm	≤0.05
Air Dew Point	°C	-20~-60
Air Temperature	°C	20~35
Air Pressure	Bar	7-8

Model	Air to O2 Ratio (Nm³/hr)		Inlet & Outlet Size（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	Oxygen Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KOB-5SA	50	5	15	15	KRD-026F	Combined
KOB-8SA	80	8	20	15	KRD-026F	Combined
KOB-10SA	100	10	20	15	KRD-026F	Combined
KOB-12SA	120	12	20	15	KRD-039F	Combined
KOB-18SA	180	18	25	15	KRD-070F	Standard
KOB-20SA	200	20	25	15	KRD-070F	Standard
KOB-25SA	250	25	32	15	KRD-070F	Standard
KOB-30SA	320	32	32	15	KRD-085F	Standard
KOB-40SA	400	40	40	15	KRD-108F	Standard
KOB-50SA	500	50	40	15	KRD-140F	Standard
KOB-60SA	600	60	50	20	KRD-170F	Standard
KOB-80SA	800	80	50	20	KRD-220F	Standard
KOB-100SA	1000	100	65	20	KRD-250F	Standard
KOB-120SA	1200	120	65	25	KRD-290F	Standard
KOB-160SA	1600	160	80	25	KRD-365F	Standard
KOB-200SA	2000	200	80	40	KRD-420F	Standard
KOB-240SA	2400	240	100	40	KRD-500F	Standard
KOB-300SA	3000	300	100	50	KRD-650F	Standard

Title	Unit	Parameters
Oil Content	ppm	≤0.001
Dust Content	μm	≤0.05
Air Dew Point	°C	-20~-60
Air Temperature	°C	20~35
Air Pressure	Bar	7-8

Model	Air to O2 Ratio (Nm³/hr)		Inlet & Outlet Size（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	Oxygen Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KOB-5SA	50	5	15	15	KRD-026F	Combined
KOB-8SA	80	8	20	15	KRD-026F	Combined
KOB-10SA	100	10	20	15	KRD-026F	Combined
KOB-12SA	120	12	20	15	KRD-039F	Combined
KOB-18SA	180	18	25	15	KRD-070F	Standard
KOB-20SA	200	20	25	15	KRD-070F	Standard
KOB-25SA	250	25	32	15	KRD-070F	Standard
KOB-30SA	320	32	32	15	KRD-085F	Standard
KOB-40SA	400	40	40	15	KRD-108F	Standard
KOB-50SA	500	50	40	15	KRD-140F	Standard
KOB-60SA	600	60	50	20	KRD-170F	Standard
KOB-80SA	800	80	50	20	KRD-220F	Standard
KOB-100SA	1000	100	65	20	KRD-250F	Standard
KOB-120SA	1200	120	65	25	KRD-290F	Standard
KOB-160SA	1600	160	80	25	KRD-365F	Standard
KOB-200SA	2000	200	80	40	KRD-420F	Standard
KOB-240SA	2400	240	100	40	KRD-500F	Standard
KOB-300SA	3000	300	100	50	KRD-650F	Standard
