Key Takeaways

• PSA nitrogen generators produce high-purity nitrogen on-site by separating it from compressed air using pressure swing adsorption technology.

• The system uses two adsorption towers with carbon molecular sieves that trap oxygen and impurities, allowing continuous nitrogen flow.

• Generating nitrogen in-house saves money by cutting delivery, rental, and storage costs while providing a reliable, on-demand supply.

• PSA generators offer adjustable nitrogen purity levels up to 99.9999%, fitting various industrial needs like electronics, food packaging, and pharmaceuticals.

• Key components include air compressors, filters, dryers, molecular sieves, and control systems that work together for efficient nitrogen production.

• Compared to membrane and cryogenic methods, PSA technology balances high purity, energy efficiency, and flexible flow rates for most industrial uses.

• Regular maintenance and high-quality compressed air keep the PSA system reliable and extend its lifespan to 15–20 years.

• Advanced automation and safety features enable easy operation, remote monitoring, and continuous nitrogen supply even in harsh environments.

What Is a Nitrogen Generator

A nitrogen generator gives you the ability to produce nitrogen gas directly at your facility. You use this equipment to separate nitrogen from the air, delivering a steady supply for your operations. Nitrogen generators come in several types, each designed for different purity, flow, and application needs. When you choose the right generator, you gain control over your nitrogen supply and reduce reliance on delivered gas cylinders or liquid nitrogen.

Here is a comparison of the main types of nitrogen generators available:

You see that a psa nitrogen generator stands out for its ability to deliver high-purity nitrogen gas for demanding industrial applications.

PSA Technology Overview

PSA technology forms the backbone of many modern nitrogen generators. This technology uses the principle of pressure swing adsorption to separate gases. When you operate a psa nitrogen generator, compressed air passes through vessels filled with carbon molecular sieves. These sieves adsorb oxygen, carbon dioxide, and moisture at high pressure, allowing nitrogen to pass through as the product gas.

The process cycles between high and low pressures. At high pressure, the adsorbent captures unwanted gases. When the pressure drops, the adsorbent releases these gases, regenerating itself for the next cycle. By alternating between two vessels, the generator provides a continuous flow of nitrogen. PSA technology enables you to achieve consistent, high-purity nitrogen output, making it ideal for industries that require strict quality standards.

Tip: PSA nitrogen generators offer adjustable purity levels, so you can tailor the nitrogen output to your specific process requirements.

Key Components

A psa nitrogen generator relies on several essential components to deliver reliable nitrogen production. Each part plays a critical role in the separation and purification process:

• Air Compressor: Supplies compressed air at the required pressure for efficient nitrogen separation.

• Pre-filters: Remove dust, oil aerosols, and large particles to protect downstream equipment and ensure nitrogen quality.

• Air Dryer: Eliminates moisture from compressed air, safeguarding the adsorbent material and improving system efficiency.

• Separation Unit (PSA molecular sieve): The core of the generator, where oxygen and other impurities are adsorbed, allowing nitrogen to pass through.

• Control System: Manages pressure, flow rates, and vessel switching to maintain continuous and efficient nitrogen production.

• Nitrogen Storage Tank (optional): Stores nitrogen gas to provide a steady supply, even when demand fluctuates.

These components work together through the psa cycle, which includes adsorption, regeneration, and delivery. When you use a psa nitrogen generator, you benefit from a robust system designed for efficiency, reliability, and long-term performance. Nitrogen generators with psa technology can operate for over 15 years with proper care, making them a smart investment for your facility.

Nitrogen Generator Working Principle

How a Nitrogen Generator Works

You use a nitrogen generator to produce nitrogen directly from ambient air. The nitrogen generator working principle relies on pressure swing adsorption, or PSA technology, to separate nitrogen from other gases. When you start the process, the generator draws in air, which contains about 78% nitrogen and 21% oxygen. The air passes through a series of steps that prepare it for separation.

First, the generator compresses the air to the required pressure. Next, it removes moisture, oil, and dust using pre-filters and dryers. This step protects the adsorbent material inside the generator. The clean, dry air then enters the PSA separation unit, which contains carbon molecular sieves. These sieves selectively adsorb oxygen, carbon dioxide, and other trace gases. Nitrogen passes through as the product gas.

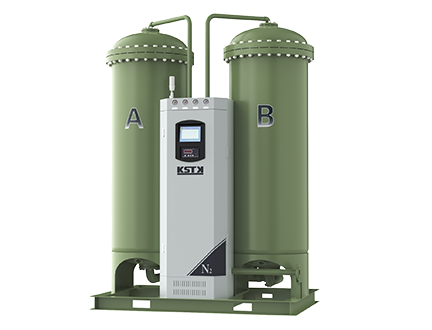

The generator uses two adsorption towers that operate in cycles. While one tower adsorbs unwanted gases, the other regenerates by releasing the trapped gases. The control system manages these cycles, ensuring a continuous supply of nitrogen. You can adjust the purity and flow rate to match your application needs. This process gives you a reliable source of nitrogen gas for your facility.

Note: PSA nitrogen generators allow you to produce nitrogen with purity levels up to 99.9999%, making them suitable for demanding industrial applications.

PSA Cycle Steps

Adsorption

During the adsorption phase, you feed compressed and dried air into one of the two towers filled with carbon molecular sieves. These sieves have a strong affinity for oxygen and other impurities. As the air flows through the tower, the sieves trap oxygen, carbon dioxide, and moisture. Nitrogen molecules do not bind to the sieves and continue through the bed.

The generator collects the nitrogen-enriched gas in a buffer tank. This step ensures a steady supply and maintains consistent pressure for your application. The adsorption process is highly efficient, allowing you to achieve the desired purity for your nitrogen output.

Adsorption Process Overview:

1. Compressed air enters the adsorption tower.

2. Carbon molecular sieves selectively adsorb oxygen and impurities.

3. Nitrogen passes through and is collected as product gas.

4. The control system monitors saturation levels to optimize performance.

Regeneration

Once the sieves in a tower reach saturation, the generator switches to the regeneration phase. The system reduces the pressure in the saturated tower, causing the adsorbed gases to release from the sieves. These gases are vented safely out of the system. While one tower regenerates, the other continues the adsorption process, ensuring uninterrupted nitrogen production.

Regeneration restores the adsorbent material, preparing it for the next cycle. The alternating operation of the two towers allows the generator to deliver a continuous flow of nitrogen without downtime.

Regeneration Process Steps:

1. The system depressurizes the saturated tower.

2. Adsorbed gases are released and vented.

3. The tower is ready for the next adsorption cycle.

4. Pressure equalization may occur to improve energy efficiency.

Delivery

After adsorption and regeneration, the generator delivers high-purity nitrogen to your application. The nitrogen flows from the buffer tank to the storage tank, where it is available for immediate use. You can control the flow rate and purity based on your requirements. The generator’s automated controls ensure consistent output and safe operation.

You benefit from a stable supply of nitrogen gas, tailored to your process needs. PSA technology enables you to generate nitrogen on demand, reducing reliance on external suppliers and improving operational efficiency.

Delivery Highlights:

• Nitrogen is stored in a buffer or surge tank.

• The generator supplies nitrogen at the required pressure and purity.

• Automated controls maintain steady output and monitor system status.

• You receive nitrogen directly at your point of use.

Tip: Regular maintenance of your nitrogen generator ensures optimal performance and extends the lifespan of the PSA system.

PSA Nitrogen Generator Features

High Purity Output

You demand high-purity nitrogen for critical processes. PSA nitrogen generators deliver a continuous stream of nitrogen with purity levels tailored to your needs. Most industrial applications require nitrogen purity between 95% and 99.999%. Electronics manufacturing and semiconductor production often need ultra-high purity nitrogen, ranging from 99.99% to 99.999%. Metalworking and power generation use nitrogen with purity from 95% up to 99.999%, depending on the process.

KSTK’s Containerized Nitrogen Generation Station provides a supply of high-purity gas with purity options from 79% up to 99.9999%. You can select the purity grade that matches your requirements. The system measures nitrogen purity by analyzing oxygen content, since oxygen is the main contaminant. For example, 99.9% nitrogen contains about 1,000 ppm oxygen, while 99.998% nitrogen has only 20 ppm oxygen. You achieve higher purity by using advanced carbon molecular sieves and nitrogen purifiers. This on-demand nitrogen generation system ensures you always have access to high-purity nitrogen for your facility.

Tip: You can customize the nitrogen purity, flow rate, and pressure to fit your process, ensuring a reliable supply of high-purity gas at all times.

Efficiency and Reliability

You expect your nitrogen generator to operate efficiently and reliably. The efficiency of PSA nitrogen generators depends on purity requirements, flow rate, and system design. KSTK’s custom engineered nitrogen generation systems offer flow rates from 1 to 3000 Nm³/h and pressures from 6 to 8 Bar, extendable up to 200 Bar with boosters. You benefit from a supply of high-purity gas that meets your operational demands.

Several factors influence efficiency and reliability:

• High flow rates increase the load on the adsorption system, which can affect purity and efficiency.

• Aging or contamination of carbon molecular sieves reduces adsorption capacity, impacting reliability.

• Valve and seal integrity are critical for maintaining high-purity nitrogen output.

• Regular maintenance, including molecular sieve replacement and valve inspection, ensures long-term performance.

• Filtration and air drying systems prevent contamination and extend component life.

KSTK’s nitrogen station uses premium components, such as 304 stainless steel pneumatic valves rated for over 2 million cycles and custom molecular sieves for superior adsorption. The patented modular valve manifold simplifies maintenance and boosts efficiency. The climate-controlled, weatherproof ISO container design allows you to deploy the system in harsh environments, from -20°C to 40°C, without sacrificing reliability. You receive a continuous stream of nitrogen with minimal downtime.

Note: PSA nitrogen generators are more energy efficient than cryogenic systems for small and medium-scale production. You save on operating costs while maintaining high-purity output.

Automation and Controls

You want a nitrogen generator that operates automatically and adapts to your workflow. Modern PSA nitrogen generators feature advanced automation and control systems. KSTK’s Containerized Nitrogen Generation Station includes a 7-inch touchscreen with an intuitive human-machine interface (HMI). You can monitor real-time status, adjust settings, and control the system remotely.

Key automation and control features include:

• PLC-based control system that automatically adjusts purity and flow by managing PSA cycle time.

• Automatic start and stop functions based on nitrogen consumption.

• Touchscreen control panels for easy operation.

• Remote monitoring and control via LAN or modem boards.

• Continuous monitoring and recording of critical process parameters.

• Data logging for performance tracking and regulatory compliance.

• Integrated alarm system with audible and visual alerts.

• Automated venting system that expels unqualified gas and ensures a supply of high-purity gas.

The plug-and-play design means you only need to connect power and nitrogen lines on-site. The system arrives fully assembled and factory-tested, reducing installation time and complexity. You can deploy the unit quickly, even in remote or challenging environments. Intelligent automation allows for 24/7 operation without on-site operators, giving you peace of mind and operational flexibility.

Callout: You control your nitrogen supply with advanced automation, ensuring consistent high-purity output and efficient operation.

Generating Nitrogen In-House

Cost Savings

Generating nitrogen in-house gives you significant cost advantages over purchasing liquid or bottled nitrogen. When you switch to on-site nitrogen generation, you eliminate recurring expenses such as cylinder rental fees, delivery charges, and environmental surcharges. These costs can add up quickly, often reaching thousands of dollars each month. You also avoid telemetry charges and waste from unused gas in returned tanks. The table below highlights the main cost-saving factors:

After installing a nitrogen generator, your ongoing costs are limited to electricity and routine maintenance. You gain control over your nitrogen production rates, which helps you avoid overpaying for unused gas. Many businesses have recouped their investment in under two years, with some saving over $300,000 in just 24 months. By generating nitrogen in-house, you improve safety by removing high-pressure tanks and reduce paperwork and inventory management.

Tip: Generating nitrogen in-house can reduce your operating costs by 30% to 50% compared to traditional supply methods.

Operational Flexibility

On-site nitrogen generation gives you unmatched flexibility in your operations. You produce nitrogen on demand, so you never wait for deliveries or face supply chain disruptions. This autonomy lets you adjust nitrogen purity and flow rates to match your specific applications. You can scale your nitrogen production up or down as your business grows or as projects change.

• You customize purity from 95% to 99.999% for different applications.

• You meet any flow requirement, from small batches to large-scale production.

• Modular systems allow you to expand capacity easily.

• Multi-bank setups ensure reliability and allow maintenance without downtime.

• You avoid complex contracts and gain full control over your nitrogen supply.

On-site nitrogen generation also supports continuous 24/7 operation. You can respond quickly to seasonal demand changes or special projects. This flexibility is especially valuable for industries like food packaging, electronics, and manufacturing, where uninterrupted nitrogen supply is critical.

Note: Generating nitrogen in-house removes dependency on external suppliers and lets you adapt to changing production needs instantly.

Space and Installation Benefits

You benefit from a compact and efficient setup when generating nitrogen in-house. PSA nitrogen generators, especially containerized solutions like KSTK’s, require less space and infrastructure than liquid gas delivery systems. You avoid the need for large cryogenic storage tanks, concrete pads, or complex facility modifications. The plug-and-play design allows you to install the system indoors or outdoors, even in limited spaces.

• PSA systems integrate air dryers, adsorption beds, and control valves in a single container.

• You do not need a dedicated machine room.

• Installation is simple—just connect power and nitrogen lines.

• The modular design supports easy relocation or expansion as your needs change.

This space efficiency makes in-house nitrogen generation ideal for facilities with limited floor space or those seeking to preserve valuable indoor areas. You streamline your operations and reduce installation time, allowing you to focus on your core business.

Callout: Generating nitrogen in-house with a containerized nitrogen generator gives you a turnkey solution that fits your facility and grows with your business.

PSA vs. Other Nitrogen Generation Methods

Membrane Technology Comparison

When you compare PSA and membrane nitrogen generation, you notice key differences in purity, efficiency, and cost. PSA technology delivers nitrogen purity up to 99.9999%, making it the top choice for ultra-pure needs. Membrane systems usually provide purity between 93% and 99.5%. If your process demands high-purity nitrogen, PSA stands out.

You also see differences in efficiency and flow rates. PSA systems handle high and very high flow rates, from 10 to thousands of cubic meters per hour. Membrane systems work best for small to medium flows, up to about 3000 m³/hr.

Here is a quick comparison:

Tip: Choose membrane systems for moderate purity and simple, low-maintenance operation. Select PSA for high-purity, high-flow industrial applications.

Cryogenic Systems Comparison

Cryogenic nitrogen generation uses a different approach. You cool air to extremely low temperatures and separate gases by their boiling points. This method produces ultra-high purity nitrogen and supports massive flow rates. However, cryogenic systems require large, complex equipment and significant energy for liquefaction.

You benefit from PSA nitrogen generators if you need a compact, mobile, and cost-effective solution. PSA units offer faster start-up times and lower running costs. Maintenance is simpler, involving filter changes and adsorption cycle management. Cryogenic systems need large insulated storage tanks and ongoing refrigeration system upkeep.

Note: PSA technology gives you flexibility and lower costs for most industrial applications, while cryogenic systems serve large-scale, ultra-pure needs.

Application Suitability

You must match the nitrogen generation method to your specific applications. PSA nitrogen generators excel in industrial applications that require very high purity, such as analytical chemistry, electronics manufacturing, and chemical processing. You also benefit from PSA systems in high flow rate operations like oil and gas production.

Membrane systems suit applications needing moderate purity and lower flow rates. Food packaging, fire protection, and some electronics manufacturing use membrane technology for its simplicity and energy savings. Both PSA and membrane systems offer on-site generation, which means cost savings, safety, and convenience.

Cryogenic systems fit best in large-scale operations where ultra-high purity and massive volumes are essential, such as metal manufacturing and petroleum refining.

• Use PSA for:

• High-purity nitrogen (up to 99.9999%)

• High flow rates

• Critical industrial applications

• Use membrane systems for:

• Moderate purity (95–99.5%)

• Lower flow rates

• Simple, modular applications

• Use cryogenic systems for:

• Ultra-high purity

• Very large-scale production

Callout: Select the nitrogen generation method that matches your purity, flow, and operational needs. PSA technology gives you the best balance for most demanding industrial applications.

Practical Considerations

Air Quality Needs

You must ensure high-quality compressed air for your PSA nitrogen generator to function at its best. The system relies on a multi-stage purification process.

• Precision filters remove dust and fine particles.

• Activated carbon adsorbers capture oil vapors and hydrocarbons.

• A refrigerated dryer lowers the dew point, keeping moisture levels extremely low.

These steps help you maintain a dew point of ≤ -70°C and oil content below 0.01 ppm. Clean air protects the carbon molecular sieve, which is the heart of your generator. When you keep contaminants out, you extend the life of the adsorbent and reduce maintenance costs.

Stable pressure is also important. A dual-tank parallel buffer design keeps pressure fluctuations within ±0.02 MPa. This stability ensures consistent nitrogen purity and flow. You will also find a nitrogen buffer tank in the system. It helps stabilize the output and maintain the desired purity, with its size based on your production rate and buffer time.

Modern PSA systems include smart controls. These controls use PLCs to monitor pressure, purity, and flow in real time. You can even connect to remote monitoring networks for predictive maintenance and quick troubleshooting.

Tip: High air quality and stable pressure protect your investment and keep your nitrogen generator running efficiently for years.

Maintenance

Regular maintenance keeps your PSA nitrogen generator reliable and efficient. You should keep the installation area clean, dry, and dust-free. Maintain room temperature below 95°F and humidity under 80%. Allow at least three inches of space around the unit for ventilation.

Follow these best practices:

1. Inspect for leaks and check pressure levels daily.

2. Look for signs of corrosion, dents, or instrument issues.

3. Respond immediately to system alarms and monitor indicator lights.

4. Replace filters every six months or after quarterly checks.

5. Service desiccant dryers and calibrate oxygen sensors annually.

6. Use only high-quality replacement parts from the manufacturer.

7. Train your staff on safe operation and maintenance procedures.

8. Schedule regular professional inspections.

Continuous monitoring of nitrogen quality and oxygen levels helps you catch problems early. When you follow these steps, you can expect your PSA nitrogen generator to last 15–20 years under standard industrial conditions. The carbon molecular sieve often lasts over 10 years, and valves can handle millions of cycles.

Note: Consistent maintenance not only extends equipment life but also ensures you always have a reliable supply of high-purity nitrogen.

Safety Features

Your PSA nitrogen generator comes equipped with advanced safety features to protect both operators and equipment. Early warning systems monitor solenoid valve response times and alert you when the molecular sieve nears saturation. Emergency backup systems, such as UPS power and atmospheric storage tanks, provide at least 30 minutes of nitrogen supply during power outages.

Alarm and control systems use PLCs for centralized and remote monitoring. Pressure and flow alarms notify you of any irregularities. Redundant designs for critical components, like solenoid valves, ensure uninterrupted operation. Dynamic purity compensation algorithms adjust cycles in real time to maintain gas quality, even if inlet pressure changes.

On-site nitrogen generation reduces risks linked to transporting and storing large gas volumes. Built-in safety features and local monitoring help prevent accidents. Operator training on alarm handling and emergency procedures further enhances safety and ensures compliance with industry standards.

Callout: Containerized PSA nitrogen generators from KSTK are designed for robust performance in harsh environments, offering reliable safety and environmental adaptability for your facility.

You gain full control over your nitrogen supply with PSA technology. KSTK’s containerized nitrogen generation station lets you produce high-purity nitrogen on demand, reducing costs and improving safety. Advanced automation and robust design ensure reliable operation in any environment. See how PSA nitrogen generators compare to traditional methods:

Choose PSA technology for a reliable, efficient, and scalable nitrogen solution that supports your industrial growth.

FAQ

How do you install a KSTK Containerized Nitrogen Generation Station?

You connect the unit to a power source and your nitrogen line. The system arrives fully assembled and factory-tested. You do not need a dedicated machine room or complex infrastructure.

What purity levels can you achieve with PSA nitrogen generators?

You can select nitrogen purity from 79% up to 99.9999%. KSTK’s system uses advanced molecular sieves and optional purifiers to reach ultra-high purity for demanding applications.

Can you operate the nitrogen generator in harsh environments?

You deploy the station in temperatures from -20°C to 40°C. The climate-controlled, weatherproof ISO container protects the system in cold, hot, humid, or dusty conditions.

How do you monitor and control the nitrogen generator?

You use a 7-inch touchscreen HMI for real-time monitoring. The system supports remote control, multi-language options, and automated operation. You receive alerts for maintenance and safety.

What maintenance does the PSA nitrogen generator require?

You inspect filters, valves, and molecular sieves regularly. Replace filters every six months. The modular design and premium components simplify maintenance and extend system life.

How does generating nitrogen in-house save you money?

You eliminate cylinder rental, delivery fees, and storage costs. You pay only for electricity and routine maintenance. On-site generation reduces your operating expenses by up to 90%.

Is the nitrogen supply continuous and reliable?

You receive a steady supply of nitrogen 24/7. The dual-tower PSA cycle and intelligent controls ensure uninterrupted operation. Automated venting removes unqualified gas, guaranteeing high-purity output.
