Freshly roasted coffee contains a wide range of aromatic compounds that contribute to its flavor and aroma. After roasting, however, coffee is sensitive to oxygen. Continued exposure to oxygen can accelerate oxidation and gradually affect the freshness, aroma, and flavor of roasted coffee.
This is why nitrogen is widely used in coffee packaging.
Nitrogen is an inert gas that can be used to replace oxygen inside coffee packages before sealing. This process, known as nitrogen flushing, helps create a low-oxygen packaging environment and reduce the effects of oxidation during storage.
For coffee manufacturers, a reliable source of nitrogen gas for coffee packaging is therefore an important part of the packaging process.

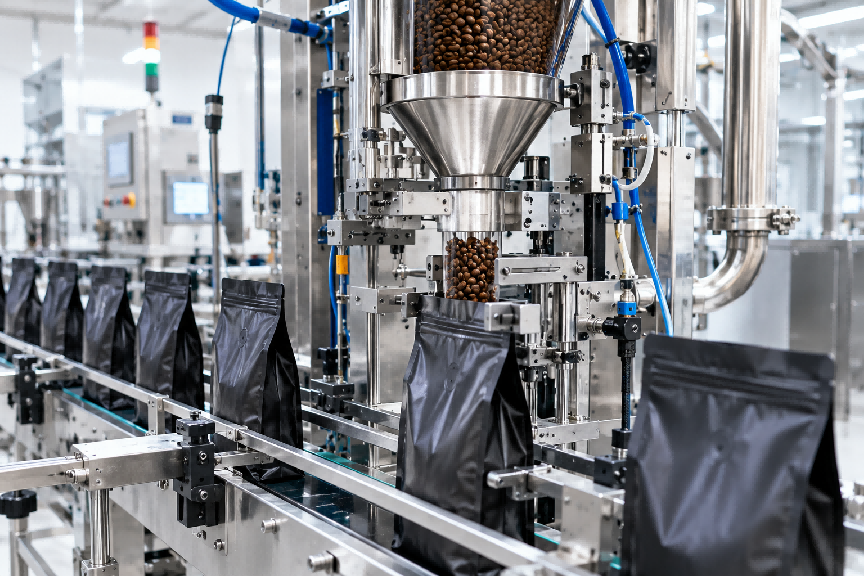

[Nitrogen Filling on a Coffee Production Line]
Instead of purchasing nitrogen in cylinders or as liquid nitrogen, coffee producers can use a PSA nitrogen generator to produce nitrogen directly at their facility.
A PSA nitrogen generator is a system that produces nitrogen from compressed air using Pressure Swing Adsorption technology.
Compressed air contains approximately 78% nitrogen, along with oxygen, argon, carbon dioxide, water vapor, and other components. In a PSA nitrogen generator, compressed air passes through a molecular sieve that selectively adsorbs oxygen and allows nitrogen to pass through as the product gas.
The system uses alternating adsorption and regeneration cycles. While one adsorption vessel produces nitrogen, the other vessel is regenerated. The vessels then switch roles to maintain continuous nitrogen production.
This makes PSA technology suitable for applications that require a continuous supply of nitrogen, including coffee packaging and food processing.

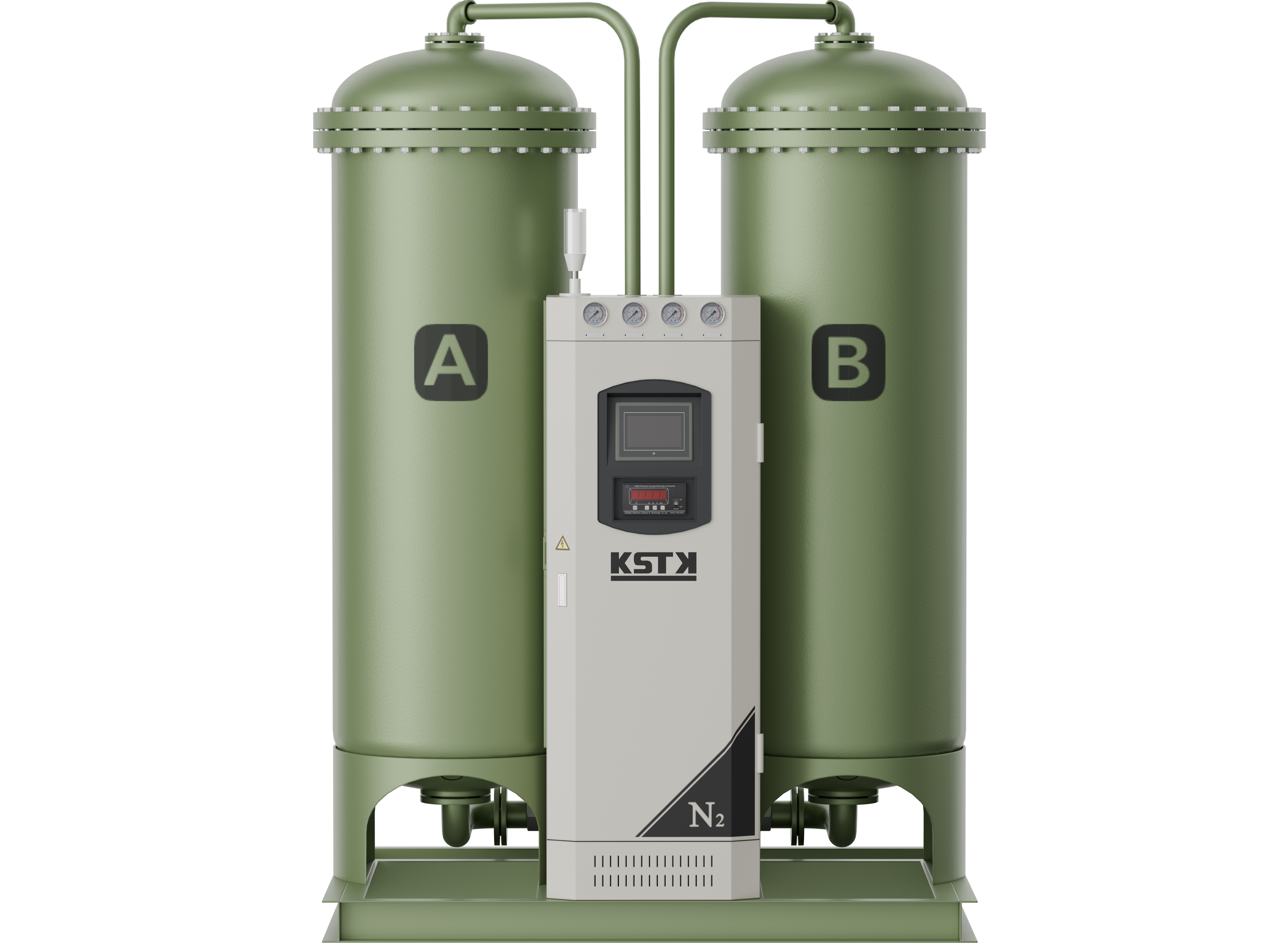

[STK Twin-Tower Nitrogen Generator]

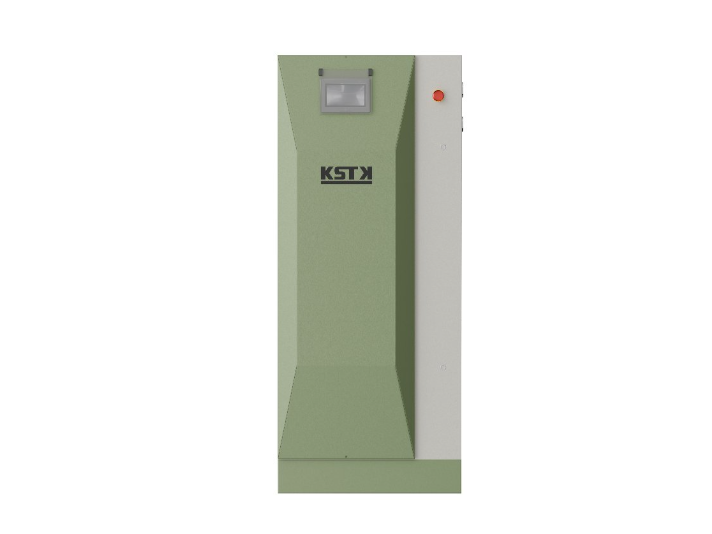

[KSTK Modular Nitrogen Generator]
Unlike delivered nitrogen, a PSA nitrogen generator produces gas on site. The system can be designed according to the required nitrogen purity, flow rate, pressure, and operating schedule.
The most common application of nitrogen in coffee packaging is nitrogen flushing.
Before a coffee package is sealed, nitrogen is introduced into the package to displace part of the air inside. This reduces the amount of oxygen remaining in the package.
Nitrogen flushing is commonly used for roasted coffee beans and ground coffee. The packaging machine introduces nitrogen into the package before sealing.
The basic process is:
Coffee filling → Nitrogen flushing → Package sealing
The actual process may vary depending on the packaging machine, package design, coffee product, and required residual oxygen level.
Coffee packaging machines may require a continuous nitrogen supply during production. A properly sized nitrogen generator for coffee packaging can provide nitrogen directly to the packaging line.
The required nitrogen flow rate and pressure depend on factors such as:
Packaging machine type
Package size
Packaging speed
Nitrogen flushing method
Number of packaging lines
Required nitrogen purity
This is why nitrogen generator selection should be based on the actual packaging process rather than nitrogen purity alone.
For coffee manufacturers with continuous nitrogen demand, on-site nitrogen generation can provide several practical advantages.
A PSA nitrogen generator can produce nitrogen continuously according to the requirements of the production line.
This can provide a consistent source of nitrogen for coffee packaging without depending entirely on scheduled cylinder deliveries or bulk liquid nitrogen deliveries.
Nitrogen demand can vary with production volume and packaging speed.
A PSA nitrogen system can be configured according to the required nitrogen flow rate and purity. This allows the gas supply to be matched more closely to the actual production requirements.
Using nitrogen cylinders or liquid nitrogen involves transportation, storage, handling, and replenishment.
With a nitrogen generator for coffee, nitrogen can be produced directly at the production site. This can simplify gas supply management for facilities with regular nitrogen consumption.
On-site generation gives manufacturers greater control over nitrogen production parameters.
Depending on the system design, operators can monitor and manage nitrogen purity, pressure, flow rate, and other operating parameters to match the requirements of the packaging process.
PSA nitrogen generators are available in different capacities. The system can be sized for individual packaging lines or larger production facilities with multiple nitrogen-consuming applications.
For this reason, PSA technology can be used by coffee producers with different production capacities and nitrogen requirements.
Choosing a PSA nitrogen generator for coffee packaging requires more than simply selecting a target purity.
Several technical parameters should be considered before selecting the system.
The required nitrogen purity depends on the coffee packaging process and equipment.
A higher purity is not automatically necessary for every application. The required specification should be determined according to the packaging process and the desired operating conditions.
The generator must provide sufficient nitrogen flow for the packaging equipment.
Flow demand depends on packaging speed, package size, nitrogen flushing method, and the number of packaging machines operating at the same time.
The required outlet pressure should match the requirements of the packaging equipment and nitrogen distribution system.
Coffee production facilities may operate for different numbers of hours per day. The nitrogen generator should be selected according to the expected operating schedule and peak nitrogen demand.
The available space for the compressor, dryer, nitrogen generator, storage tank, and other auxiliary equipment should also be considered during system design.
A properly designed coffee packaging nitrogen system should take all of these factors into account.
A PSA nitrogen generator uses compressed air as its feed gas. Therefore, the quality of the compressed air directly affects the operating conditions of the PSA system.
Compressed air may contain:
Moisture
Oil
Dust
Solid particles
Other contaminants
Before entering the PSA nitrogen generator, the compressed air should be properly treated.
A typical system may include:
Air compressor
Compressed air dryers
Air filters
PSA gas generator

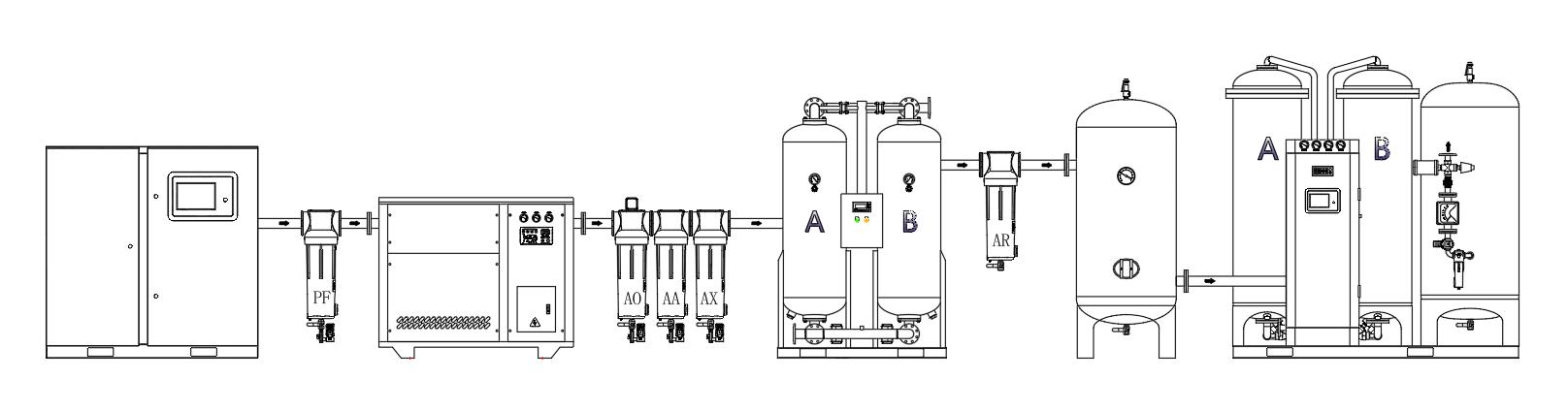

[Flowchart of KSTK Nitrogen Production System]
A properly designed compressed air pretreatment system helps protect the molecular sieve and provides suitable operating conditions for nitrogen generation.
For coffee manufacturers, this means that the nitrogen generator should be considered as part of a complete gas supply system rather than as a standalone machine.
Both PSA nitrogen generators and delivered nitrogen can be used for coffee packaging. The appropriate solution depends on the production requirements and nitrogen consumption of the facility.
Factor | PSA Nitrogen Generator | Nitrogen Cylinders |
Nitrogen source | Produced on site | Delivered |
Supply method | Continuous on-site generation | Cylinder replacement |
Gas delivery | No regular nitrogen delivery required | Regular replenishment required |
System flexibility | Designed around production demand | Depends on cylinder supply |
Suitable applications | Regular and continuous nitrogen demand | Smaller or intermittent demand |
For coffee manufacturers with regular nitrogen consumption, on-site generation can provide an alternative to purchasing delivered nitrogen.
The final choice should be based on nitrogen consumption, production schedule, installation conditions, operating costs, and the requirements of the packaging equipment.
KSTK provides PSA nitrogen generation systems for industrial applications that require on-site nitrogen.
For coffee production and packaging, the nitrogen system can be designed according to the actual application requirements, including:
Nitrogen purity
Nitrogen flow rate
Operating pressure
Packaging line requirements
Operating hours
Installation conditions
KSTK can also integrate supporting equipment such as air compressors, compressed air dryers, filtration systems, and nitrogen storage tanks.
This allows the nitrogen generator and supporting equipment to be considered as one complete system.
For coffee manufacturers, the goal is not simply to provide a nitrogen generator, but to develop a reliable nitrogen supply solution for the coffee packaging process.
Nitrogen is widely used in coffee packaging to reduce oxygen exposure and create a controlled packaging environment. Nitrogen flushing can help reduce the effects of oxidation and support the retention of coffee aroma, flavor, and freshness.
A PSA nitrogen generator for coffee packaging provides an on-site source of nitrogen and can support continuous packaging operations without relying entirely on delivered nitrogen.
When selecting a nitrogen generator for coffee production, manufacturers should consider nitrogen purity, flow rate, pressure, operating schedule, compressed air quality, and installation conditions.
With the right system design and compressed air pretreatment, on-site nitrogen generation can provide a practical and flexible nitrogen supply for modern coffee packaging.
KSTK provides PSA nitrogen generators and complete nitrogen generation systems that can be configured for different coffee production and packaging requirements.
