September 16, 2026
In on-site nitrogen and oxygen systems, gas purity, flow rate, and pressure often receive the most attention. However, the quality of the compressed air entering the equipment is also important.

Compressed air cannot be used directly after compression. Moisture, particles, and other contaminants in ambient air become more concentrated during the compression process. Without proper treatment, they may affect gas quality and place additional strain on downstream equipment.

A reliable on-site gas system therefore starts with effective air treatment.

What Contaminants Are Found in Compressed Air?

Air in industrial environments commonly contains moisture, dust, and fine particles. After compression, these contaminants travel with the compressed air into downstream piping and equipment.

Moisture can form condensate inside the piping and affect system operation. Particles may enter valves, filters, and other components, increasing the risk of blockages and wear. Inconsistent air quality can also affect the long-term performance of nitrogen and oxygen systems. Air treatment is therefore more than an optional supporting process. It provides an essential foundation for reliable system operation.

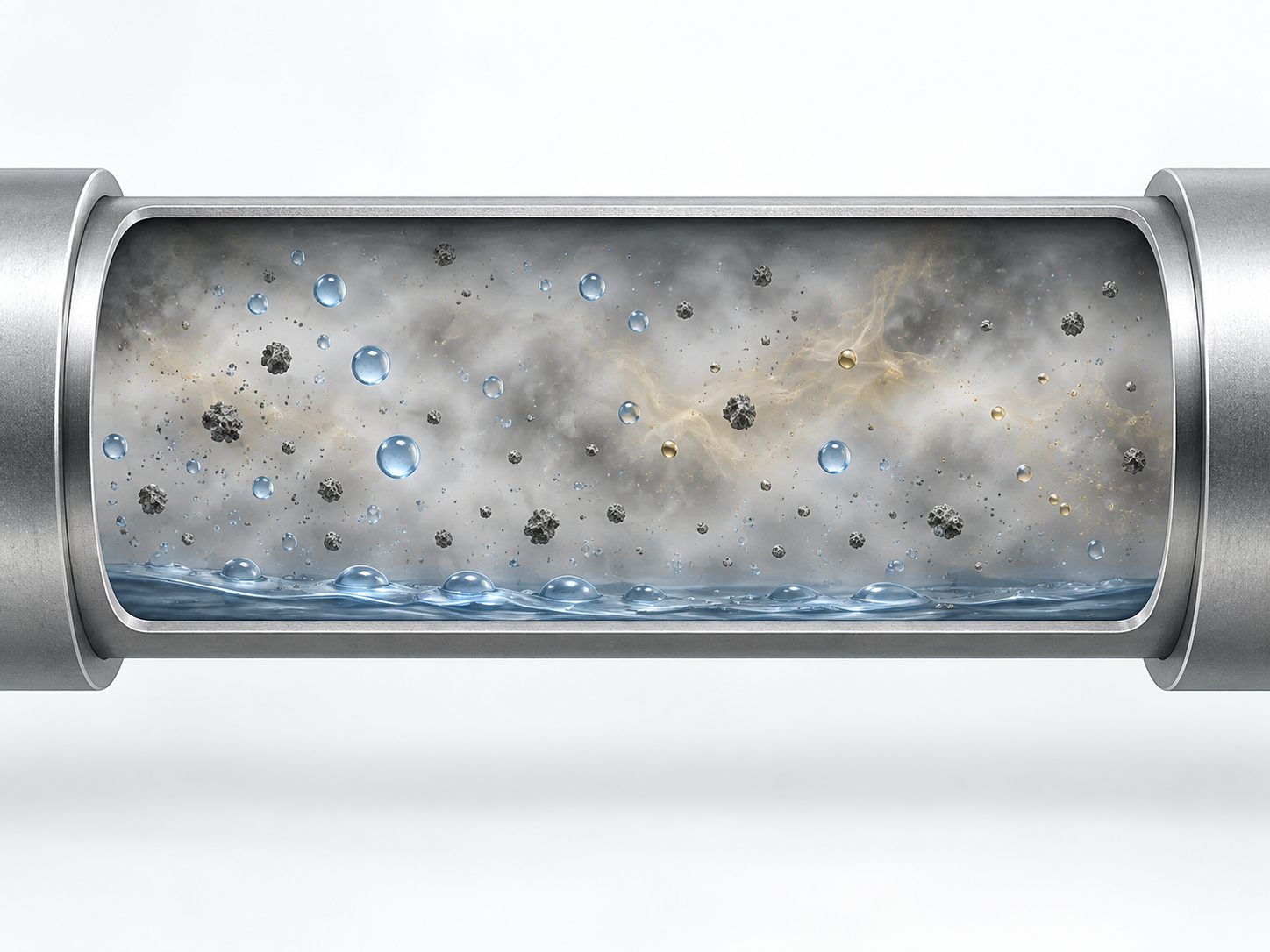

[Untreated Compressed Air with Moisture, Oil Mist, Dust, and Fine Particles]

How Does an Air Treatment System Work?

An air treatment system is more than a series of individual machines. From the moment air enters the system until it is ready for downstream equipment, every stage must be properly configured and coordinated with the rest of the system.

1. Start with a Reliable Air Source

The air compressor supplies compressed air to the entire system. However, higher pressure or a larger compressor does not necessarily deliver better results. KSTK selects the configuration according to the required air capacity and downstream demand, ensuring that the air supply matches the operating needs of the complete system.

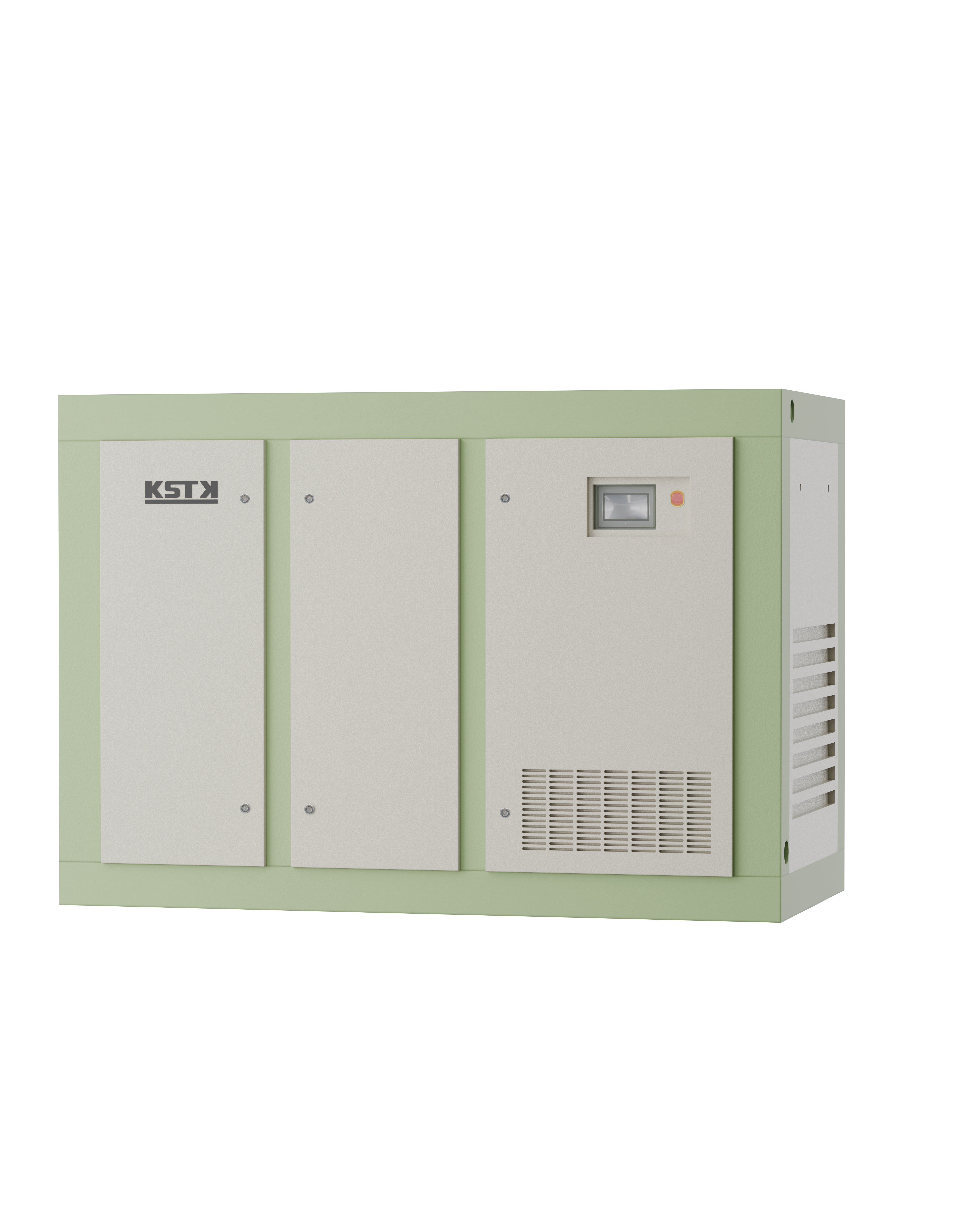

[KSTK industrial air compressor configured to provide a stable compressed air supply for downstream air treatment equipment]

2. Stabilize Pressure and Flow

The compressed air first enters a front air receiver, where it begins to cool while fluctuations in pressure and flow are reduced. A stable air supply protects downstream equipment from sudden changes and prepares the air for the next treatment stages.

3. Reduce the Load Before Drying

A gas-water separator removes condensed water and larger particles before the compressed air reaches the filters and dryers. Removing these contaminants at an early stage reduces the load on downstream equipment and avoids unnecessary strain during further treatment.

4. Remove Different Contaminants in Stages

Water mist, oil mist, and fine particles require different levels of filtration. A complete air treatment system therefore uses multiple filtration stages.

KSTK configures each stage according to the actual air quality requirements. Every filter performs a specific role, helping maintain clean compressed air while also supporting long-term operation and easier maintenance.

[KSTK compressed air filter for the staged removal of moisture, oil mist, and fine particles from compressed air]

5. Select the Right Drying Solution

Drying requirements vary by treatment capacity, installation space, and operating conditions. The drying equipment should therefore be selected according to the needs of each project.

KSTK offers refrigerated, adsorption, and combined air dryers. Combined models integrate an air receiver, refrigerated air dryer, adsorption air dryer, and filters on a single skid. This compact design reduces on-site installation work and simplifies operation and maintenance. Flexible configurations also help match drying performance and efficiency to actual site requirements without unnecessary equipment investment.

[KSTK air dryer configurations integrating receivers, dryers, and filters on a single skid]

6. Prepare the Air for Downstream Equipment

After drying, the compressed air passes through a dust filter to remove remaining fine particles. A rear air receiver then stabilizes pressure and flow before the air enters the nitrogen or oxygen system.

KSTK considers how each stage works together, allowing the air treatment equipment and downstream air separation system to operate in coordination and support stable gas production.

Why Does Upstream Treatment Affect the Entire System?

On-site gas equipment often operates continuously over long periods. Variations in compressed air quality can therefore have a lasting impact on downstream equipment.

Properly treated compressed air reduces the amount of moisture and contaminants entering valves, piping, and adsorption systems. This helps lower the risk of contamination and blockages while reducing unnecessary maintenance.

For nitrogen and oxygen systems, a stable compressed air supply also helps maintain gas purity, flow rate, and overall operating performance. The value of air treatment is not limited to producing cleaner air; it also protects and supports the downstream system.

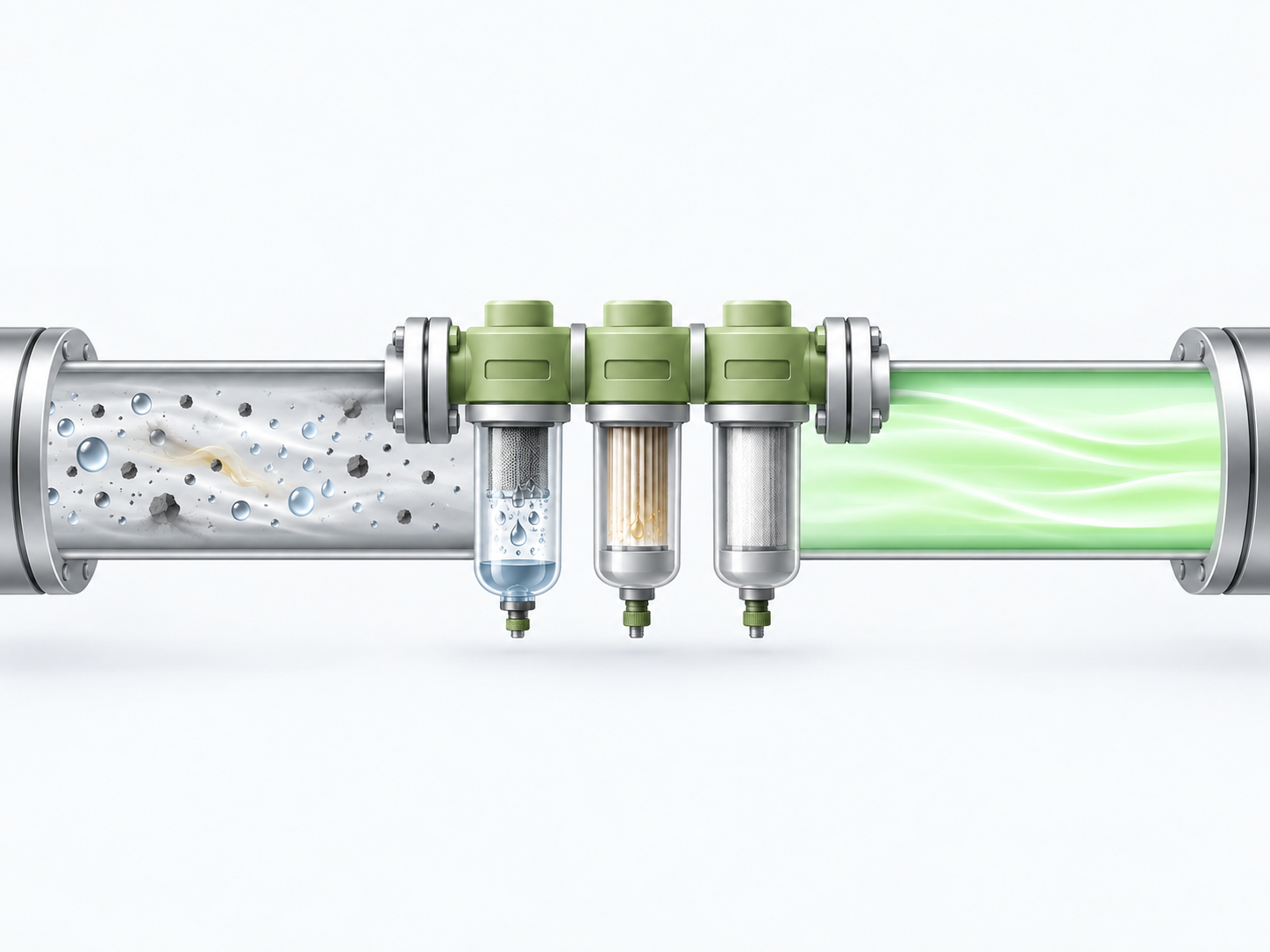

[Multi-Stage Compressed Air Filtration for Moisture, Oil Mist, Dust, and Fine Particle Removal]

More Than a Combination of Equipment

A well-designed air treatment system is not defined by the performance of one machine alone. Air compressors, gas-water separators, filters, and dryers must work together effectively. Even when every individual machine performs well, unsuitable piping, drainage, or equipment arrangement can still affect the operation of the complete system.

An air treatment system should therefore not be viewed as a simple collection of machines. Equipment selection, installation, operation, maintenance access, and coordination between each stage must all be considered as part of the complete system.

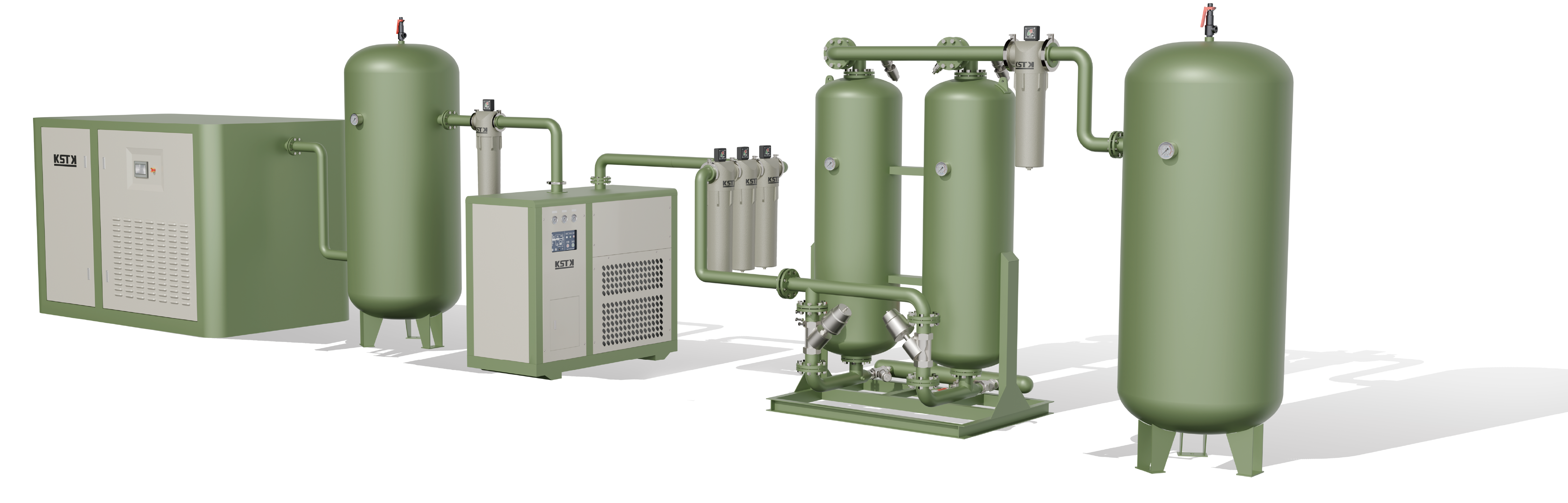

[KSTK Industrial Air Treatment System Including Compressor, Air Receivers, Dryers, Filters, and Piping]

What Should Be Checked During Daily Operation?

Regular checks keep the air treatment system in good operating condition. Key points include:

Inspecting automatic drains regularly to prevent condensate buildup

Monitoring filter pressure differences and replacing filter elements when required

Checking dryer operation to maintain the required air dryness

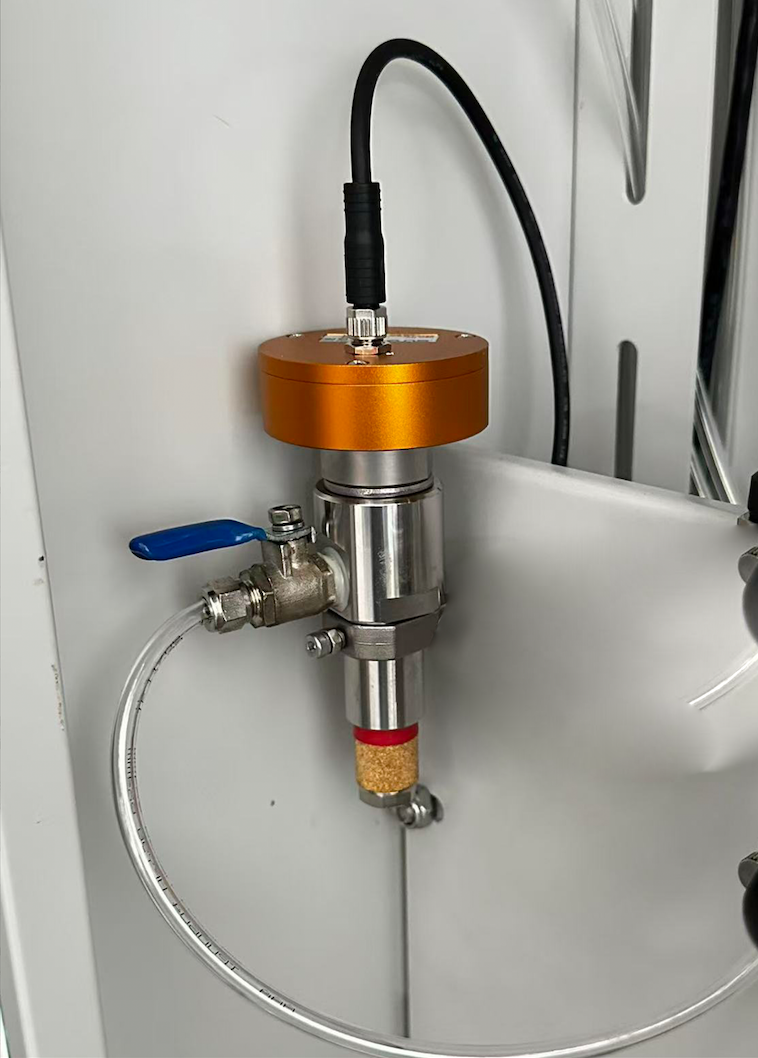

[KSTK compressed air dew point monitoring device]

Planning maintenance according to the operating hours and site conditions

Inspecting piping and fittings to reduce energy losses caused by air leaks

These checks are straightforward, but they help maintain stable equipment performance and reduce the risk of upstream air quality affecting downstream operation.

From Upstream Air Treatment to a Reliable Gas Supply

Upstream air treatment provides the foundation for the reliable operation of an air separation system.

With years of experience in the independent development and manufacturing of air treatment equipment, KSTK designs each system around the customer’s actual gas demand and downstream equipment configuration. The air treatment equipment can operate under coordinated control with the downstream air separation system, allowing air treatment, nitrogen generation, and oxygen generation processes to work together more effectively.

Reliable nitrogen and oxygen production begins before the gas is generated. At KSTK, it starts with properly treated compressed air.
