Oxygen generators have emerged as a critical technology in modern gold mining by providing a continuous, high-purity onsite supply of oxygen necessary to accelerate the cyanidation leaching process, significantly increasing gold recovery rates while reducing cyanide consumption and operational costs. By integrating these systems, mining operations achieve greater autonomy from supply chains and improve their overall environmental footprint through more efficient chemical reactions.
The following article explores the technical necessity of oxygen in gold recovery, the logistical hurdles of remote mining operations, and the specific engineering solutions provided by advanced onsite generation systems. From frame-built modular units to sophisticated flow control mechanisms, we will detail how high-purity gas production serves as the backbone of a profitable and sustainable gold mine.
Section | Summary |
Cyanidation and Oxygen Role | Explains how oxygen acts as a critical oxidant in the Elsner Equation to dissolve gold into solution efficiently. |
Types of Gold Leaching | Compares different leaching methods like CIL, CIP, and Heap Leaching and their specific oxygen requirements. |
Remote Area Challenges | Discusses the logistical and financial burdens of transporting liquid oxygen to isolated mine sites. |
Tailor-made Solutions | Highlights how customized Oxygen generators meet the specific pressure and purity needs of diverse mining environments. |
Frame-built Solutions | Details the modular design that allows for rapid deployment and structural integrity in harsh terrains. |
Advanced Control Systems | Describes the automation and PLC integration that ensures the generator operates at peak efficiency without manual intervention. |
Flow Control Systems | Focuses on the precision valves and sensors that manage gas output based on real-time leaching demands. |
Heavy Duty Construction | Emphasizes the use of industrial-grade materials to withstand the corrosive and dusty environments of mine sites. |
Process Monitoring | Covers the importance of real-time data tracking for purity, pressure, and flow to maintain gold recovery standards. |
Easy Transportation | Explains how containerized and skid-mounted designs simplify the logistics of moving equipment to global mining hubs. |
The role of oxygen in the cyanidation process is to act as the essential oxidizing agent that facilitates the chemical dissolution of gold into a cyanide solution, a reaction governed by the Elsner Equation.
In the world of hydrometallurgy, the recovery of gold from ore is primarily achieved through cyanidation. This process involves the leaching of gold from finely ground rock in an alkaline cyanide solution. However, the chemical reaction is not possible without a sufficient supply of dissolved oxygen. Oxygen facilitates the oxidation of the gold metal, allowing it to form a soluble complex with cyanide ions. Without adequate oxygen levels, the reaction slows down significantly, leading to longer processing times and incomplete gold recovery.
Furthermore, the presence of "preg-robbing" minerals or high-sulfide ores can consume oxygen and cyanide, further complicating the extraction. By injecting high-purity oxygen into the leach tanks, miners can maintain high dissolved oxygen (DO) levels, which effectively "out-competes" these secondary reactions. This ensures that the cyanide is used specifically for gold dissolution rather than being wasted on side reactions with iron or arsenic sulfides.

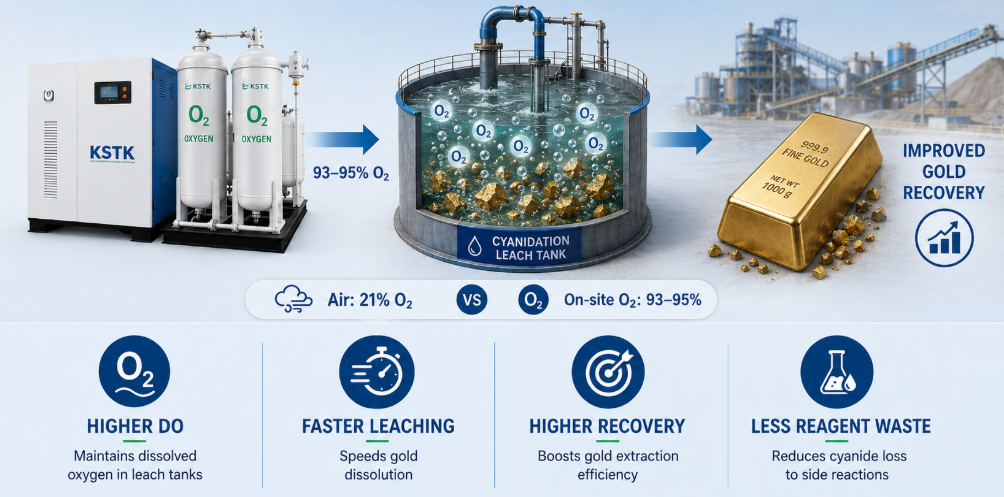

The transition from using ambient air (which is only 21% oxygen) to high-purity oxygen (93% or higher) from onsite Oxygen generators has revolutionized the industry. High-purity oxygen increases the kinetic rate of the reaction, meaning more gold can be processed in less time. This efficiency is a cornerstone of modern mining and mineral processing applications, where maximizing throughput is the key to profitability.
Different types of gold mining utilize various leaching methods such as Carbon-in-Leach (CIL), Carbon-in-Pulp (CIP), and Heap Leaching, all of which require precise oxygen management to optimize gold recovery.
The choice of leaching process often depends on the grade of the ore and the mineralogical composition. In Carbon-in-Pulp (CIP) processes, the ore is crushed and ground before being leached in a series of agitated tanks. In Carbon-in-Leach (CIL), the leaching and adsorption of gold onto activated carbon happen simultaneously. Both methods benefit immensely from oxygen sparging, which keeps the dissolved oxygen levels at the optimal 15 to 25 ppm (parts per million) required for rapid kinetics.
Method | Description | Oxygen Requirement |
Carbon-in-Pulp (CIP) | Leaching followed by carbon adsorption in separate stages. | High; required for tank agitation and oxidation. |
Carbon-in-Leach (CIL) | Simultaneous leaching and adsorption. | High; critical for maintaining reaction speed. |
Heap Leaching | Sprinkling cyanide over a pile of crushed ore. | Moderate; often uses ambient air but benefits from enrichment. |
Vat Leaching | Flooding large vats with solution. | Moderate to High; depends on ore density. |
In addition to these standard methods, refractory ores—those where gold is encased in sulfide minerals—require even more intensive oxidation. These ores often undergo bio-oxidation or pressure oxidation before cyanidation. In these pre-treatment phases, oxygen is used to break down the mineral matrix. The versatility of modern gas generation systems allows them to be adapted for any of these industrial applications, providing the specific flow rates needed for different stages of the circuit.
Oxygen supply in remote gold mining areas is a significant logistical challenge characterized by high transportation costs and the risk of supply chain disruptions, making onsite generation the only viable path to autonomy.
Many of the world's most productive gold mines are located in high-altitude regions, deserts, or arctic environments. In these locations, the infrastructure for transporting liquid oxygen (LOX) via cryogenic tankers is often non-existent or prohibitively expensive. The "delivered cost" of oxygen in a remote jungle or mountain range can be five to ten times higher than in an industrial hub. Moreover, weather conditions or political instability can cut off supply lines, potentially forcing a mine to halt production.
The implementation of onsite Oxygen generators eliminates the "middleman" of the gas utility company. Instead of relying on a constant stream of trucks, the mine only needs a reliable power source to extract oxygen from the surrounding air. This shift to autonomy provides a level of operational security that is priceless for large-scale investments. It allows mine managers to forecast their costs with greater accuracy, as the primary expense is electricity rather than fluctuating commodity gas prices.
Furthermore, the environmental impact of trucking liquid oxygen over thousands of kilometers is substantial. By generating gas at the point of use, mines significantly reduce their carbon footprint. This aligns with the industry's broader goal of "Green Mining," where reducing transport-related emissions is a top priority. Onsite systems ensure that the mine remains productive even when the outside world is inaccessible.
Tailor-made oxygen generators for gold mining are engineered to meet the specific purity, pressure, and volume requirements of a mine’s unique metallurgical profile and environmental conditions.
No two gold mines are exactly alike. The altitude, temperature, and ore chemistry vary from one site to another, which means a "one-size-fits-all" oxygen solution is rarely efficient. A mine located at 4,000 meters above sea level requires a different compressor configuration than one at sea level due to the lower atmospheric pressure. Custom-engineered Oxygen generators take these variables into account, ensuring that the system delivers the exact tonnage of oxygen required per day without wasting energy.
Altitude Compensation: Adjusting the intake air filtration and compression to handle thin air.
Purity Optimization: Most mining applications require 93% to 95% purity; tailoring the molecular sieve ensures this is met efficiently.
Scalability: Systems can be designed to grow as the mine expands its processing capacity.
Advanced VPSA Oxygen Generator technology is often preferred for large-scale mining because of its lower energy consumption compared to traditional PSA systems. By tailoring the vacuum and pressure cycles to the specific needs of the cyanidation circuit, these units provide a stable and reliable source of gas that directly correlates to higher gold yields.
A frame-built oxygen solution provides a modular and robust structural framework that allows for rapid installation and protection of the internal components in harsh mining environments.
In the rugged world of mining, equipment cannot be fragile. A frame-built design means that the entire oxygen generation plant—including the air compressors, dryers, air tanks, and the generator itself—is mounted on a heavy-duty steel skid or within a reinforced frame. This "plug-and-play" approach allows the equipment to be tested at the factory and then shipped as a complete unit. Once it arrives at the mine site, it only requires connection to power and the gas distribution manifold.
The frame serves multiple purposes beyond just structural support. It provides a organized layout that facilitates easier maintenance access. Technicians can reach valves, sensors, and filters without navigating a cramped or disorganized site. In outdoor installations, these frames can be fitted with protective canopies or side panels to shield the machinery from direct sunlight, heavy rain, or abrasive dust, which are common in open-pit mining operations.
This modularity is particularly beneficial for mines with a limited "Life of Mine" (LOM). If a particular deposit is exhausted after five years, a frame-built oxygen system can be disconnected and transported to a new site with minimal effort. This portability ensures that the capital investment in Oxygen generators remains a long-term asset for the mining company, rather than a sunken cost in permanent infrastructure.
The advanced control system of a modern oxygen generator utilizes Programmable Logic Controllers (PLC) and HMI touchscreens to automate the entire gas production process, ensuring consistent purity and safety.
Automation is the heart of a reliable oxygen plant. An advanced control system monitors hundreds of data points every second, from the temperature of the incoming air to the pressure levels within the molecular sieve beds. By using sophisticated algorithms, the system can automatically adjust the cycle times of the PSA or VPSA process to maintain the desired oxygen purity even if the ambient conditions change. This reduces the need for constant human supervision, allowing mine personnel to focus on the leaching process itself.
Unattended Operation: The system starts, stops, and adjusts itself based on demand.
Safety Interlocks: Automatic shutdown in case of over-pressure or low purity levels.
Energy Efficiency: The system can "idle" or reduce output during low-demand periods to save power.
These control systems often feature remote monitoring capabilities. Through an internet or satellite connection, engineers at a central headquarters can log into the oxygen plant's interface to perform diagnostics or software updates. This is a game-changer for remote mines where specialized gas engineers may not be onsite. The integration of these digital tools ensures that the Oxygen generators operate at peak performance 24/7.
An advanced flow control system uses precision mass flow controllers and modulating valves to deliver the exact amount of oxygen required by the leach tanks, preventing gas wastage and optimizing chemical reactions.
In gold leaching, more oxygen is not always better; the right amount of oxygen is what matters. An advanced flow control system ensures that the oxygen produced is delivered at a consistent pressure and volume to the sparging systems at the bottom of the tanks. By integrating with the mine's overall Distributed Control System (DCS), the oxygen flow can be increased or decreased based on real-time readings from dissolved oxygen (DO) sensors in the slurry.
This precision is vital for minimizing "gas slip," where oxygen bubbles reach the surface without reacting with the slurry. Efficient flow control ensures that the oxygen has maximum contact time with the gold-bearing ore. Furthermore, a stable flow prevents pressure surges that could damage the delicate diffusers or sparging nozzles used to inject the gas. By maintaining a steady state, the entire cyanidation circuit becomes more predictable and easier to manage.
The hardware involved in these systems includes high-quality regulators and flow meters that are calibrated for the specific density of 93% oxygen. Because oxygen is a highly reactive gas, all components in the flow control path must be "oxygen clean" and made from compatible materials like stainless steel or specific copper alloys to prevent ignition risks. This level of engineering ensures that the Oxygen generators are not just efficient, but also inherently safe.
Heavy duty construction involves the use of industrial-grade steel, high-performance coatings, and vibration-resistant components to ensure the oxygen generator survives the punishing conditions of a mine site.
Mining environments are notoriously tough on machinery. Constant vibration from nearby crushers, corrosive chemicals in the air, and extreme temperature fluctuations can cause standard industrial equipment to fail prematurely. Heavy-duty construction starts with the selection of materials. For example, the pressure vessels that hold the zeolite molecular sieve are built to rigorous ASME or equivalent standards, ensuring they can handle millions of pressure cycles without fatigue.
Corrosion Resistance: Special epoxy coatings to protect against acid mist or salty air.
Vibration Dampening: Reinforced mounting points for compressors and motors.
Dust Filtration: Multi-stage, heavy-duty air intake filters to keep fine silica dust out of the internal machinery.
Every bolt, seal, and electrical connection is chosen for its durability. In many cases, the electrical enclosures are rated NEMA 4 or IP65 to protect against water ingress and dust. This "over-engineering" is necessary because downtime in a gold mine can cost tens of thousands of dollars per hour. A robustly built oxygen system provides the peace of mind that the gas supply will remain steady regardless of how harsh the external environment becomes.
Process monitoring provides real-time visibility into the health and output of the oxygen plant, allowing for predictive maintenance and ensuring the leaching circuit receives gas of the correct specification.
Effective process monitoring goes beyond simple pressure gauges. Modern systems incorporate high-purity oxygen analyzers that provide a continuous readout of the gas quality. If the purity drops below the setpoint—perhaps due to a filter clog or a valve issue—the system alerts the operators immediately. This prevents "bad gas" from entering the leach tanks, which could otherwise lead to a drop in gold recovery rates.
Data logging is another crucial aspect of monitoring. By recording historical data on power consumption, flow rates, and temperatures, the system can identify trends that indicate a component is nearing the end of its life. This shift from reactive to predictive maintenance allows mine owners to schedule repairs during planned shutdowns rather than reacting to emergency failures. It ensures that the Oxygen generators are always ready to support the mine's production targets.
Moreover, process monitoring data can be used to optimize the entire gold recovery circuit. By correlating oxygen consumption with gold yield, metallurgists can fine-tune the leaching parameters to find the "sweet spot" of maximum recovery at minimum cost. This data-driven approach is what separates world-class mining operations from the rest, turning the oxygen plant into a source of valuable operational intelligence.
Easy transportation is achieved through containerized or skid-mounted designs that adhere to international shipping standards, allowing oxygen generators to be moved via truck, rail, or sea to any global location.
The logistical journey of a piece of mining equipment is often long and complex. To facilitate this, many Oxygen generators are built directly inside standard ISO shipping containers (20-foot or 40-foot). This design serves as both the shipping crate and the final housing for the machine. Because it fits the standard dimensions of global logistics, it can be loaded onto any container ship or flatbed truck without the need for "oversized load" permits, which can be expensive and slow.
Once the container arrives at the port nearest to the mine, it can be easily transferred to a rail car or a heavy-duty truck for the final leg of the journey over rugged terrain. The internal components are securely braced within the container to prevent damage during transit. This portability also simplifies the "decommissioning" phase of a mine; the entire oxygen plant can be packed up and shipped to a new project across the globe just as easily as it arrived.
For extremely remote sites accessible only by air, modular systems can be broken down into smaller, lightweight components that fit into cargo planes or even heavy-lift helicopters. This flexibility ensures that no matter how inaccessible a gold deposit might be, the benefits of onsite oxygen generation are still within reach. By solving the transport puzzle, these systems truly provide the autonomy that modern mines require.
