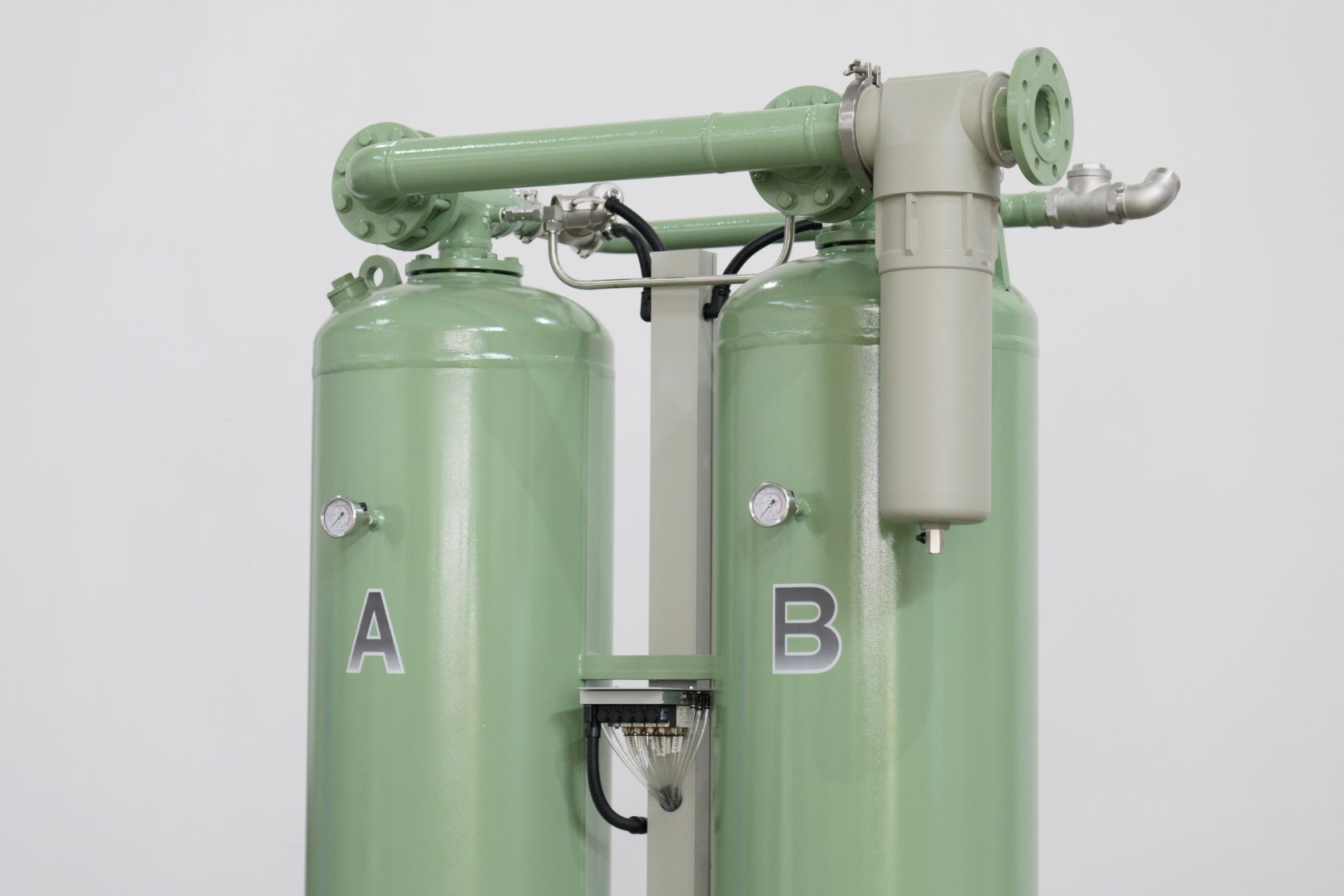

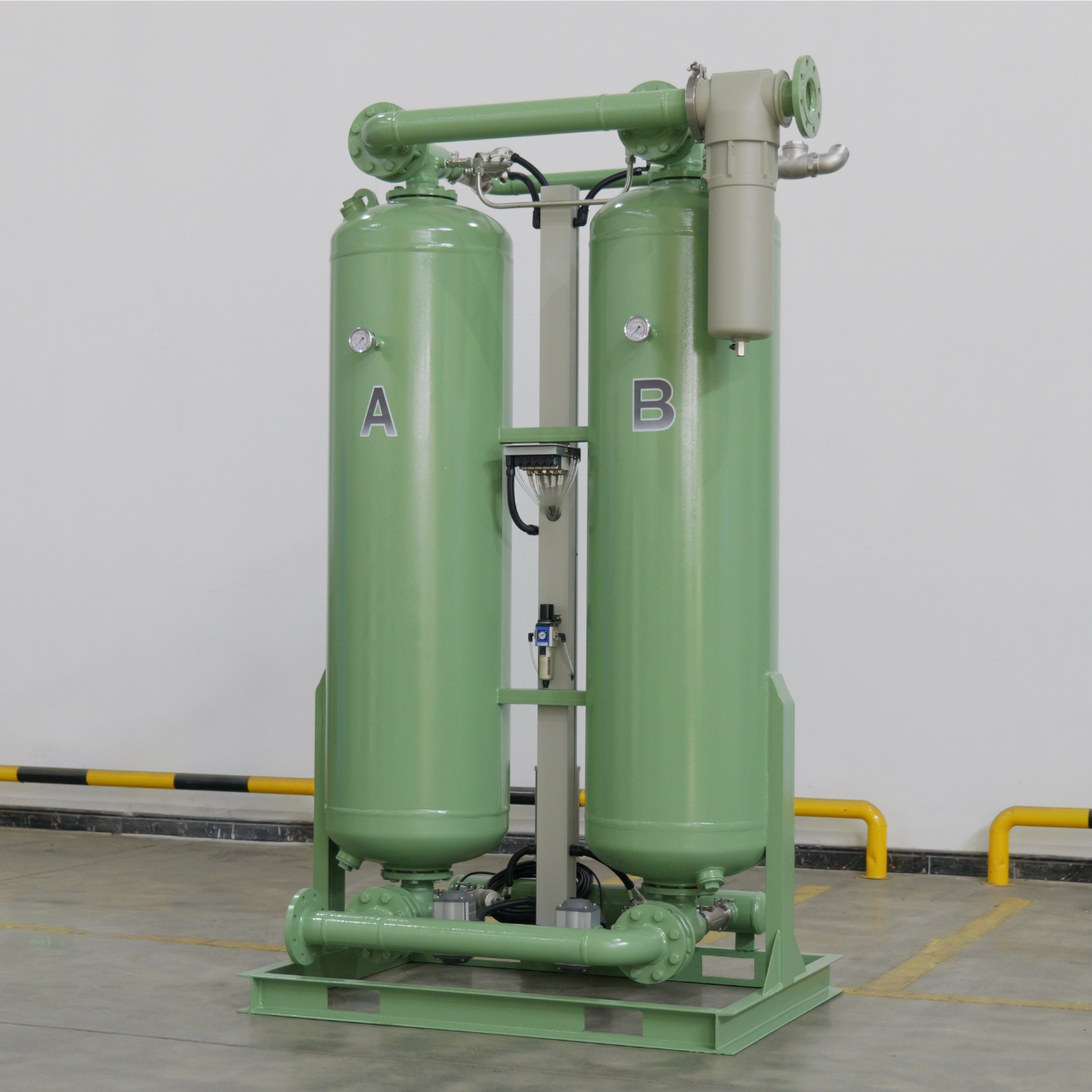

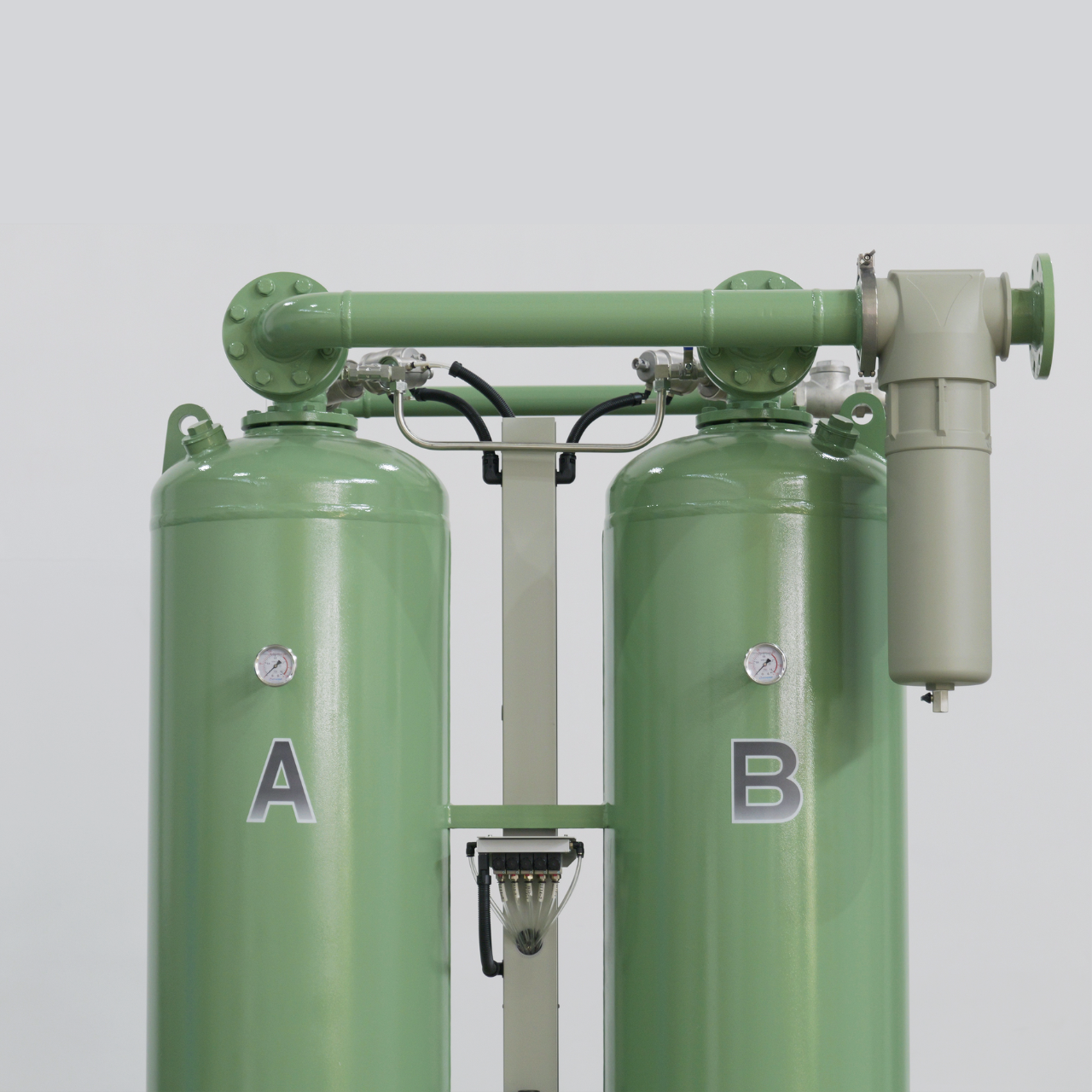

Zero Energy Consumption Desiccant Air Dryer

Our zero-energy consumption adsorption air dryer is an innovative solution designed to provide clean, dry compressed air without consuming any compressed air or electricity. Unlike conventional dryers, this system operates passively-eliminating purge loss and power usage-significantly reducing operational costs over time. Utilizing advanced adsorption technology and high-quality absorbents, it efficiently removes water vapor from compressed air, maintaining a consistently low dew point and protecting downstream equipment from moisture-related issues such as corrosion, clogging, or system failures. Ideal for industries that demand high air quality and cost efficiency-such as electronics, pharmaceuticals, food processing, and precision manufacturing.
Availability:
INQUIRY

Benefits
▔▔▔

Product Characteristic
▔▔▔
Premium Valve System

High-quality industrial valves ensure precise and reliable switching during adsorption and regeneration cycles, maintaining stable dew point performance and long-term operational reliability

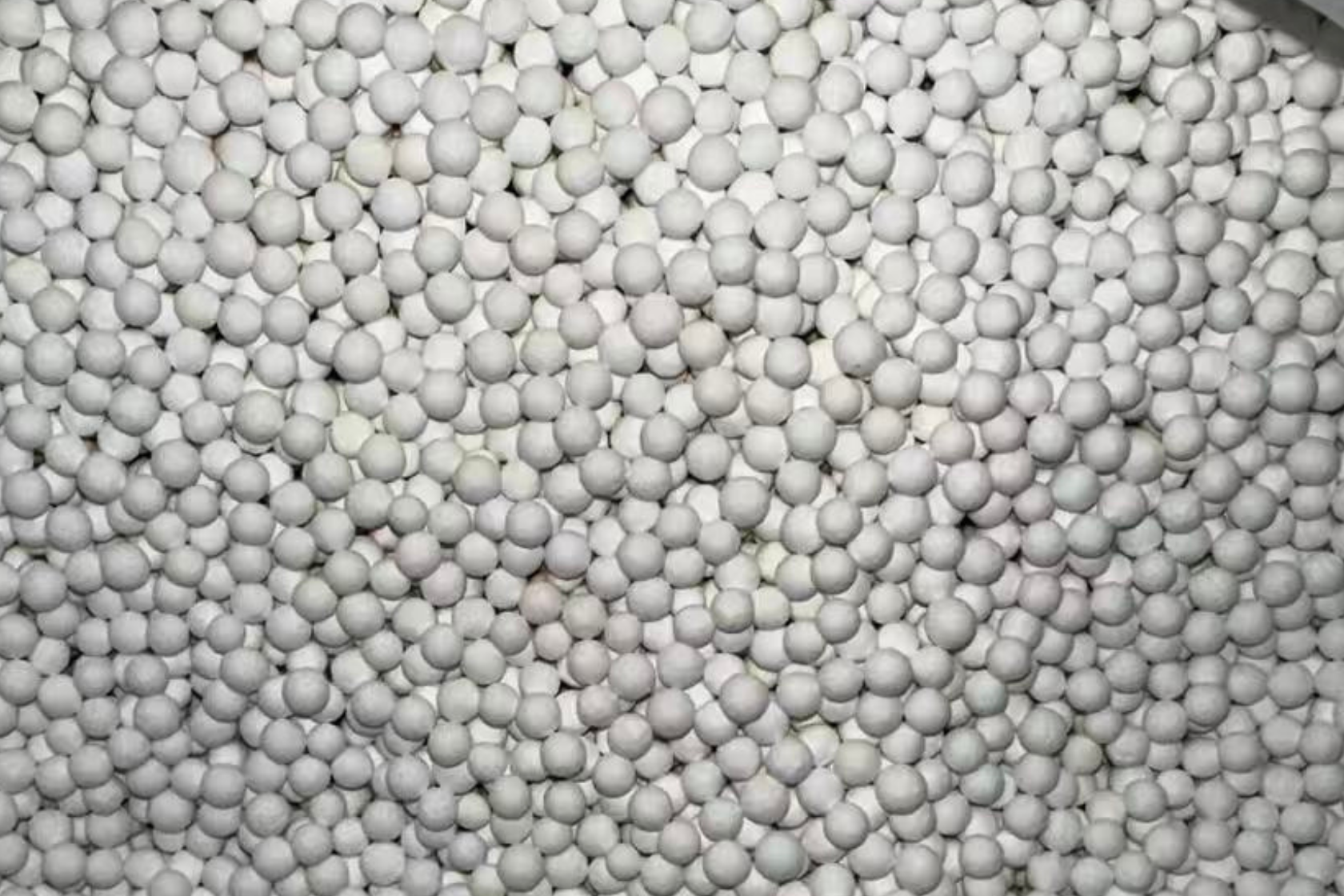

High-Performance Desiccant
Premium-grade desiccant materials deliver high moisture adsorption capacity, excellent regeneration efficiency, and extended service life, ensuring consistent drying performance over long-term operation

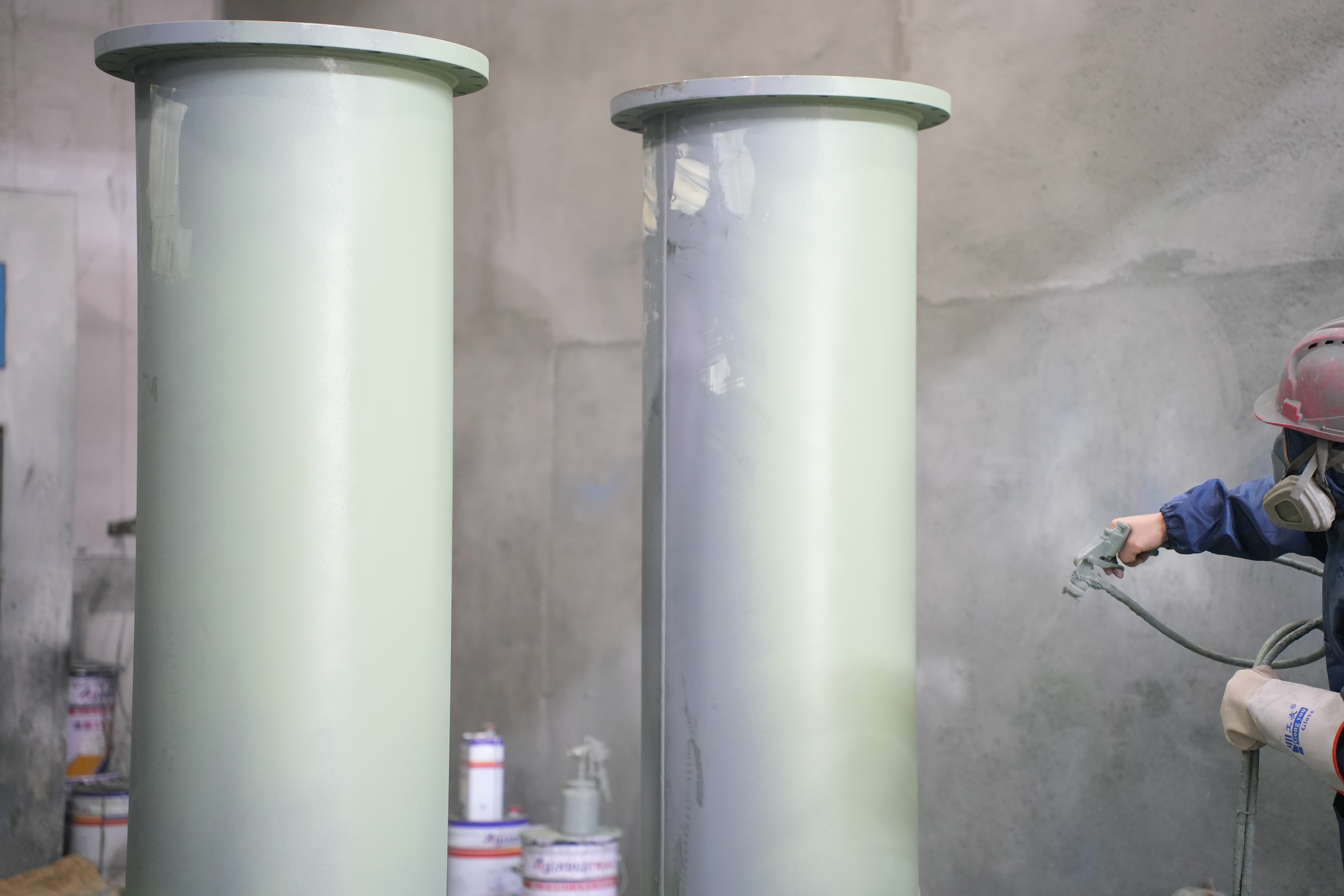

ASME-Certified Pressure Vessel
The pressure vessel is designed and manufactured in full compliance with ASME standards, ensuring superior structural integrity, pressure safety, and long-term reliability under continuous industrial operation

Application
▔▔▔
Electronics Manufacturing
Prevents condensation in PCB production and coating lines

Pharmaceutical Production
Provides dry air for tablet coating and cleanroom environments.

Instrument Calibration Facilities
Requires ultra-dry air for precision devices
FAQ
▔▔▔
  • Why choose an desiccant air dryer?
    加 Created with Sketch.
    形状 Created with Sketch.
    When user have higher dew point requirements that a standalone refrigerated air dryer can not satisfy, a desiccant air dryer is required to achieving a lower dew point.
  • How do I select the appropriate adsorption air dryer for my system?
    加 Created with Sketch.
    形状 Created with Sketch.
    Selection should be based on the specifications and flow capacity of the air compressor. Feel free to contact our technical department for dryer recommendation and selections at support@kstkmanufacturing.com
  • How often does desiccant need replacement?
    加 Created with Sketch.
    形状 Created with Sketch.
    Typically every 8~10 years depending on ambient air quality.
  • What are the daily maintenance tasks for a adsorption air dryer?
    加 Created with Sketch.
    形状 Created with Sketch.
    Periodically replace the internal desiccant and check the operating condition of the solenoid valves.
  • How often should the absorbent in a adsorption air dryer be replaced?
    加 Created with Sketch.
    形状 Created with Sketch.
    Replacement is recommended every 2 years under normal operating conditions.
  • Can KSTK Desiccant Air Dryer operate continuously?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, KSTK Desiccant Air Dryer is designed to operate 24/7.
  • Can a desiccant air dryer operate in extreme temperature environments?
    加 Created with Sketch.
    形状 Created with Sketch.
    No. The ambient operating temperature must be below 45°C.
  • Does KSTK Desiccant Air Dryer require external heating for regeneration?
    加 Created with Sketch.
    形状 Created with Sketch.
    No, KSTK Zero Energy Consumption Desiccant Air Dryer uses exhuasts from Nitrogen/Oxygen Generator to regenerate.


Technical Specification

▔▔▔

Working Pressure

4～10Bar

Dew Point

≤-40°C

Inlet Air Temperature

≤50°C

Air Consumption

0

Power Consumption

0

Note: Specific requirements can be made upon request


Product Specification

▔▔▔

Model

Capacity (Nm³/min)

Connection Diameter (DN)

Connection Type

Dimension (mm)

Weight (kg)

KRD-015F

1.5

20

Thread Connection

650*450*640

42

KRD-026F

2.6

25

700*450*850

64

KRD-039F

3.9

40

800*500*875

73

KRD-070F

7.0

40

880*550*1125

95

KRD-085F

8.5

40

1050*700*1040

160

KRD-108F

10.8

50

1140*700*1095

190

KRD-140F

14

65

1140*700*1095

190

KRD-170F

17

65

1260*700*1320

220

KRD-220F

22

65

Flange Connection

1400*750*1350

350

KRD-250F

25

80

1400*750*1350

350

KRD-290F

29

80

1800*900*1600

720

KRD-326F

32.6

80

1800*900*1600

720

KRD-365F

36.5

100

1950*1050*1730

800

KRD-420F

42

100

1950*1050*1730

800

KRD-460F

46

100

1950*1050*1730

800

KRD-550F

55

125

1950*1050*1730

800

KRD-600F

60

125

2400*1200*2215

1120

KRD-650F

65

125

2400*1200*2215

1120

KRD-700F

70

125

2400*1200*2215

1120
