The landscape of modern laboratory environments is shifting away from traditional gas supply methods toward more sustainable, reliable, and cost-effective solutions. In the realm of analytical chemistry, the demand for high-purity nitrogen is constant, driven by the critical need for precision in instruments like Mass Spectrometers and Gas Chromatographs. As laboratories scale their operations, the logistical headaches and safety risks associated with high-pressure gas cylinders are becoming increasingly untenable, leading to a massive surge in the adoption of the nitrogen generator.
A nitrogen generator is an on-site gas generation system that extracts nitrogen from the surrounding compressed air using membrane or Pressure Swing Adsorption (PSA) technology, providing a continuous, high-purity nitrogen gas generator supply tailored to specific analytical requirements. By eliminating the need for external deliveries, an industrial nitrogen generator offers a safer, more efficient, and more economical alternative to liquid dewars or gas cylinders.
This transition to on-site generation represents a significant leap in laboratory autonomy. Instead of being beholden to supply chain fluctuations or the physical labor of moving heavy cylinders, chemists can now rely on a "plug-and-play" solution that integrates directly into their workflow. In this guide, we will explore the mechanics, benefits, and diverse applications of these systems, providing a roadmap for lab managers looking to optimize their gas infrastructure.
What is a Nitrogen Generator?
Key components of a nitrogen generator system include
Benefits of On-Site Nitrogen Generation
Applications in Analytical Chemistry
Choosing the Right Nitrogen Generator
Future Trends in Nitrogen Generation Technology
Conclusion and Next Steps
A nitrogen generator is a sophisticated piece of industrial equipment designed to separate nitrogen molecules from the ambient air to produce a concentrated stream of high-purity nitrogen gas.
The atmosphere we breathe is composed of approximately 78% nitrogen, 21% oxygen, and small amounts of argon, carbon dioxide, and water vapor. A nitrogen generator works by taking in compressed air and stripping away the unwanted molecules—primarily oxygen and moisture—to deliver nitrogen at purity levels ranging from 95% to 99.999%. This process occurs continuously, ensuring that analytical instruments have a steady "always-on" supply of gas without the pressure fluctuations common in nearly empty cylinders.
Technically, most systems utilize one of two primary separation methods: Pressure Swing Adsorption (PSA) or Membrane Separation. PSA technology uses a Carbon Molecular Sieve (CMS) to trap oxygen molecules under high pressure while allowing nitrogen to pass through. Conversely, membrane technology uses hollow-fiber tubes that allow oxygen and water vapor to "permeate" through the walls faster than nitrogen, effectively filtering the stream. Both methods are highly efficient and can be scaled to meet the specific flow and purity demands of a high-throughput laboratory.
Incorporating an industrial nitrogen generator into a facility is not just about gas production; it is about process control. These units are engineered to handle the rigorous demands of 24/7 operation, featuring automated start-stop cycles and purity monitoring systems. Whether it is a small benchtop nitrogen gas generator for a single LC-MS or a large-scale industrial unit serving an entire research wing, the fundamental goal remains the same: providing high-quality gas at the point of use.
The key components of a nitrogen generator system include the air compressor, pre-filtration modules, the separation engine (CMS or Membrane), a nitrogen buffer tank, and the integrated control and monitoring system.
At the heart of any nitrogen generator is the air intake and compression stage. Since the generator needs a pressurized source of air to perform the separation, a high-quality air compressor is essential. This compressor must be equipped with dryers and oil-water separators to ensure the "feed air" is clean. If oil or moisture reaches the separation media, it can foul the Carbon Molecular Sieve or the membrane, leading to a permanent loss in efficiency and purity.

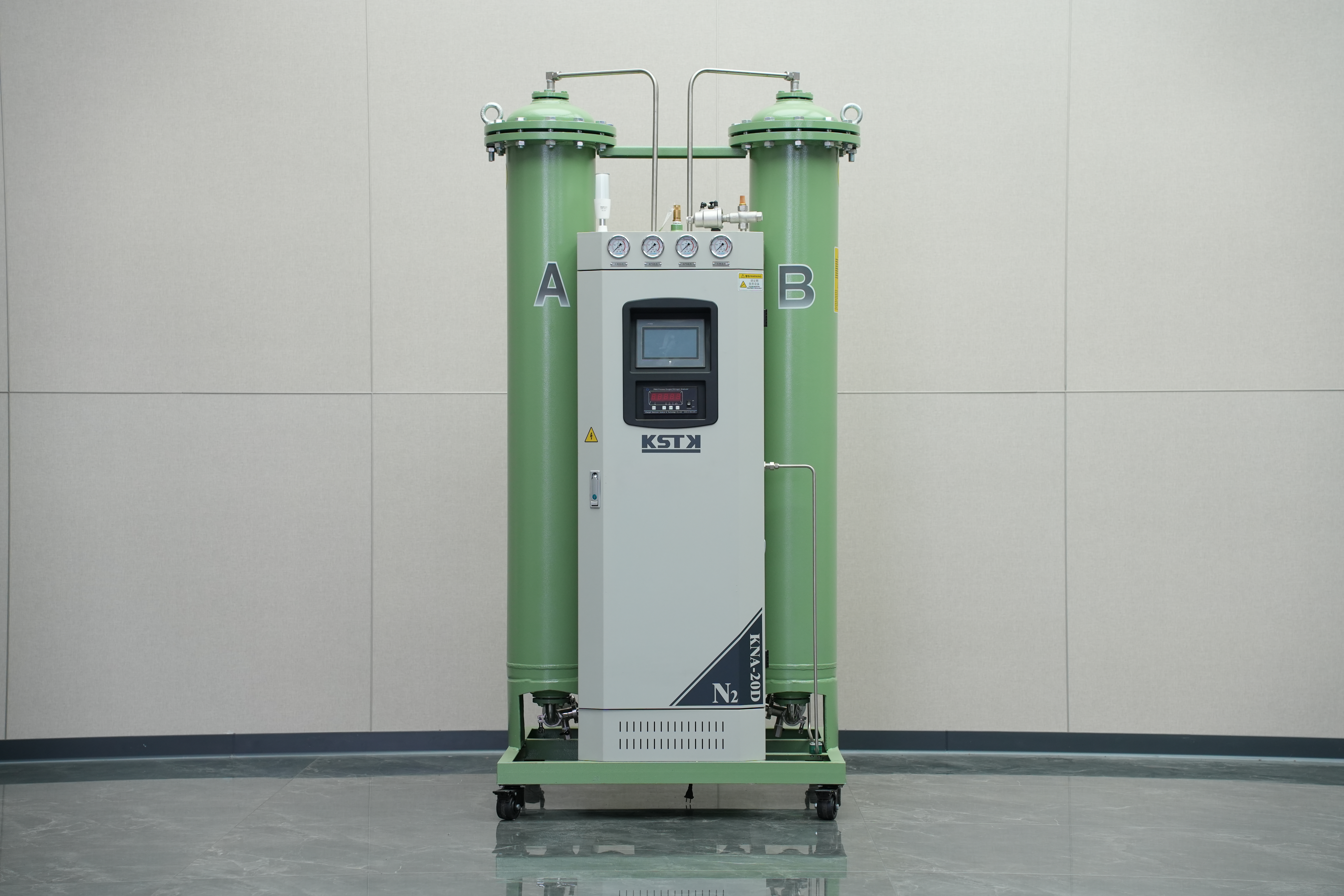

The separation chamber is where the actual "magic" of the nitrogen gas generator happens. In a PSA system, this consists of two pressure vessels filled with CMS. While one vessel is in the adsorption phase (trapping oxygen), the other is in the regeneration phase (releasing the trapped oxygen back into the atmosphere). This "swinging" between vessels creates a continuous flow. In a membrane system, the component is a bundle of specialized fibers. A nitrogen buffer tank is usually placed after this stage to smooth out any pressure pulses and provide a reservoir for peak demand periods.
Finally, modern industrial nitrogen generator units are governed by sophisticated PLCs (Programmable Logic Controllers). These controllers monitor oxygen sensors in real-time to ensure the gas meets the programmed purity specifications. If the purity drops below the required threshold, the system can automatically divert the gas or trigger an alarm. This level of oversight is crucial for analytical chemistry, where even a slight increase in oxygen content can lead to baseline noise or oxidative damage to expensive instrument columns.
Component | Function | Importance in Analytical Chemistry |
Air Compressor | Provides the raw materials (compressed air) | Ensures consistent flow and pressure |
Pre-Filtration | Removes oil, water, and dust | Protects the purity of the final gas stream |
Carbon Molecular Sieve | Separates N2 from O2 (PSA Method) | Achieves ultra-high purity levels (up to 99.999%) |
Oxygen Sensor | Measures residual O2 levels | Guarantees data integrity for sensitive tests |
Buffer Tank | Stores pressurized nitrogen | Prevents pressure drops during high-demand cycles |
The benefits of on-site nitrogen generation include significant cost savings, enhanced laboratory safety, improved environmental sustainability, and a guaranteed, uninterrupted gas supply that eliminates reliance on third-party vendors.
From a financial perspective, an industrial nitrogen generator typically pays for itself within 12 to 24 months. When using gas cylinders, laboratories pay not just for the gas, but for cylinder rental, delivery fees, hazardous material surcharges, and the administrative costs of processing purchase orders. By generating nitrogen on-site, the only ongoing cost is the electricity required to run the compressor and occasional filter changes. This transforms a variable, ever-increasing operational expense into a predictable, low-cost utility.
Safety is another paramount benefit. High-pressure cylinders and liquid nitrogen dewars pose significant risks, including physical injury from heavy lifting and the potential for rapid asphyxiation if a tank leaks in a confined space. A nitrogen gas generator stores very little gas at any given time and operates at much lower pressures. By removing the need to move heavy tanks through the lab and eliminating the risk of large-scale leaks, the facility becomes a much safer environment for researchers and staff.
Furthermore, the environmental impact of a nitrogen generator is much lower than traditional methods. Think about the carbon footprint associated with a heavy truck delivering gas cylinders every week. By producing gas right at the point of use, you eliminate the transport emissions entirely. Additionally, on-site generation is more efficient; cylinders are often returned with 10% to 20% of the gas still inside because the pressure has dropped too low for the instrument, representing a significant waste that is solved by a dedicated generator.
Applications in analytical chemistry for a nitrogen generator primarily include Liquid Chromatography-Mass Spectrometry (LC-MS), Gas Chromatography (GC), Sample Evaporation, and Inductively Coupled Plasma (ICP) spectroscopy.
In LC-MS, nitrogen is used as a nebulizer gas to help convert the liquid sample into a fine spray of droplets. It is also used as a drying gas to evaporate the solvent, leaving the ions behind for analysis. Because LC-MS instruments require high flow rates of nitrogen—often up to 30 or 40 liters per minute—using cylinders is practically impossible, as a single tank might only last a few hours. A dedicated nitrogen gas generator is the industry standard for LC-MS, providing the high-volume, consistent flow required for long-running analytical sequences.
Gas Chromatography (GC) also relies heavily on nitrogen, often as a carrier gas or a make-up gas. In these applications, the purity of the industrial nitrogen generator output is critical. Any traces of oxygen or moisture can cause "column bleed," reduce the sensitivity of the detector, and shorten the lifespan of the GC column itself. High-purity PSA generators are often preferred here because they can achieve the 99.999% purity levels required to maintain a clean baseline and protect sensitive Flame Ionization Detectors (FID) or Electron Capture Detectors (ECD).
Beyond these primary instruments, nitrogen is used extensively in sample preparation. Techniques like Nitrogen Blowdown Evaporation use a stream of nitrogen to rapidly remove solvents from samples before analysis. This process requires large volumes of dry gas to prevent sample oxidation. By using a nitrogen generator, labs can run multiple evaporators simultaneously without worrying about running out of gas mid-cycle. This level of reliability is essential for high-throughput contract laboratories and forensic facilities.
LC-MS/MS: Nebulization, desolvation, and collision cell gas.
Gas Chromatography: Carrier gas, make-up gas, and detector support.
Sample Prep: Solvent evaporation and "blanketing" to prevent oxidation.
Storage: Purging glove boxes and dry boxes for moisture-sensitive chemicals.
Choosing the right nitrogen generator requires a thorough evaluation of your instrument's flow rate requirements, the necessary gas purity level, the available laboratory space, and the long-term maintenance costs of the system.
The first step in selection is determining the "Gas Specification." Different analytical instruments have vastly different needs. For example, an LC-MS might require 98% purity at a high flow rate, while a GC carrier gas might require 99.999% purity at a very low flow rate. You must match the nitrogen gas generator to the most demanding requirement of your lab. It is often helpful to choose a generator with a slightly higher capacity than currently needed to allow for the addition of more instruments in the future.
Space and infrastructure are also vital considerations. Some industrial nitrogen generator models are designed to fit under a standard lab bench, while others are large, skid-mounted units that require a dedicated utility room. You must also decide between a generator with an internal compressor or one that connects to your facility's existing house air. Internal compressors offer a "standalone" solution, but they can be noisier and require more maintenance than units that utilize a central air supply.
Finally, consider the total cost of ownership. While the initial purchase price is important, the reliability of the manufacturer and the ease of service are what determine long-term satisfaction. Look for systems that offer user-replaceable filters and long-service intervals. A high-quality nitrogen generator should provide a decade or more of reliable service if properly maintained. Checking the manufacturer’s reputation in the analytical chemistry community is a great way to ensure you are investing in a system that won't let you down during a critical analysis.
Future trends in nitrogen generation technology are focused on increased energy efficiency, the integration of IoT for remote monitoring, and the development of more compact, "smart" systems that adapt to real-time laboratory demand.
One of the most exciting developments is the rise of "Smart" nitrogen gas generator units. These systems use variable-speed drive (VSD) compressors and advanced logic to adjust gas production based on the actual consumption of the connected instruments. If the LC-MS is in standby mode, the generator slows down, saving energy and reducing wear and tear. This is a significant improvement over older industrial nitrogen generator designs that ran at full capacity regardless of the actual load, leading to wasted electricity and shorter maintenance cycles.
IoT integration is also becoming standard. Modern generators can now be connected to the laboratory's network, allowing lab managers to monitor gas purity, flow rates, and system health from a smartphone or desktop. These systems can send proactive alerts when a filter needs changing or if a potential fault is detected, preventing unexpected downtime. In an era where data integrity and "uptime" are everything, this level of connectivity provides peace of mind and simplifies the management of complex lab environments.
Lastly, there is a push toward miniaturization and noise reduction. As lab space becomes increasingly expensive, manufacturers are finding ways to pack more separation power into smaller footprints. New materials for membranes and Carbon Molecular Sieves are allowing for higher efficiency in smaller volumes. Simultaneously, advanced soundproofing and vibration-damping technologies are making it possible to place a high-capacity nitrogen generator directly next to the analytical instrument without disturbing the scientists working nearby.
The transition from gas cylinders to an on-site nitrogen generator is one of the most impactful upgrades an analytical laboratory can make. By taking control of your gas supply, you lock in long-term cost savings, drastically improve the safety of your workspace, and ensure that your sensitive analytical instruments are always supplied with the high-purity nitrogen they require. Whether you are running a single GC or a massive high-throughput LC-MS facility, there is a nitrogen gas generator solution designed to fit your needs.
As you look toward the future, the importance of reliability and sustainability will only continue to grow. An industrial nitrogen generator is not just a piece of equipment; it is a strategic investment in the efficiency and autonomy of your scientific operations. By eliminating the logistical hurdles of the past, you free up your team to focus on what matters most: the science.
