1. What the Diffuser Does

The adsorption tower is a key component of PSA oxygen generators, VPSA oxygen systems, and nitrogen generators. Even airflow distribution is essential for efficient tower operation. It directly affects separation efficiency, product purity, and molecular sieve service life.

A small but critical component called the flow divider diffuser is installed at the air inlet of the adsorption tower. Its job is simple: it takes the fast incoming jet of compressed air and distributes it evenly across the entire tower. When the airflow is properly distributed, the molecular sieve bed can be used more effectively, helping the system maintain stable separation efficiency and product purity.

However, not every adsorption tower is equipped with a properly designed diffuser. Some systems rely on a simple perforated plate to distribute incoming air. When airflow is uneven, it can create air channeling, increase molecular sieve dust, and cause fluctuations in product purity. Over time, these problems can reduce separation efficiency, shorten molecular sieve service life, and increase operating and maintenance costs.

In this article, we’ll explain how uneven airflow affects PSA and VPSA performance, how a properly designed diffuser improves airflow distribution, and what sets KSTK’s diffuser design apart.

2. What Goes Wrong Without a Diffuser?

Skip the diffuser, and the incoming compressed air can form a narrow, high-speed jet. It slams into the molecular sieve bed and creates three lasting problems:

● Air takes shortcuts through the bed. The gas rushes through only a few paths instead of spreading out. Most of the molecular sieve sits idle. The bed cannot perform the separation efficiently, so oxygen or nitrogen purity keeps swinging and often fails to meet spec.

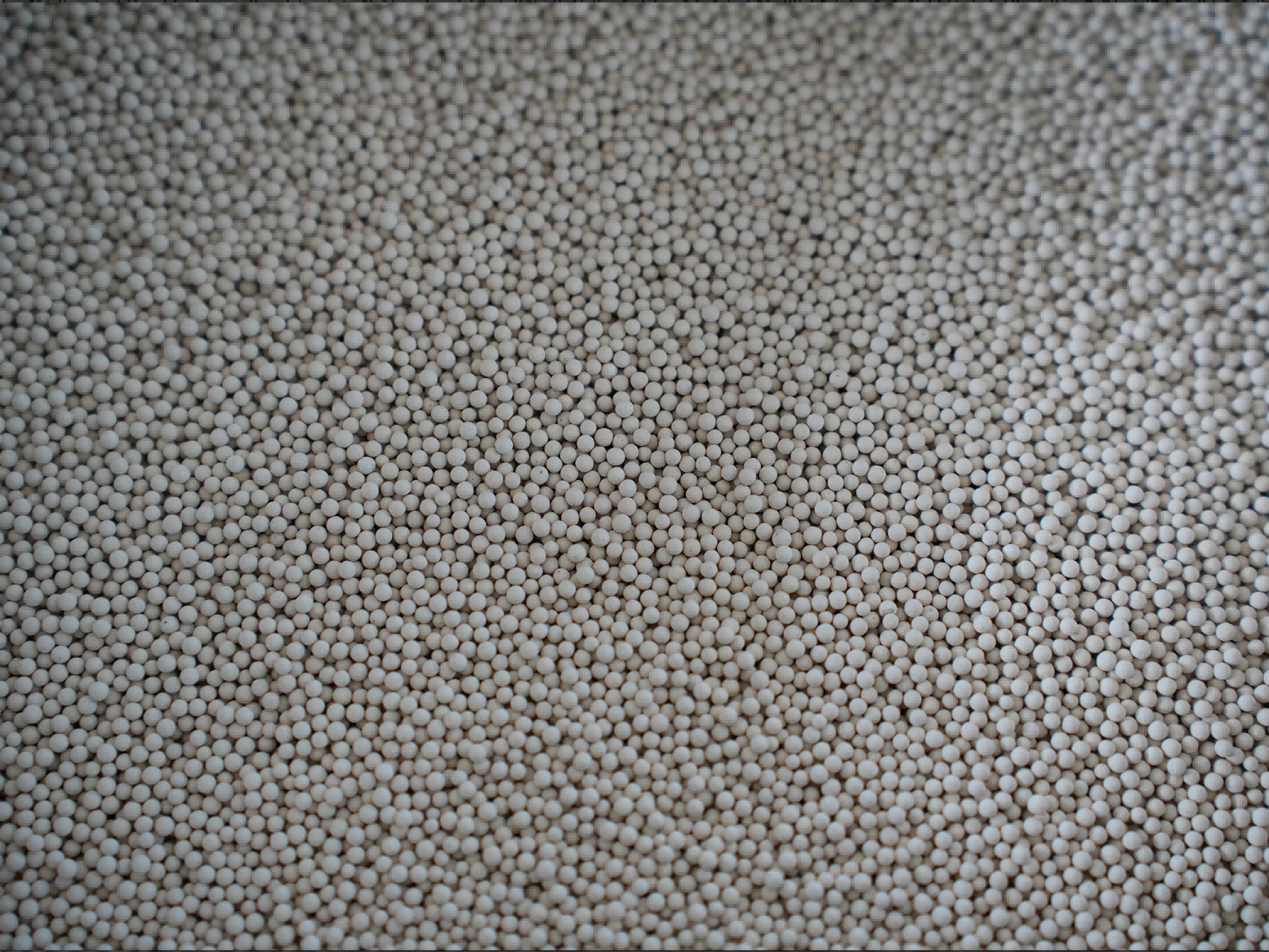

●The molecular sieve can gradually break down into fine particles. Fast air repeatedly impacts the sieve particles. They grind together and break apart. Dust migrates downstream. It can clog filters and damage downstream valves. Over time, this can shorten the service life of lithium-based molecular sieves, leading to more frequent replacement and higher operating costs.

● The molecular sieve bed can collapse. PSA and VPSA units cycle between high and low pressure constantly. A concentrated jet repeatedly disturbs the molecular sieve bed. The packing loosens, voids form, and the bed collapses. Separation performance drops even further.

A simple single-layer baffle or basic perforated plate cannot spread airflow evenly, especially in large VPSA oxygen systems. KSTK built its multi-stage diffuser to fix these exact problems, drawing on thousands of field projects.

3. How the Diffuser Works

The KSTK diffuser is mounted directly above the air inlet at the bottom of the tower. It has four main parts: a reinforced base, a central dividing column, side dividing columns, and multi-layer baffles. Here’s how it transforms a high-speed jet into a gentle, evenly distributed airflow.

Step 1: Slow the air down.

Process gas flows upward from the bottom pipe into the reinforced base. The cavity catches the jet and absorbs its energy. The airflow slows down before reaching the molecular sieve bed.

Step 2: Split the stream.

The central column spreads the single stream outward in all directions. Side columns then split it again into many smaller streams.

Most diffusers use a single-stage design. KSTK uses multiple stages to further divide and slow the airflow. More columns and layers create smaller, slower streams.

Step 3: Spread it evenly.

These gentle streams pass through the gaps between the baffles. They spread across the entire tower cross-section and rise through the molecular sieve bed at a uniform, controlled velocity.

The goal is simple: maintain uniform airflow across the entire tower, minimize jet impact, and create smooth, stable flow through the molecular sieve bed.

4. What KSTK’s Diffuser Does for You

● Better use of the molecular sieve, more stable purity.

KSTK’s multi-stage diffuser design is based on experience from thousands of field projects. It distributes airflow across the entire molecular sieve bed instead of concentrating it in the center. With the same amount of adsorbent, the system can achieve and maintain its target purity, even through repeated pressure cycles. This is especially important for large VPSA oxygen systems used in aquaculture and glass manufacturing.

● Longer molecular sieve service life.

The diffuser reduces the direct impact of high-velocity airflow on the molecular sieve. This helps reduce particle-to-particle friction and pulverization. Over time, this can extend the service life of lithium-based molecular sieves and reduce the frequency of replacement, lowering total operating costs.

● Designed for repeated pressure cycles.

Every KSTK diffuser is designed to withstand repeated pressure changes. It helps maintain stable airflow during rapid pressure swings and reduces movement of the molecular sieve bed. The result is smoother and more reliable operation.

● Less dust and fewer downstream problems.

Even, controlled airflow helps reduce the amount of molecular sieve dust carried out of the tower. This keeps fine filters, switching valves, and pipelines cleaner, reducing blockages, wear, and maintenance needs.

5. How KSTK Designs Its Diffusers

● Optimized flow area.

We simulate the airflow path to ensure the diffuser has a larger open area than the inlet pipe. This helps keep pressure drop low, so the compressor or vacuum pump does not waste energy overcoming unnecessary resistance.

● Sized for your equipment.

We design each diffuser based on your actual operating conditions. Gas flow, tower diameter, and working pressure determine the number of dividing columns and the spacing between them.

For large containerized oxygen stations, we use reinforced multi-stage diffusers to maintain even airflow across the entire tower section.

● Factory-tested and installation support.

Every diffuser undergoes dimensional inspection and weld testing before leaving our factory.

We also provide detailed installation instructions, including proper leveling. Even a slight tilt can affect airflow distribution.

Each component is reinforced to remain stable through repeated pressure cycles.

6. Conclusion

You cannot see the flow divider diffuser from outside the tower, but it plays a key role in how the adsorption bed performs. Uneven airflow can lead to unstable purity, molecular sieve damage, and shorter sieve life. In many cases, the problem is not the sieve itself, but how the airflow moves through the bed.

KSTK designs and builds PSA and VPSA gas equipment, along with the internal components that support reliable operation. KSTK designs its diffusers using experience from thousands of field projects and CFD analysis. The diffuser distributes incoming air evenly across the tower. This helps the molecular sieve bed work efficiently and maintain stable performance.

Building a new system or upgrading an existing tower? KSTK can design and manufacture a diffuser based on your specific operating conditions. Contact our engineering team for a free parameter check and quotation.
