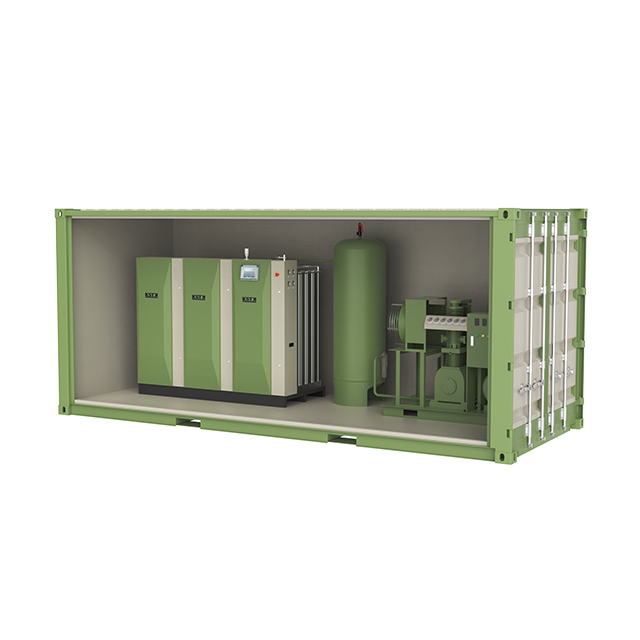

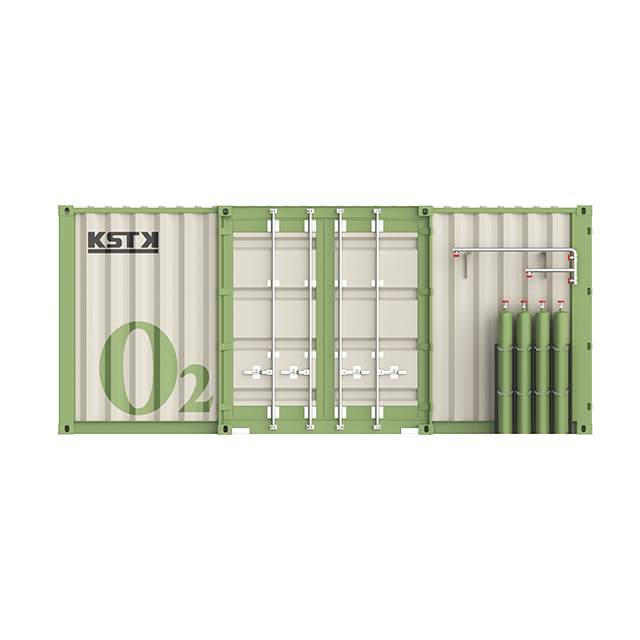

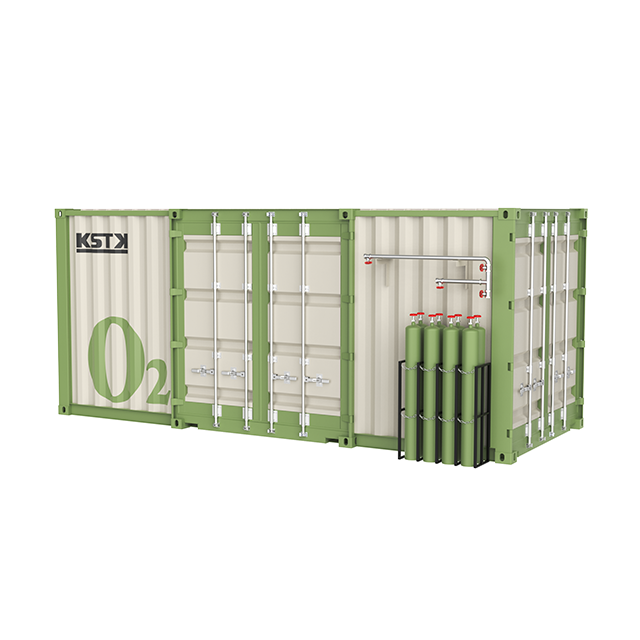

Containerized Oxygen Generation Station

KSTK’s Oxygen Station is a containerized oxygen generation system designed to meet the diverse oxygen requirements of medical, industrial, and other applications. At its core is an highly efficient PSA Oxygen Generator, which ensures the stable and reliable supply of high-quality oxygen. Depending on the specific end-user requirements, the station can be equipped with suitable oxygen purfiers to deliver up to 99.5% pure oxygen, or integrated with a pressurized bottling system to meet oxygen cylinder filling needs. This all-in-one solution not only guarantees the stability and reliability of the oxygen supply but also offers exceptional mobility and ease of integration thanks to its compact containerized design. It is the ideal choice for various oxygen-demanding environments. Whether used directly on production lines or as an oxygen cylinder filling system, KSTK’s Oxygen Station meets the stringent quality requirements for high-purity oxygen.


Availability:



INQUIRY

Benefits

▔▔▔

A true plug-and-play turnkey solution—fully pre-assembled and rigorously tested at the factory before shipment. Simply connect to a power source on-site and the system is ready to operate. No complex installation or additional infrastructure required.

Simplicity
Engineered for reliable performance in ambient temperatures from -20°C to 40°C. The container is weatherproof, fully insulated, ventilated, and climate-controlled, ensuring stable operation in high-altitude, cold, humid, hot or dusty environments.

Adaptability
A compact, all-in-one design that houses all components within a standardized container—eliminating the need for a dedicated machine room and preserving valuable indoor space. Easily transportable by truck for flexible, on-demand deployment.

Mobility
Equipped with a 7-inch touchscreen and a user-friendly HMI, featuring intelligent functions such as remote control and monitoring, multi-language and status display. Capable of fully automated, 24/7 operation with no on-site operator required.

Intelligence
Compared to conventional gas supply methods like liquid gas, bottled gas, or cryogenic systems, KSTK’s containerized on-site gas generation significantly lowers operating costs. It eliminates expenses related to cylinder rental, batch transportation, and storage warehouses.

Economical
KSTK’s proprietary structural design and specially engineered adsorbents deliver 5–15% higher efficiency than our market alternatives. Two energy-saving standby modes allow users to optimize settings for maximum operational efficiency.

Efficiency

Product Characteristic

▔▔▔

Intelligent Alarm System

A dual-warning system combining audible alarms and flashing indicators enables rapid detection of equipment anomalies, ensuring continuous and safe operation for the equipment.

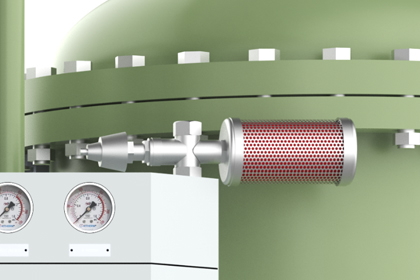

Automatic Venting System

Our automatic venting system expels unqualified gas and redirects purified gas once purity levels are met, ensuring uninterrupted, reliable gas supply for clients.

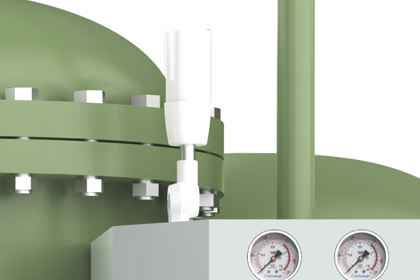

Reliable Valves

Our pneumatic valves are made from premium 304 stainless steel, engineered for high pressure and corrosion resistance, delivering over 2 million cycles of reliable performance.

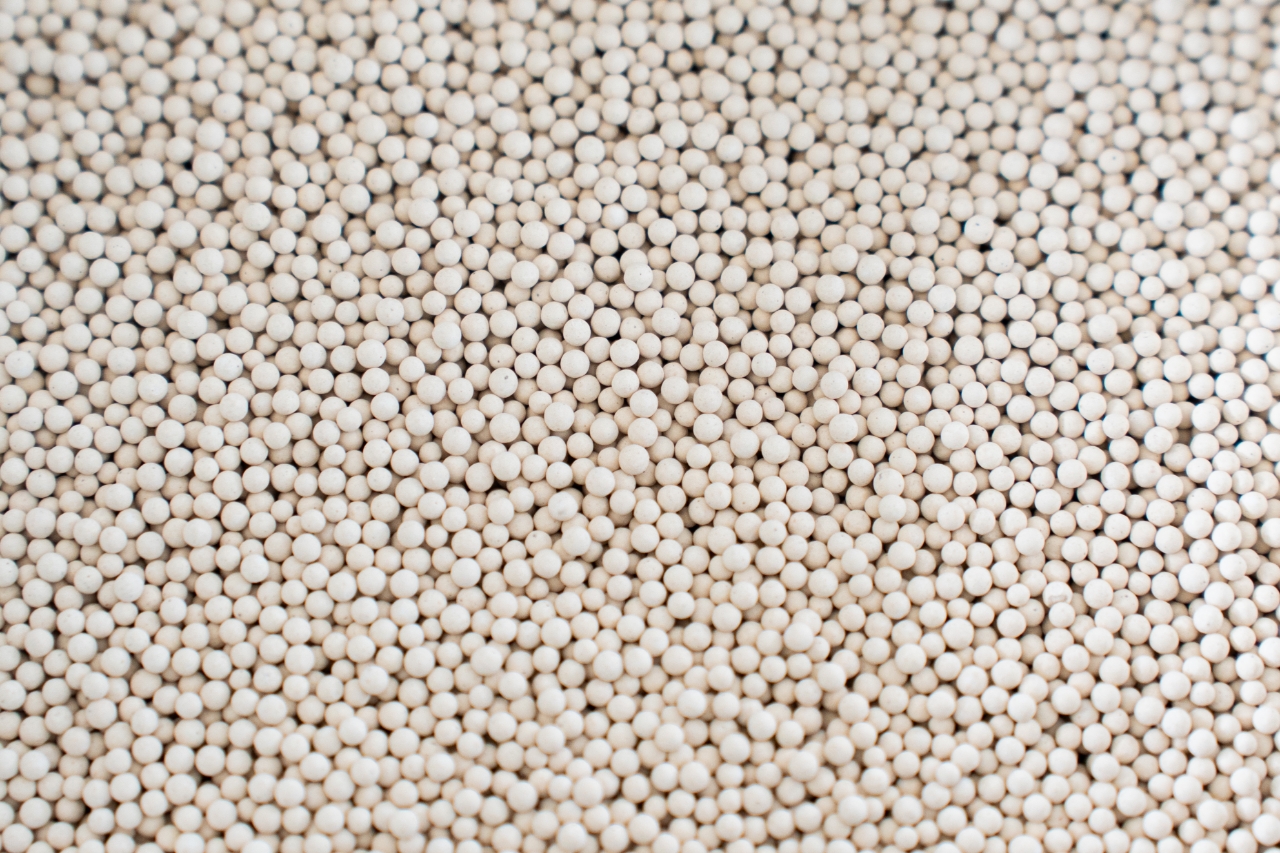

Premium Absorbents

Our custom-engineered molecular sieves offer superior adsorption function and great packing density, delivering higher efficiency, longer lifespan, and unmatched purity and stability.

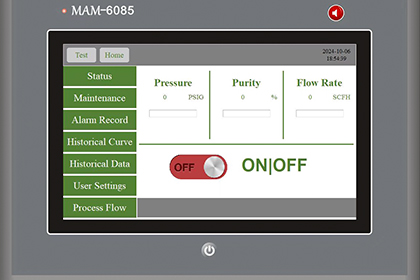

Multi-Function PLC

Our advanced PLC features an intuitive interface with seamless connectivity (RS485 & Ethernet), along with remote control, monitoring capabilities, and multi-status, multilingual display.

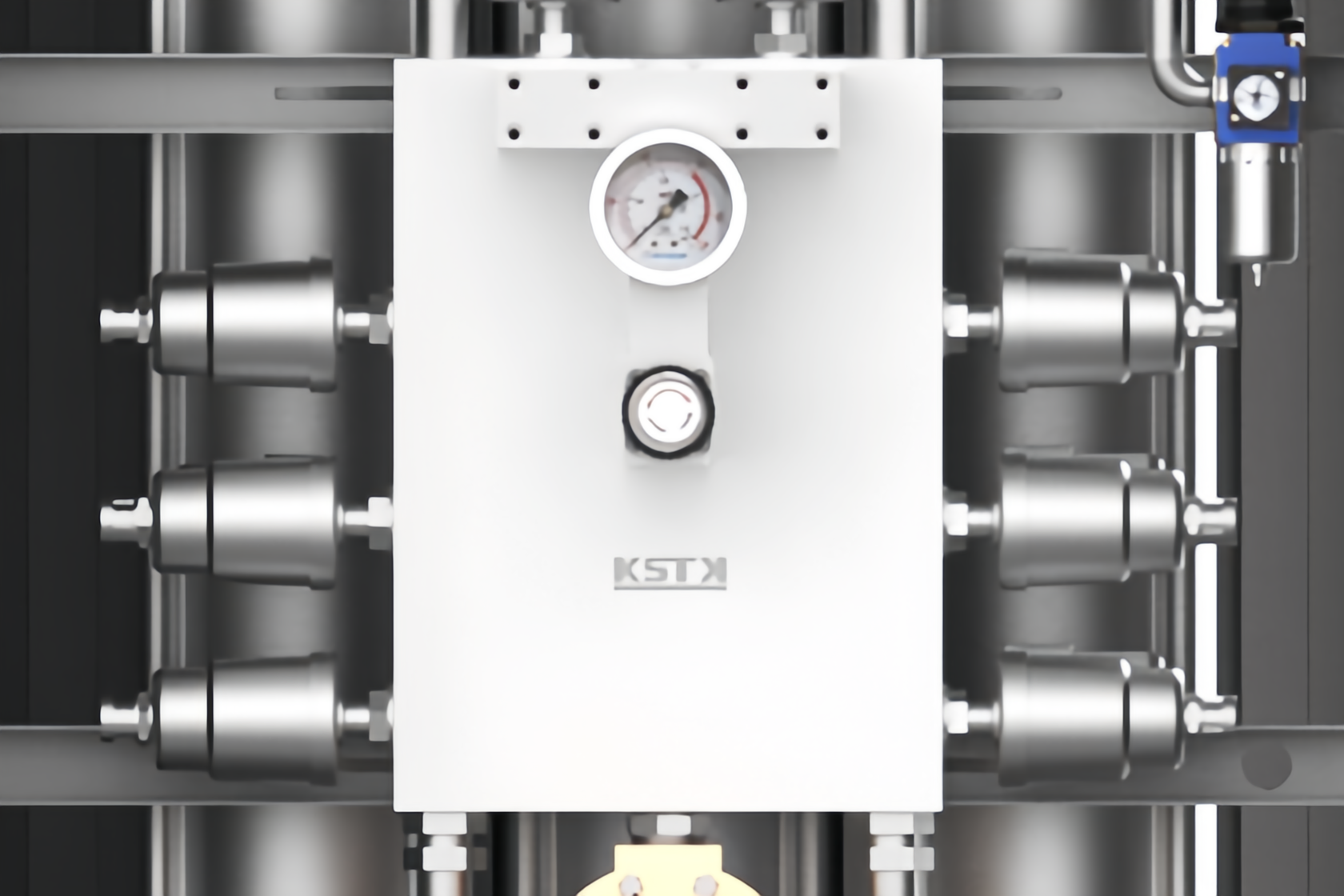

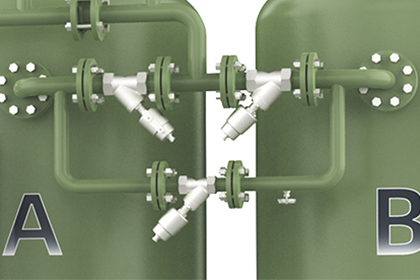

Patented Valve Manifold Design

Our patented modular valve manifold uses its unit structure design to enhance system efficiency, minimize leakage risks, and simplify maintenance, ensuring optimal operational stability.

FAQ

▔▔▔

Why choose a containerized oxygen station?

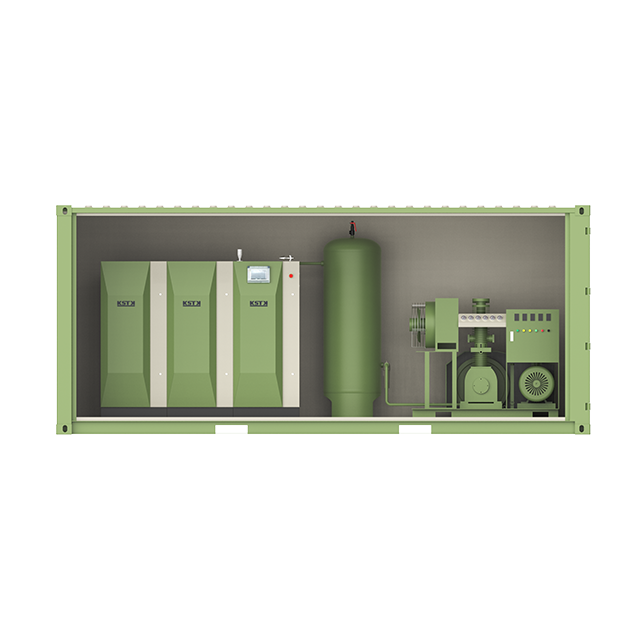

The KSTK containerized oxygen generation system is a fully integrated, plug-and-play solution housed in a standard ISO container. Designed for mobility, durability, and efficiency, it includes air compressors, purification units, PSA generators, intelligent control systems, and optional purification or boosting modules—providing reliable on-site gas generation anywhere, anytime.
Are special permits required for international transportation of containerized equipment?

Standard ISO containers do not require special permits. Custom containers may be subject to specific shipping company requirements.
Can the containerized system be customized?

Yes, KSTK offers fully customizable container solutions, including different sized container options and adding additional features such as side doors, air coolers, heaters, surveillance cameras, smoke detectors, lights, and more.
Is there an additional cost for transporting customized containers?

Standard containers can be shipped via container vessels. Customized containers usually require bulk cargo shipping, which may incur additional charges depending on the carrier.

Related Products

OxyVance™ Large-Scale VPSA Oxygen Generator

Microfine Nano-bubble Oxygenation System

Combined Oxygen Generator

Combined Modular Oxygen Generator

Oxygen Purifier

Modular Oxygen Generator

Oxygen Generator

Experience Excellence with KSTK Now

We look forward to working with you to create a better future together.

Contact Us

Oxygen Purity	93±2% (up to 99.5% with oxygen purifier)
Oxygen Flow Rate	1～600Nm³/hr
Oxygen Dew Point	-60~-40℃
Oxygen Pressure	1~5Bar(up to 200 bar with oxygen booster)
Inlet Pressure	6~8Bar
Inlet Temperature	20~35℃
Voltage & Frequency	220V/50~60Hz
Cylinder Filling Capacity(40L Cylinder)	1～250 Cylinders Per Day

Model	Air to O2 Ratio (Nm³/hr)		Inlet & Outlet Size（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	Oxygen Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KOB-5SA	50	5	15	15	KRD-026F	Combined
KOB-8SA	80	8	20	15	KRD-026F	Combined
KOB-10SA	100	10	20	15	KRD-026F	Combined
KOB-12SA	120	12	20	15	KRD-039F	Combined
KOB-18SA	180	18	25	15	KRD-070F	Standard
KOB-20SA	200	20	25	15	KRD-070F	Standard
KOB-25SA	250	25	32	15	KRD-070F	Standard
KOB-30SA	320	32	32	15	KRD-085F	Standard
KOB-40SA	400	40	40	15	KRD-108F	Standard
KOB-50SA	500	50	40	15	KRD-140F	Standard
KOB-60SA	600	60	50	20	KRD-170F	Standard
KOB-80SA	800	80	50	20	KRD-220F	Standard
KOB-100SA	1000	100	65	20	KRD-250F	Standard
KOB-120SA	1200	120	65	25	KRD-290F	Standard
KOB-160SA	1600	160	80	25	KRD-365F	Standard
KOB-200SA	2000	200	80	40	KRD-420F	Standard
KOB-240SA	2400	240	100	40	KRD-500F	Standard
KOB-300SA	3000	300	100	50	KRD-650F	Standard
