Containerized Nitrogen Generation Station

Containerized Nitrogen Generation Station

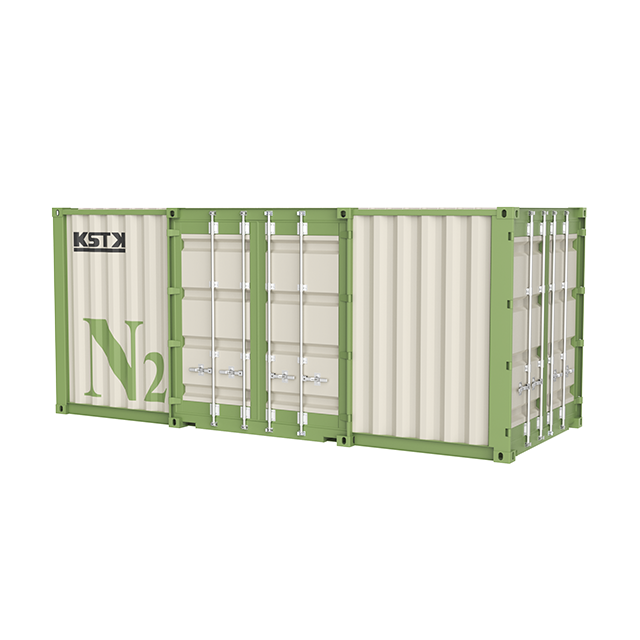

KSTK’s nitrogen Station is a containerized nitrogen generation system designed to meet the diverse oxygen requirements of industrial, and other applications. At its core is an highly efficient PSA Nitrogen Generator, which ensures the stable and reliable supply of high-quality nitrogen. Depending on the specific end-user requirements, the station can be equipped with suitable nitrogen purfiers to deliver up to 99.9999% pure nitrogen, or integrated with a nitrogen booster to meet specific nitrogen pressure requirements. This all-in-one solution not only guarantees the stability and reliability of the nitrogen supply but also offers exceptional mobility and ease of integration thanks to its compact containerized design. It is the ideal choice for various nitrogen-demanding environments. Whether used directly on production lines or for other purposes, KSTK’s Nitrogen Station meets the stringent quality requirements for high-purity nitrogen.


Availability:



INQUIRY

Benefits

▔▔▔

A true plug-and-play turnkey solution—fully pre-assembled and rigorously tested at the factory before shipment. Simply connect to a power source on-site and the system is ready to operate. No complex installation or additional infrastructure required.

Simplicity
Engineered for reliable performance in ambient temperatures from -20°C to 40°C. The container is weatherproof, fully insulated, ventilated, and climate-controlled, ensuring stable operation in high-altitude, cold, humid, hot or dusty environments.

Adaptability
A compact, all-in-one design that houses all components within a standardized container—eliminating the need for a dedicated machine room and preserving valuable indoor space. Easily transportable by truck for flexible, on-demand deployment.

Mobility
Equipped with a 7-inch touchscreen and a user-friendly HMI, featuring intelligent functions such as remote control and monitoring, multi-language and status display. Capable of fully automated, 24/7 operation with no on-site operator required.

Intelligence
Compared to conventional gas supply methods like liquid gas, bottled gas, or cryogenic systems, KSTK’s containerized on-site gas generation significantly lowers operating costs. It eliminates expenses related to cylinder rental, batch transportation, and storage warehouses.

Economical
KSTK’s proprietary structural design and specially engineered adsorbents deliver 5–15% higher efficiency than our market alternatives. Two energy-saving standby modes allow users to optimize settings for maximum operational efficiency.

Efficiency

Product Characteristic

▔▔▔

Intelligent Alarm System

A dual-warning system combining audible alarms and flashing indicators enables rapid detection of equipment anomalies, ensuring continuous and safe operation for the equipment.

Automatic Venting System

Our automatic venting system expels unqualified gas and redirects purified gas once purity levels are met, ensuring uninterrupted, reliable gas supply for clients.

Reliable Valves

Our pneumatic valves are made from premium 304 stainless steel, engineered for high pressure and corrosion resistance, delivering over 2 million cycles of reliable performance.

Premium Absorbents

Our custom-engineered molecular sieves offer superior adsorption function and great packing density, delivering higher efficiency, longer lifespan, and unmatched purity and stability.

Multi-Function PLC

Our advanced PLC features an intuitive interface with seamless connectivity (RS485 & Ethernet), along with remote control, monitoring capabilities, and multi-status, multilingual display.

Patented Valve Manifold Design

Our patented modular valve manifold uses its unit structure design to enhance system efficiency, minimize leakage risks, and simplify maintenance, ensuring optimal operational stability.

FAQ

▔▔▔

Why choose a containerized nitrogen generation station?

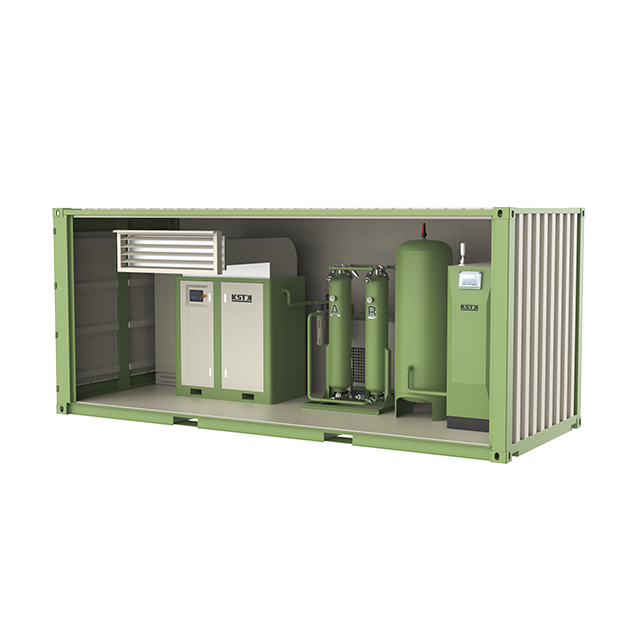

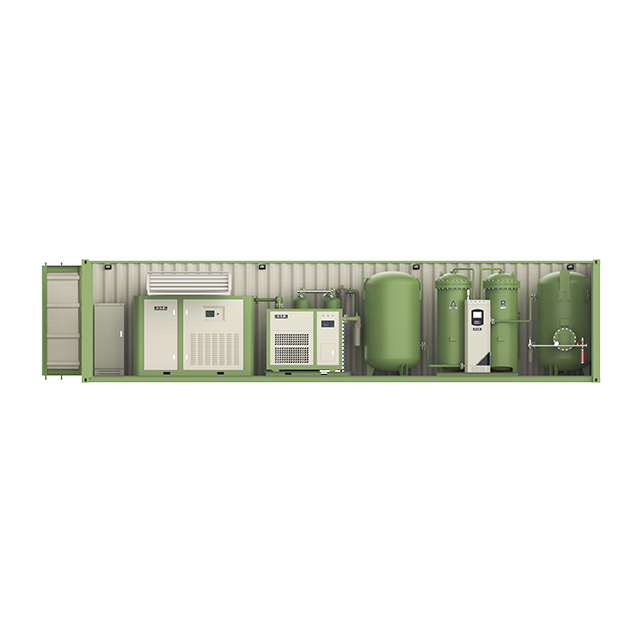

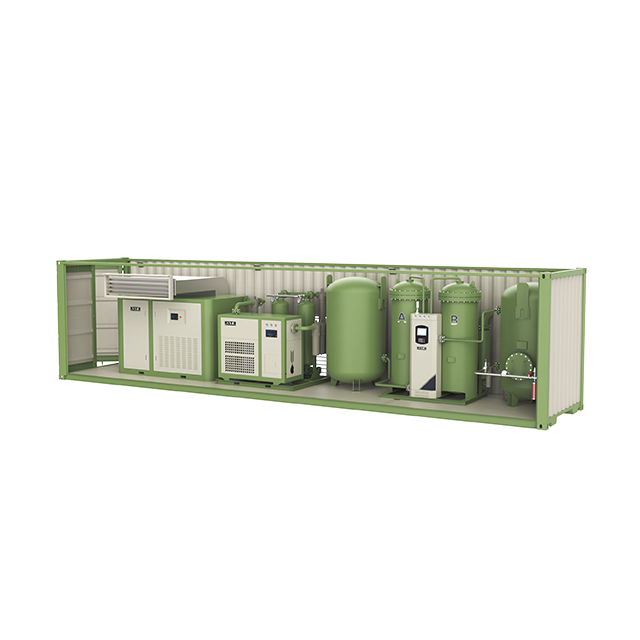

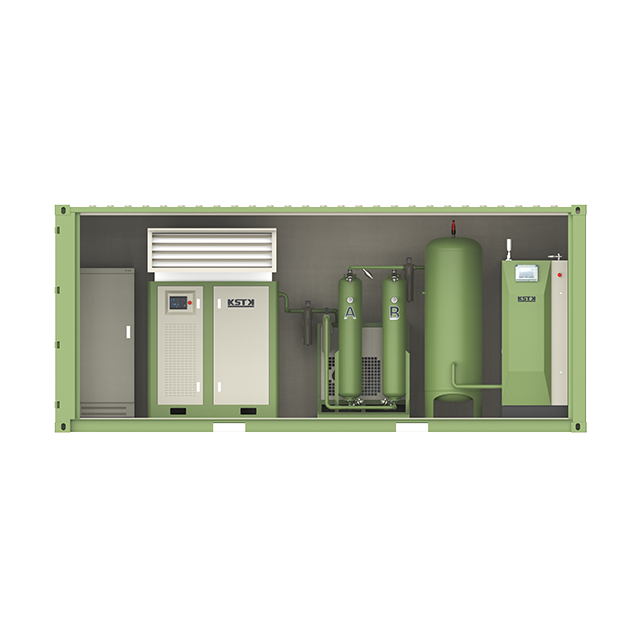

KSTK's containerized nitrogen system is a fully integrated, plug-and-play solution housed in a standard ISO container. Designed for mobility and durability, it includes compressors, air purification systems, PSA nitrogen generators, intelligent controls, and optional boosters or purifiers—delivering dependable nitrogen production anywhere, anytime
Are special permits required for international transportation?

Standard ISO containers typically do not require special permits. Custom container dimensions may be subject to shipping line regulations.
Can the containerized system be customized?

Yes. We offer tailored solutions including custom sizes, side doors, cooling units, heaters, surveillance cameras, smoke detectors, lighting systems, and more.
Is there an extra cost for transporting customized containers?

Standard units ship via container vessels. Customized containers often require bulk cargo shipping, which may incur additional fees depending on the shipping provider.

Technical Specification

▔▔▔

Nitrogen Purity	79~99.999% (up to 99.9999% with nitrogen purifier
Nitrogen Flow Rate	1～3000Nm3/h
Nitrogen Dew Point	-60~-30℃
Nitrogen Pressure	6~8Bar(up to 200 bar with nitrogen booster
Inlet Pressure	8~10Bar
Inlet Temperature	20~35℃
Voltage & Frequency	220V/50~60Hz

Note: Specific requirements can be made upon request

Product Specification

▔▔▔

KNA-SA

Purity: 99%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-10SA	22.5	10	15	15	KRD-015F	Combined
KNA-20SA	45.0	20	15	15	KRD-015F	Combined
KNA-30SA	67.5	30	20	15	KRD-026F	Combined
KNA-60SA	135	60	25	25	KRD-039F	Combined
KNA-100SA	225	100	32	25	KRD-070F	Standard
KNA-150SA	337.5	150	40	25	KRD-085F	Standard
KNA-300SA	675	300	50	40	KRD-140F	Standard
KNA-600SA	1350	600	65	50	KRD-290F	Standard
KNA-1000SA	2250	1000	100	65	KRD-460F	Standard
KNA-1500SA	3375	1500	100	65	KRD-750F	Standard

KNA-SA+

Purity: 99.5%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-10SA+	27	10	15	15	KRD-015F	Combined
KNA-20SA+	54	20	15	15	KRD-026F	Combined
KNA-30SA+	81	30	20	15	KRD-026F	Combined
KNA-60SA+	162	60	25	20	KRD-039F	Combined
KNA-100SA+	270	100	32	25	KRD-070F	Standard
KNA-150SA+	405	150	40	32	KRD-108F	Standard
KNA-300SA+	810	300	50	40	KRD-220F	Standard
KNA-600SA+	1620	600	65	50	KRD-365F	Standard
KNA-1000SA+	2700	1000	100	65	KRD-550F	Standard
KNA-1500SA+	4050	1500	125	65	KRD-800W	Standard

KNA-SB

Purity: 99.9%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-10SB	33	10	15	15	KRD-015F	Combined
KNA-20SB	66	20	15	15	KRD-026F	Combined
KNA-30SB	99	30	20	15	KRD-026F	Combined
KNA-60SB	198	60	32	20	KRD-070F	Standard
KNA-100SB	330	100	40	25	KRD-085F	Standard
KNA-150SB	495	150	40	32	KRD-140F	Standard
KNA-300SB	990	300	50	40	KRD-250F	Standard
KNA-600SB	1980	600	80	50	KRD-420F	Standard
KNA-1000SB	3300	1000	100	65	KRD-700F	Standard

KNA-SB+

Purity: 99.95%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-10SB+	37	10	15	15	KRD-015F	Combined
KNA-20SB+	74	20	20	15	KRD-026F	Combined
KNA-30SB+	111	30	20	15	KRD-039F	Combined
KNA-60SB+	222	60	25	20	KRD-070F	Standard
KNA-100SB+	370	100	40	25	KRD-108F	Standard
KNA-150SB+	555	150	50	32	KRD-140F	Standard
KNA-300SB+	1110	300	65	40	KRD-250F	Standard
KNA-600SB+	2220	600	80	50	KRD-460F	Standard
KNA-1000SB+	3700	1000	100	65	KRD-800W	Standard

KNA-SC

Purity: 99.99%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-5SC	21	5	15	15	KRD-015F	Combined
KNA-10SC	42	10	15	15	KRD-015F	Combined
KNA-20SC	84	20	20	15	KRD-026F	Combined
KNA-30SC	126	30	25	15	KRD-039F	Combined
KNA-60SC	252	60	32	20	KRD-070F	Standard
KNA-100SC	420	100	40	20	KRD-108F	Standard
KNA-150SC	630	150	50	25	KRD-170F	Standard
KNA-200SC	840	200	50	40	KRD-220F	Standard
KNA-300SC	1260	300	65	40	KRD-290F	Standard
KNA-600SC	2520	600	100	50	KRD-550F	Standard

KNA-SC+

Purity: 99.995%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-5SC+	23	5	15	15	KRD-015F	Combined
KNA-10SC+	46	10	15	15	KRD-026F	Combined
KNA-20SC+	92	20	20	15	KRD-026F	Combined
KNA-30SC+	138	30	25	15	KRD-039F	Combined
KNA-60SC+	276	60	32	20	KRD-070F	Standard
KNA-100SC+	460	100	40	20	KRD-108F	Standard
KNA-200SC+	920	200	50	40	KRD-220F	Standard
KNA-300SC+	1380	300	65	40	KRD-326F	Standard
KNA-500SC+	2300	500	100	50	KRD-500F	Standard
KNA-600SC+	2760	600	100	50	KRD-600F	Standard

KNA-SD

Purity: 99.999%

Model	Air to N₂ Ratio (Nm³)		Inlet & Outlet Dimension（DN）		Air Dryer Model	Unit Structure
Model	Air Consumption	N₂ Output	Inlet	Outlet	Air Dryer Model	Unit Structure
KNA-5SD	26	5	15	15	KRD-015F	Combined
KNA-10SD	52	10	15	15	KRD-026F	Combined
KNA-20SD	104	20	20	15	KRD-039F	Combined
KNA-30SD	156	30	25	15	KRD-039F	Combined
KNA-60SD	312	60	40	20	KRD-085F	Standard
KNA-100SD	520	100	50	20	KRD-140F	Standard
KNA-200SD	1040	200	65	40	KRD-250F	Standard
KNA-300SD	1560	300	65	40	KRD-365F	Standard
